Note and record the Coin Counter reading before beginning the test to avoid subsequent count errors.
Self-Test
Menu
(continued)
DIP Switch Test Menu
DIP SWITCH TEST
Select DIP SWITCH TEST at the Self-Test Menu. Two
8-position
DIP switch banks reside on the Sound
I/O Board. The DIP Switch Test Menu reports the positions of 16 switches in these banks.
NOTICE: Don’t change the positions of unused switches. Otherwise you may cause
unpredictable, unstable or erratic operation.
NOTICE: Switch 1 of Bank U17 (monitor resolution) must remain off. Otherwise your
VGA monitor won’t be able to lock onto game sync.
You can change DIP switch positions with power on. Set any switch. Then check the screen to verify that
the new setting is selected.
Enable your changes by
exiting the Menu System and entering the game.

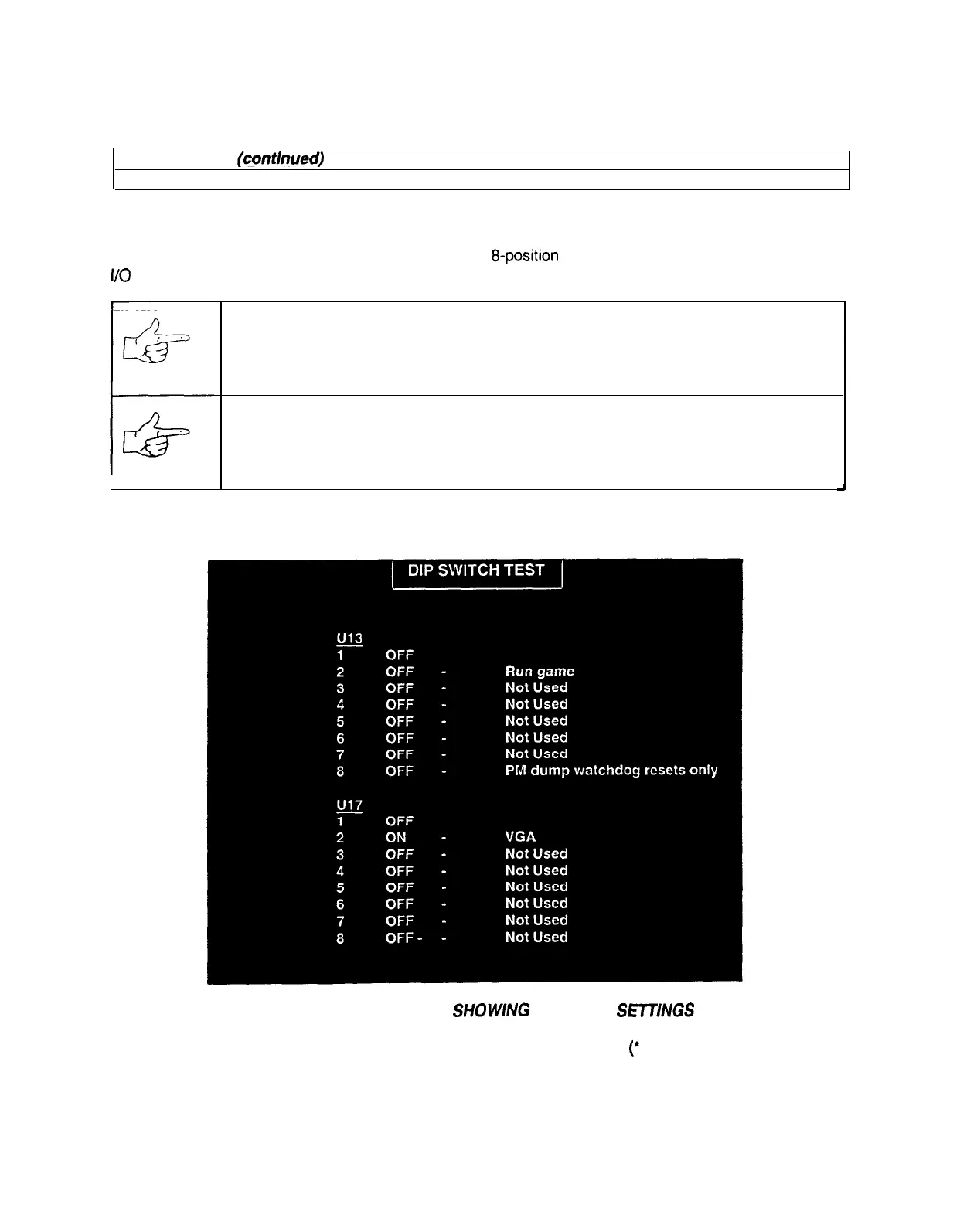

DIP-SWITCH TEST MENU, SHOWNG
DEFAULT SETTINGS
Refer to the DIP Switch Tables for assistance in choosing switch positions
(’
indicates factory defaults).
To exit the DIP Switch Test, press any game button.
5-12
