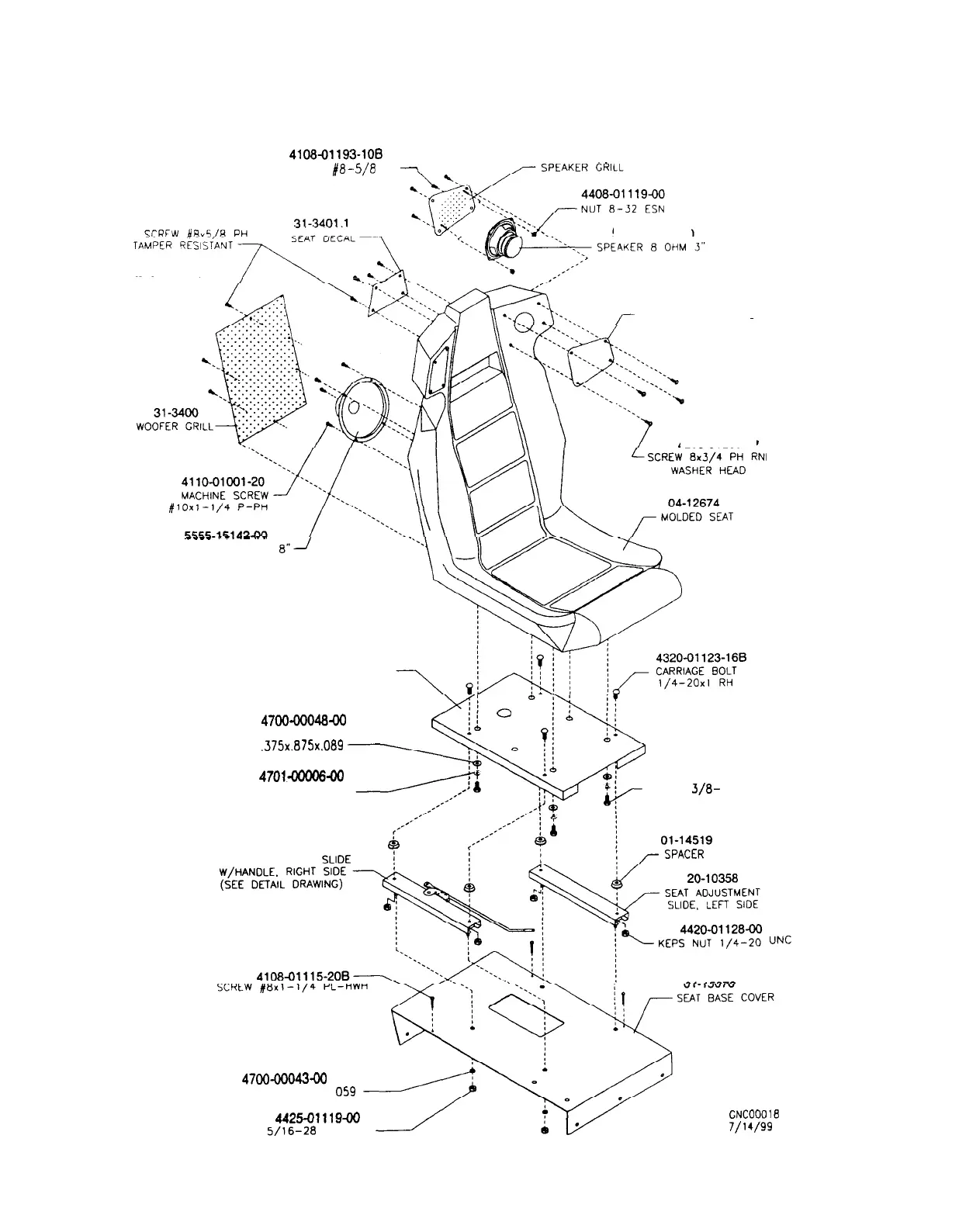

A-23200 SEAT ASSEMBLY
FRONT VIEW
4108-01193-108
SCREW /E-S/S PH -
TAMPER RESISTANT
04-12815
5555-16234-00
01-14497
,r- SPEAKER PORT GRILL
4108-01193-108
4208-01203-12
---- .- -- --
SPEAKER WOOFER a--J
01-14495.1
SEAT BASE PANEL
4700-00048ao
FLAT WASHER
.375x.875x.089
47Ol-Oooo6-00
LOCKWASHER 3/a SPLIT
4322-01070-12
SCREW 3/8- 16x3/4
HEX HEAD
SEAT ADJUSTMENT SLIDE
4700-00043-00
FLAT WASHER 328x.562x 0%
4425-01119-
NUT 5/16-28 ESN UNC
CNCOOOlB
7/l 4/99
3-9
