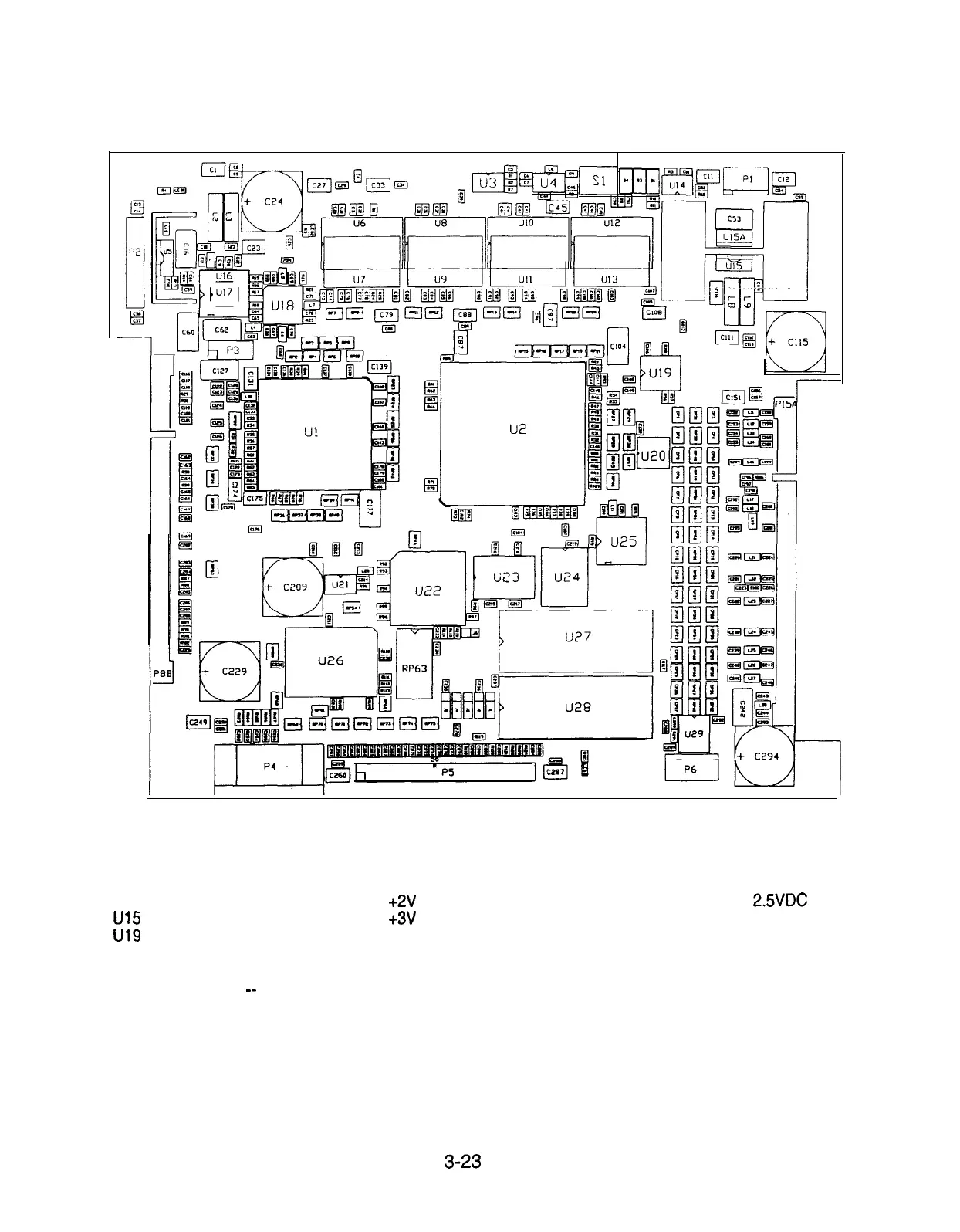

A-22543 CPU BOARD ASSEMBLY
Field Replaceable Parts
DESIGNATION
PART NUMBER FUNCTION DESCRIPTION
u5
5250-l 6015-00 +2V Regulator Voltage Regulator 2.5VDC
u15 5460-l 5671-00 +3V Regulator Voltage Regulator 3.3 VDC
u19
A-2331 5
Bus Controller Configuration Programmed Logic Device
u22
A-2291 2
CPU Configuration Programmed Logic Device
U27 A-5343-30036-1
CPU Boot ROM EPROM Assembly
U28
_-
CPU Expansion ROM
EPROM Assembly (empty)
3-23
