Dashboard and Steering Mechanism
Switch off power to the game. Support the steering wheel. Remove one screw from the upper left corner
and two at the sides of the instrument cluster just above the steering wheel. Remove the support and
lower the dash. Ensure that wires and cables are not pinched or caught in hinge when dash is reinstalled.

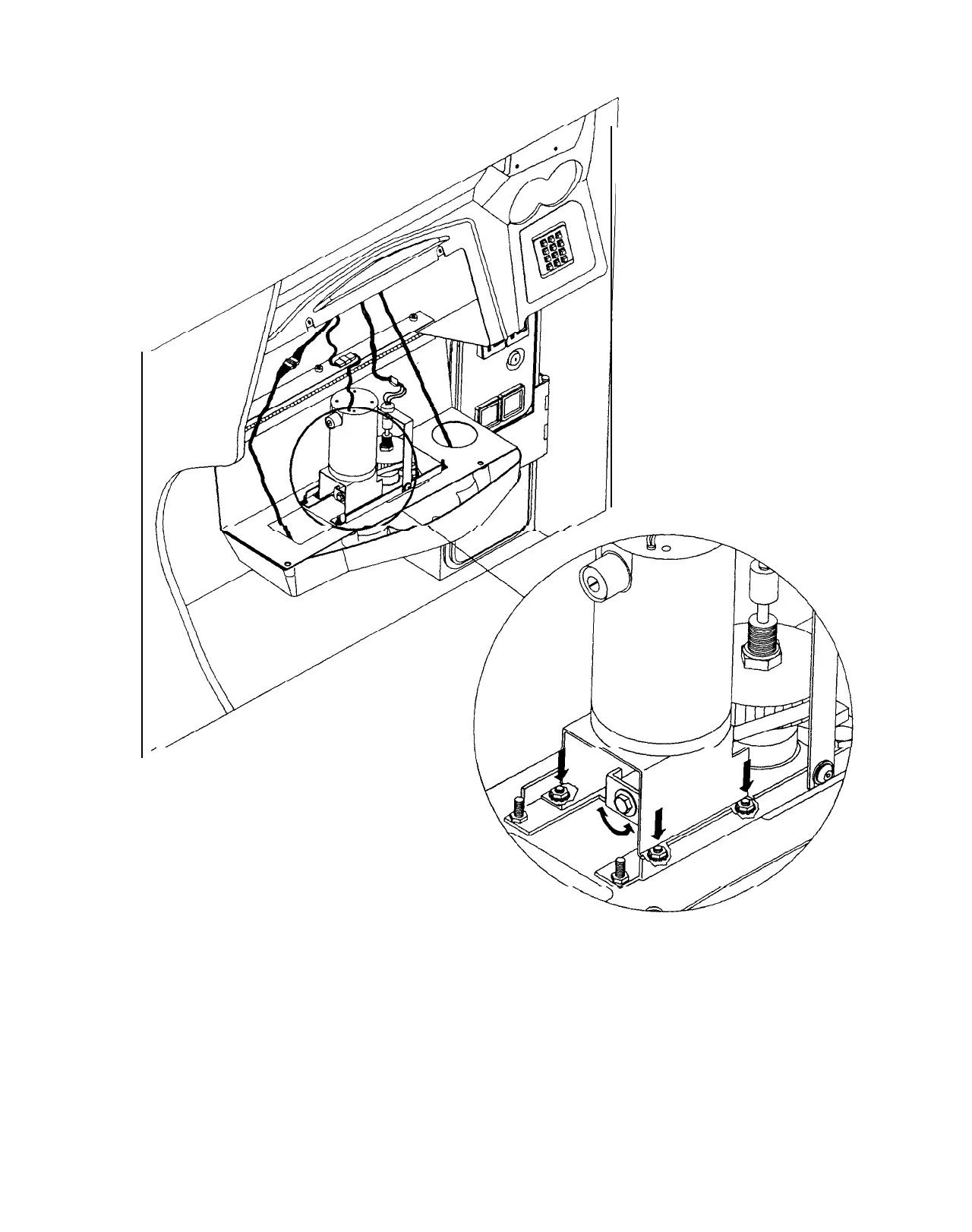

While the dashboard is lowered, inspect the motor, pulleys, and belt. Install a new belt if the existing one is
broken or shows signs of wear. There are two nuts on each side of the motor mounting bracket. Loosen
all four bracket nuts and rotate the tension adjustment bolt as necessary. Tighten this bolt until there is no
belt deflection, then loosen it one full turn to provide correct tension. Tighten the motor bracket nuts.
4-4
