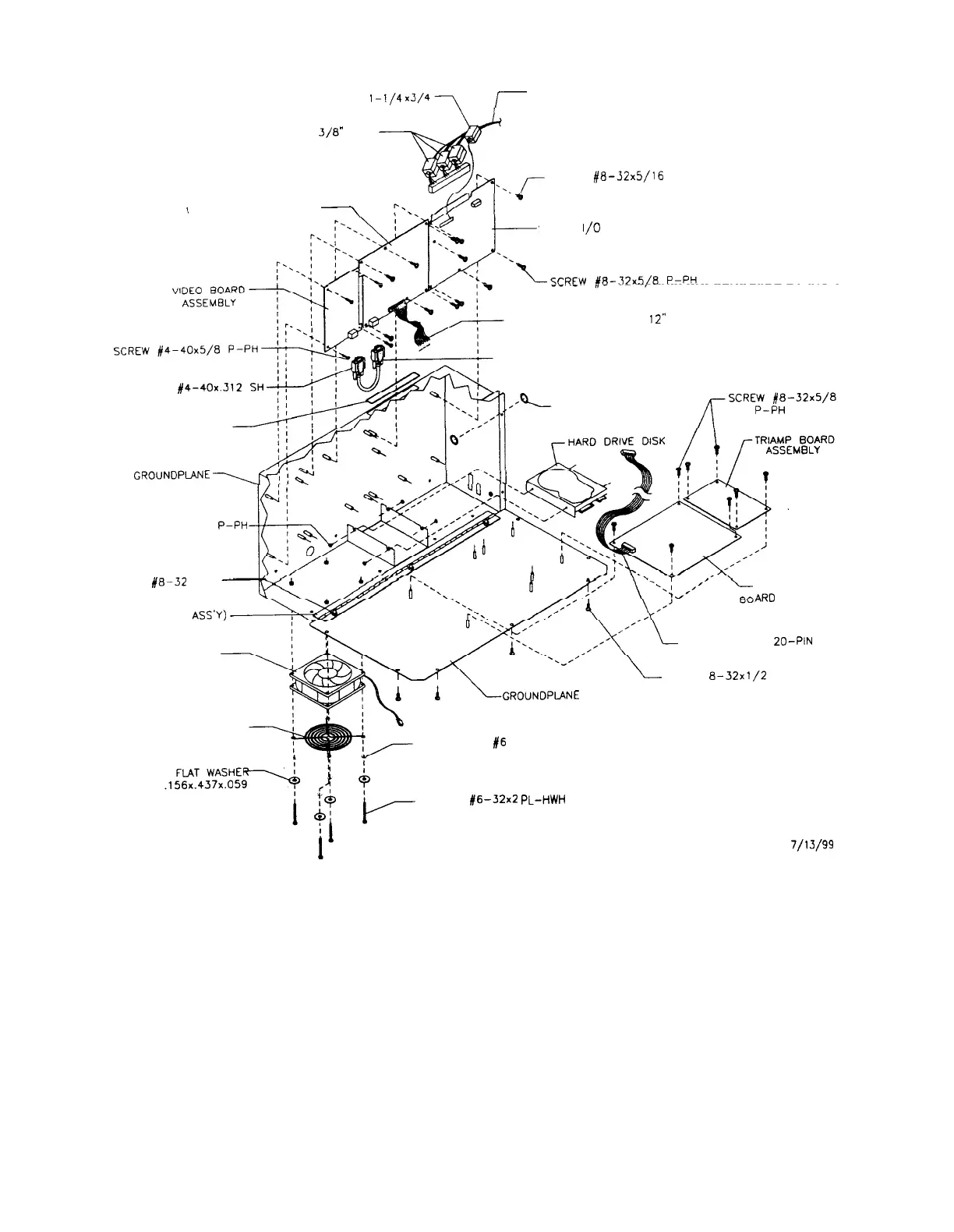

FERRITE BEAD
l-1/4
x3/4\
MAIN HARNESS ASSEMBLY
FERRITE BEAD
3/8”
SPLIT
CPU BOARD ASSEMBLY
\
SCREW
#8-32x5/16
P-PH
SOUND
I/O
BOARD ASSEMBLY
RIBBON CABLE, 40-PIN
12”
SHIELDED VIDEO CABLE
JACKSCREW
#4-40x.3
FLEXIBLE GROMMET
SPLIT GROMMET
GROUNDPLANE
SCREW #6-32x1/4
P-PH
W/SPRING SEMS
NUT
#E-32
KEPS
WHEEL DRIVER
HINGE (PART OF
AR0 ASSEMBLY
GROUNDPLANE ASS’Y)
FAN ASSEMBLY
RIBBON CABLE, ZO-PIN
GROUNDPLANE COVER
SCREW
8-32x1/2
P-PH SEMS
FAN GUARD 4”
LOCKWASHER
#6
SPLIT
SCREW
#6-32x2
PL-HwH
GNC00009
7/l
J/99
Fan Assembly
Switch off power to the game.
Remove the cabinet rear door.
Remove the screws from the metal cover
of the electronics assembly. To remove a fan, disconnect the power harness and remove the mounting
screws. Note the fan orientation.
Each fan has an arrow molded into its plastic case to indicate airflow
direction. Be certain to reinstall the fans in the proper orientation to assure airflow over the circuit boards.
4-7
