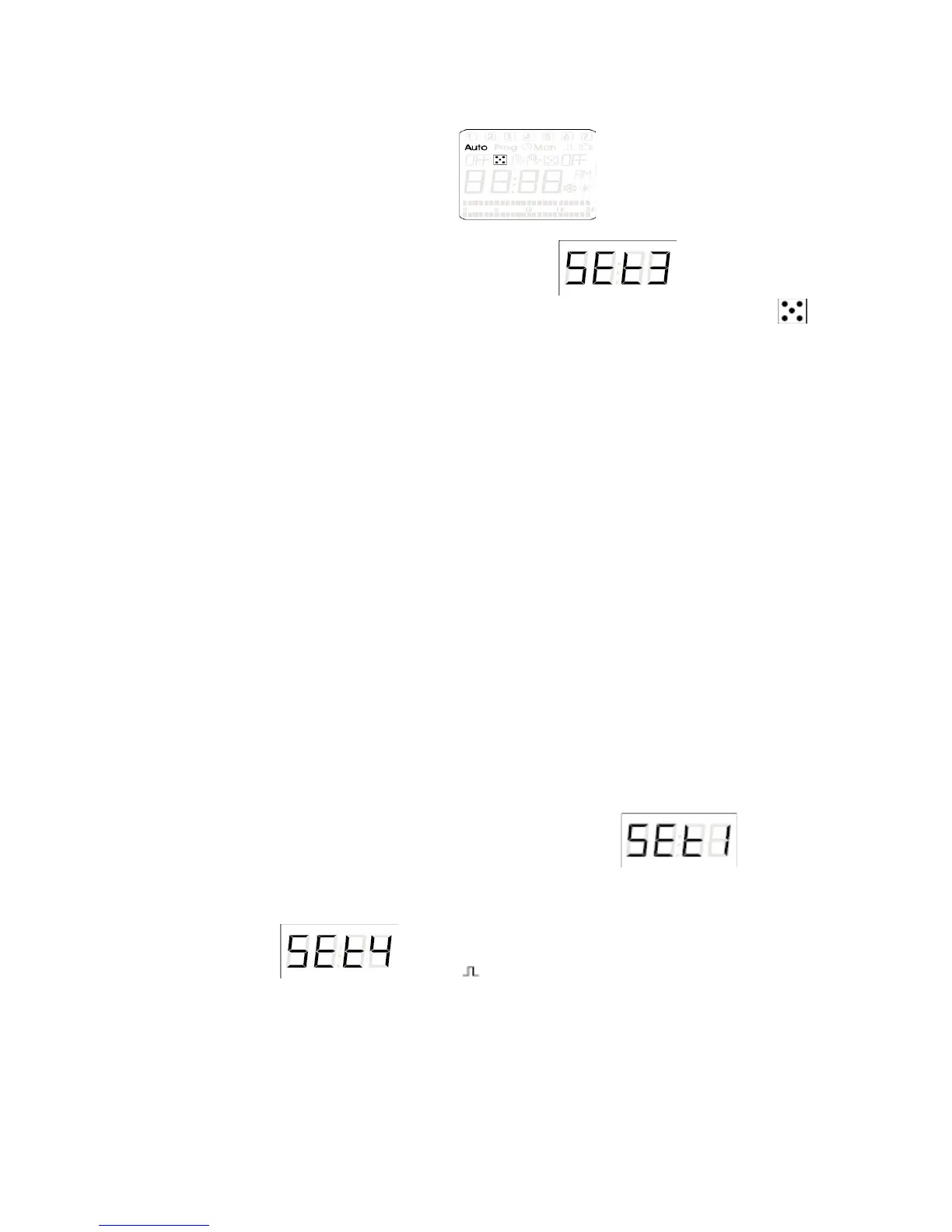

e) Press (OK) button, (prog should be illuminated in the upper left corner)
f) Press the (+PRG) button, should now display on the
units LCD screen
g) Press (OK) button, display goes back to screen
h) Press (MAN 2/ESC) button to go back to the original run mode (now the
will be blinking on either the left side or right side depending on which output
you selected to go on and off randomly)
6.) Manual
This mode allows for the output to permanently switched on or off
by a short press or the (-MAN) button to control output one or (MAN2 /
ESC) to control output two. This is done in the run mode operation for
easy and quick control of both channel outputs. Pushing the button MAN
buttons will override any other modes currently present at the time
because it is the highest priority mode, see page 7 mode priorities
diagram.
7.) Cycle/Pulse Output Setting
This sets the on and off cycle time for the repeat cycle and also the
pulse output modes (step 2 and step 3 of the programming section). In
the Pulse cycle mode, only the on time setting matters because it pulses
on once for the preset time and at the end of the on time the output will
remain off unless there is another program set for the pulse to go off again
that day. In other words, the on time sets the pulse length and the off time
doesn’t matter unless you’re in the repeat cycle mode.
a) Press and hold the (+PRG) button for 3 seconds, is what
shows on the LCD display ( also you will see prog in the upper left corner of
the display)
b) Press the (+PRG) button 3 times until the LCD display shows
and the should also be illuminated
c) Press the (OK) button, (Ch01 or Ch02 should display)
d) You can choose whether to set the output cycle pulse to output 1 or output 2
by scrolling between them with the (+PRG) or (-MAN) buttons
