15
7.1.9. Ensure that the pneumatic clamps tighten the piece using the toggle switch on the control panel.
7.1.10. Press the motor start button to rotate the saw blade.
7.1.11. Start the cutting action of the saw blade by pressing both (green) cutting start buttons simultanously. Keep
the butrtons pressed.
7.1.12. The circular saw blade will start to rise, make the cut, then move down to its starting position. This happens
also once you release the cutting start buttons the saw blade will move down.
7.1.13. Make sure to adjust the rising speed of the saw blade according to the material to cut.
7.1.14. Once the ut is finished release the clamp pistons via the toggle switch, and take out the cut piece.

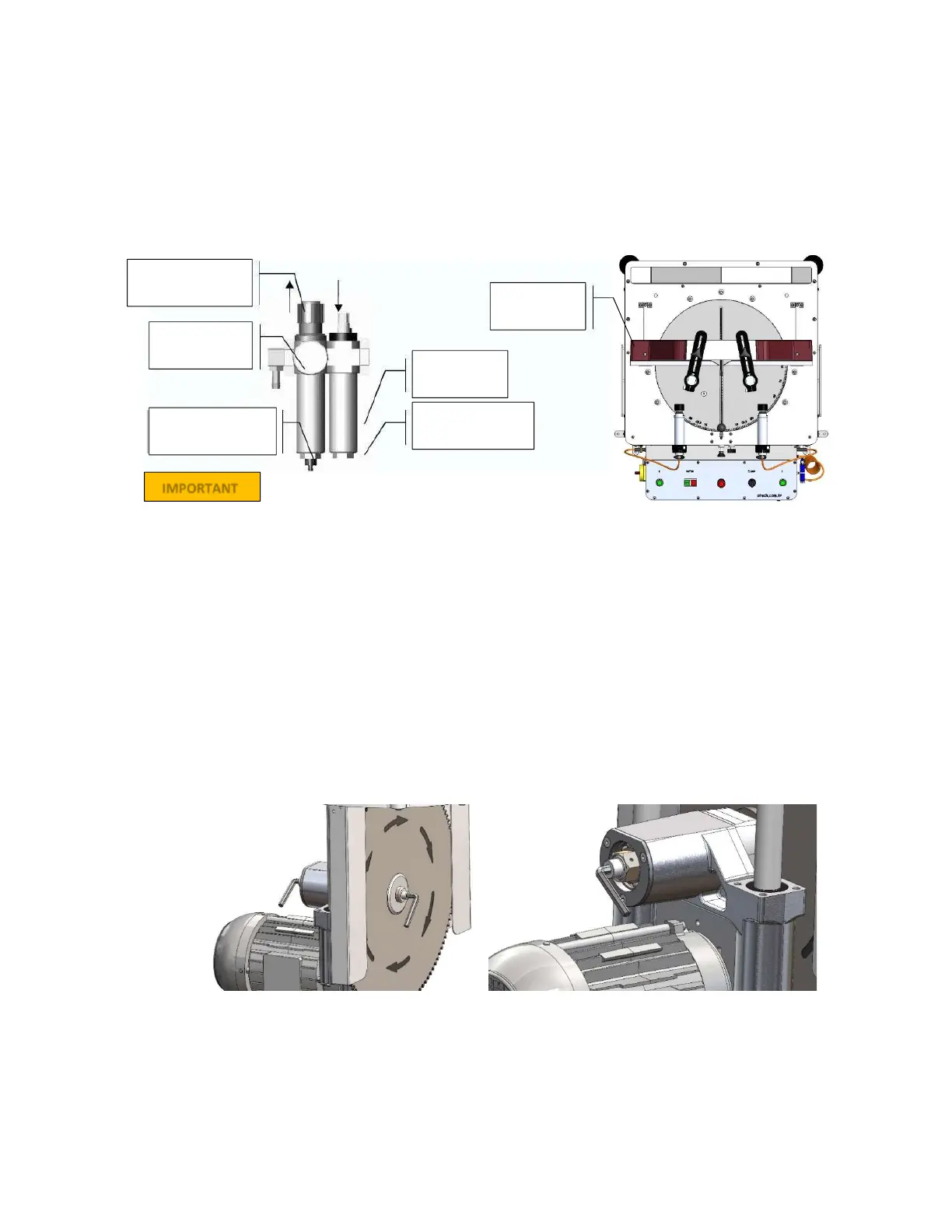

NOTE: Set the air pressure between 6-8 bars. The manometer is read as air pressure bar. If the reading on
the pressure gauge is less than or equal to the desired pressure, turn the air pressure adjustment
switch to the right or left to adjust the pressure to 6-8 bar.
If your air pressure drops below 4 Bar, the saw blade will not move, and the clamps will not work until the air
pressure is returned to the desired level due to operational safety.
7.1.15. The air conditioner unit collects the water contained in the air system into the collection container in order
to avoid damage o the pneumatic system components. Periodically (on the working day) drain the water by
pressing or opening the button under the conditioning cylinder deposit to drain the collected water.
8.
SAFE INSTALLATION OF THE SAW BLADE
To remove the circular saw blade from the saw blade shaft, apply the following sequence.
8.1.1. Move the MAIN SWITCH on the machine to position 0. Using a phillips screwdriver, open the right-hand
cover.
8.1.2. Remove the M10 screw by turning with a 8 mm allen key (Hold the saw blade shaft at the opposite end with
another 8 mm allen key to prevent the shaft from turning).
8.1.3. Remove the 30x8x7mm washer, outer coupling and Saw Flange parts.
8.1.4. Carefully take out the saw blade.
Movable
Back Fence
Pressure
Adjustment Knob
Manometer
Air Pressure And
Water Discharge
Oil Storage
Oil Addition
Stopper
To Next Page
