7
23 INBUS_M6x50 1
24 INBUS_M8x35 4
25 INBUS_M10x30 1
26 SETSCREW_M4x2,5 2
27 NARROW_STRAIGHT_WASHER _M8 4
28 A.A_M6x40 1
29 INBUS_M6x16 2
30 NUT_M6 1

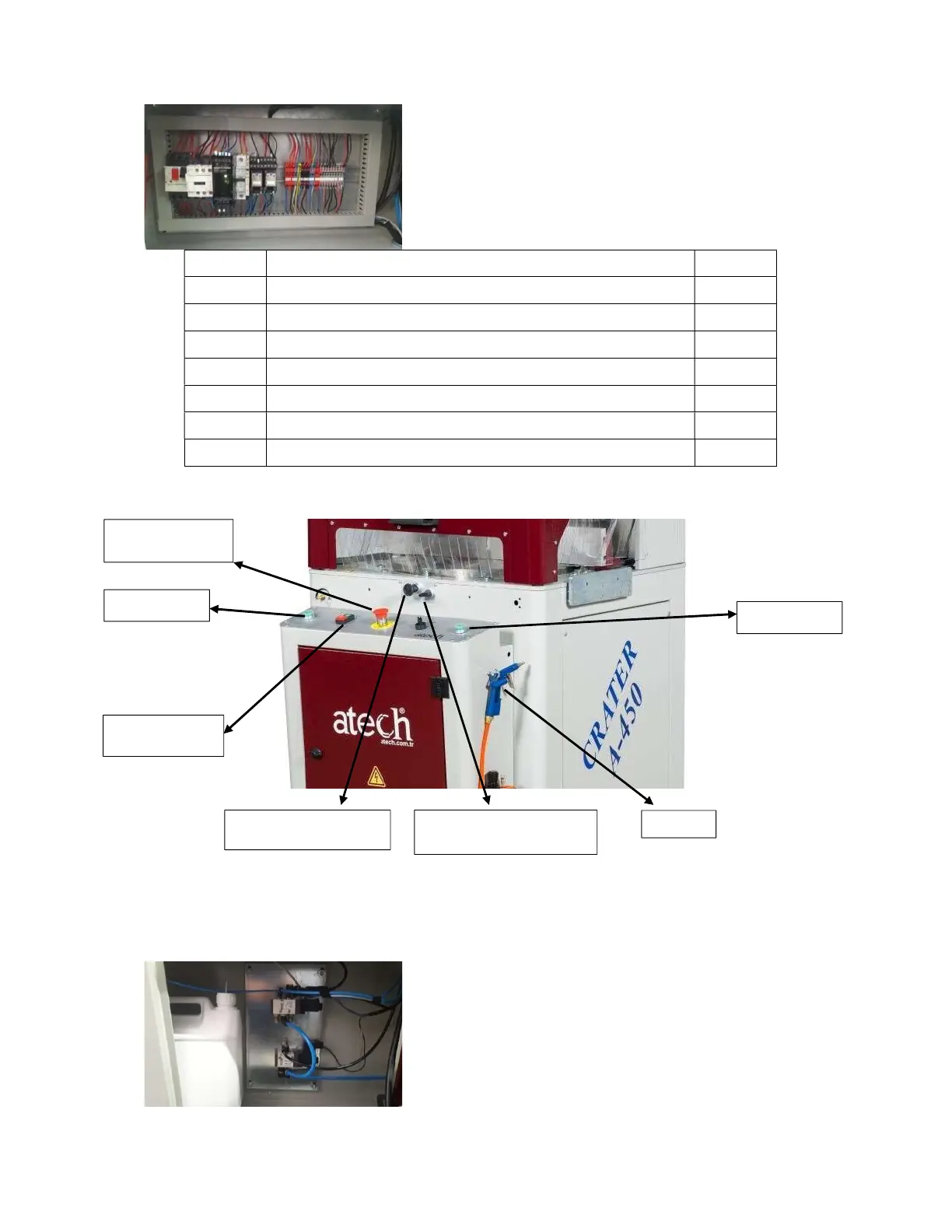

2.6. ELECTRIC AND PNEUMATIC CONTROL PANEL
The operator panel is located in front of the saw table. In case of any repair or maintenance the power has to be cut
off prior to acces of this electric panel. All electrical works have to be carried out by a qualified electrician.
Below the operator panel there is the pneuamtic panel, where also the coolant bin of the spray mist system is
located. Please make sure that you use proper coolant (water based) for your cutting process..
The control panel door has to be closed and locked during
operation. In case of service carried out for maintenance and
possible defects;
DISCONNECT POWER AND OMPRESSED AIR SUPPLY TO THE
SAW.
If the air pressure falls below 4 bars (60 psi), the saw blade will
not rise and pneumatic clamps will not work.
Bolt for Fixing of
Intermediate Angles
Release Pin-Setting
Motor Start-Stop
Cutting Button
Air Gun
Motor Emergency
Stop Button
Cutting Button
To Next Page
