ATEN CS1708i User Manual

Chapter 7. Port Access
89
The Sidebar

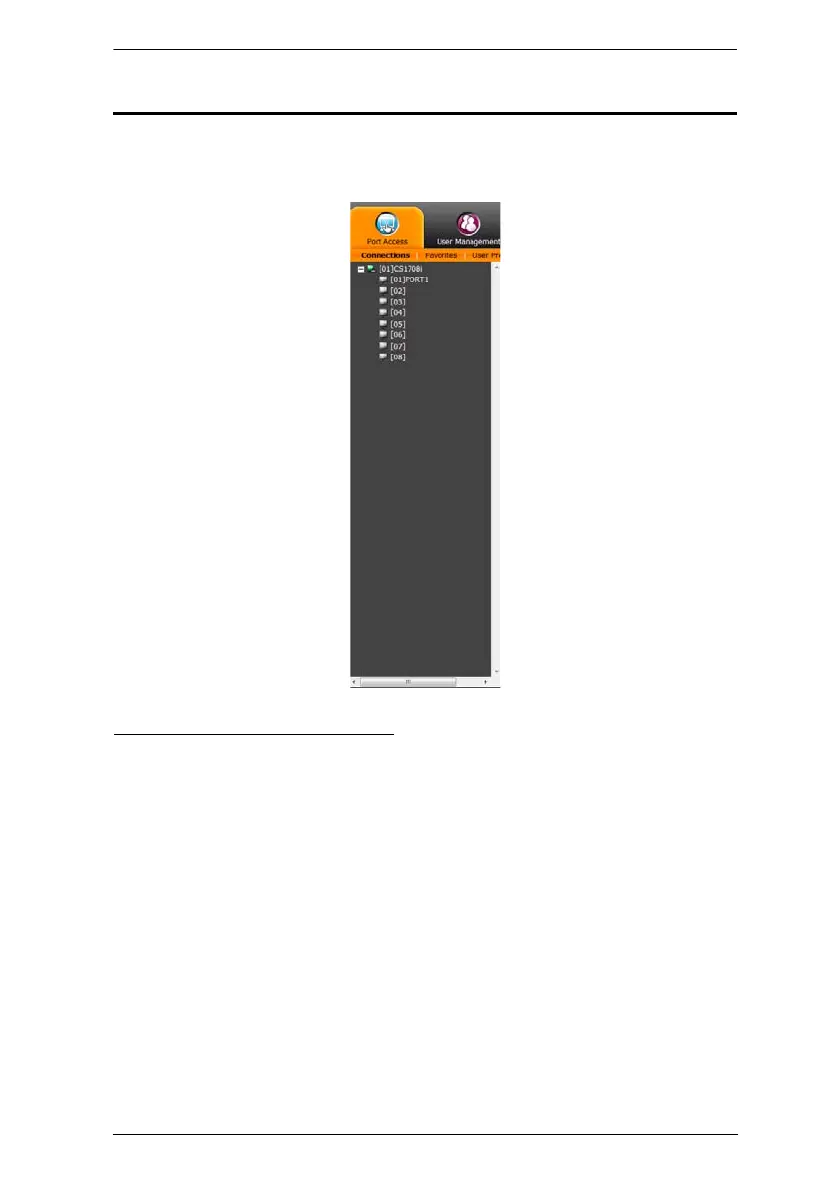

All KVM switches are listed in a tree structure in the Sidebar at the left of the
screen:
The Sidebar Tree Structure
 Users are only allowed to see the devices and ports that they have access
permission for.
 Ports and child devices can be nested under their parent devices.
Click the + in front of a device to expand the tree and see the ports/outlets
nested underneath it. Click the - to collapse the tree and hide the nested
ports/outlets.
 A port’s ID number is displayed in brackets next to its icon.
 Switches and ports that are on line have their monitor screen icons in
Green; the monitor screens are Gray for devices and ports that are offline.
 To access and operate a port, double click its icon. Port operation details
are discussed in Chapter 13, Port Operation.

ATEN CS1708i Specifications

General

I/O ports	1 x SPHD-18 M 8 x SPHD-17 F 1 x DB-25 M 1 x DC 1 x RJ-45 F 1 x RJ-11 1 x USB A
Color depth	24 bit
Ports quantity	8
RJ-12 ports quantity	0
Connectivity technology	Wired
Compatible operating systems	Windows, Mac OS X, Linux, Sun
DC-in jack	Yes
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, SSL/TLS
Power consumption (typical)	9.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	KVM
Product color	Black
Housing material	Metal
Scan interval	255 s
Number of users	32 user(s)
Maximum resolution	2048 x 1536 pixels
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Depth	433 mm
Width	160 mm
Height	44 mm
Weight	2810 g
