ATEN CS1708i User Manual

Chapter 6. The User Interface
73
Video Settings

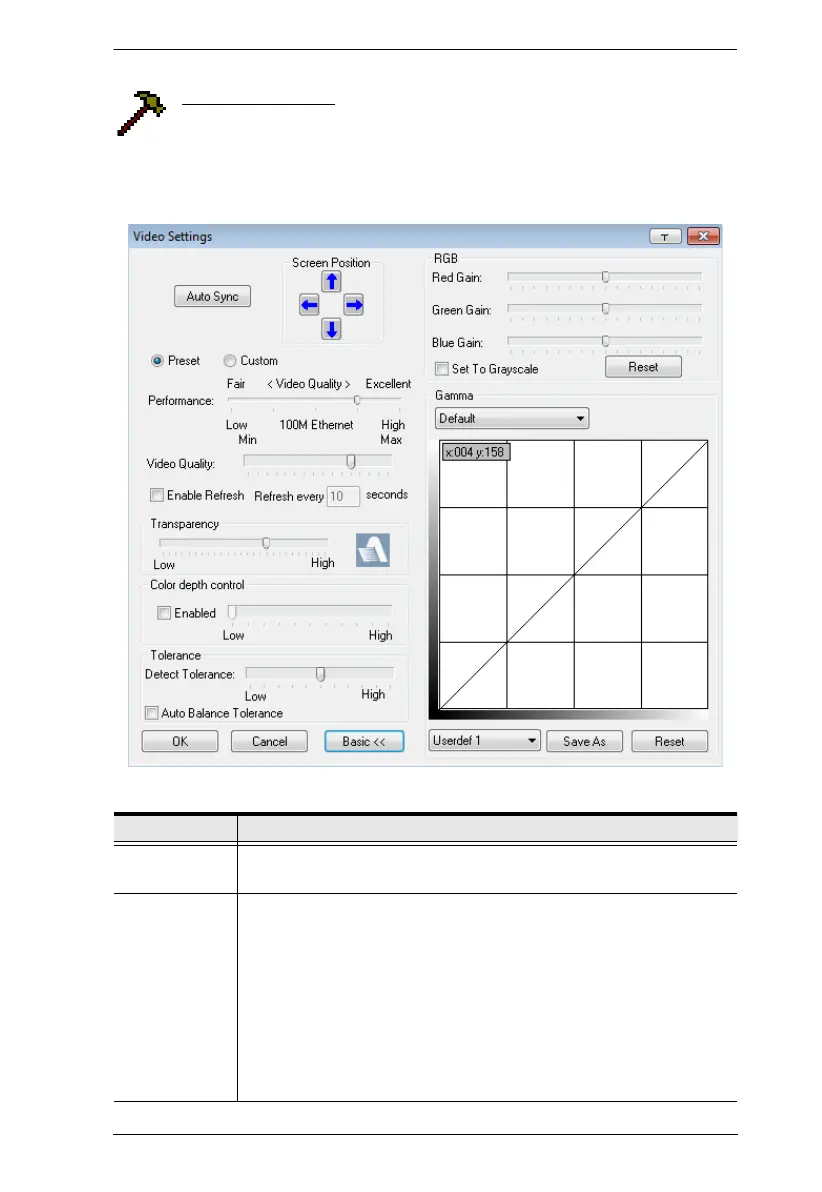

Clicking the Hammer icon on the Control Panel brings up the Basic
Video Settings dialog box. The options in this dialog box allow you to
adjust the placement and picture quality of the remote screen on your monitor.
Click Advanced for more options.
The meanings of the video adjustment options are given in the table below:
Options Usage
Screen Position Adjust the horizontal and vertical position of the remote server
window by Clicking the Arrow buttons.
Auto-Sync Click Auto-Sync to have the vertical and horizontal offset values of
the remote screen detected and automatically synchronized with the
local screen.
Note: 1. If the local and remote mouse pointers are out of sync, in
most cases, performing this function will bring them back
into sync.
2. This function works best with a bright screen.
3. If you are not satisfied with the results, use the Screen
Position arrows to position the remote display manually.

ATEN CS1708i Specifications

General

I/O ports	1 x SPHD-18 M 8 x SPHD-17 F 1 x DB-25 M 1 x DC 1 x RJ-45 F 1 x RJ-11 1 x USB A
Color depth	24 bit
Ports quantity	8
RJ-12 ports quantity	0
Connectivity technology	Wired
Compatible operating systems	Windows, Mac OS X, Linux, Sun
DC-in jack	Yes
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, SSL/TLS
Power consumption (typical)	9.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	KVM
Product color	Black
Housing material	Metal
Scan interval	255 s
Number of users	32 user(s)
Maximum resolution	2048 x 1536 pixels
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Depth	433 mm
Width	160 mm
Height	44 mm
Weight	2810 g
