CS1708i / CS1716i User Manual
152
Connecting to a Port
All the devices, ports, and outlets that a user is permitted to access are listed in
the Sidebar at the left of the page.
 To connect to a port when a device is selected in the Sidebar, double click
its icon in the Sidebar; or double click anywhere on its line entry in the
main central panel; or select it in the main panel and click Connect at the
bottom right of the page.
 To connect to a port when the port is selected in the Sidebar, click
Connect at the right of the Status panel (see page 92).

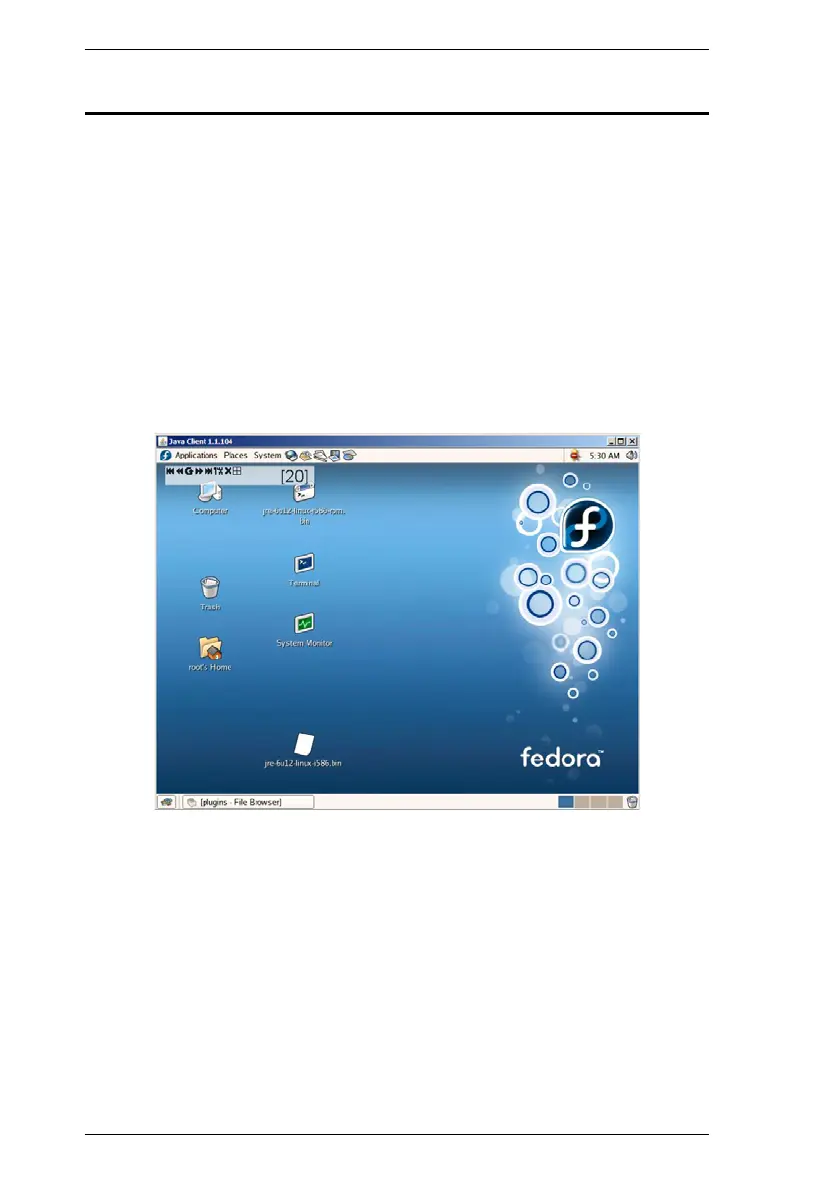

Once you switch to a port, its screen displays on your monitor, and your
keyboard and mouse input affects the remote server:

ATEN CS1708i Specifications

General

I/O ports	1 x SPHD-18 M 8 x SPHD-17 F 1 x DB-25 M 1 x DC 1 x RJ-45 F 1 x RJ-11 1 x USB A
Color depth	24 bit
Ports quantity	8
RJ-12 ports quantity	0
Connectivity technology	Wired
Compatible operating systems	Windows, Mac OS X, Linux, Sun
DC-in jack	Yes
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, SSL/TLS
Power consumption (typical)	9.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	KVM
Product color	Black
Housing material	Metal
Scan interval	255 s
Number of users	32 user(s)
Maximum resolution	2048 x 1536 pixels
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Depth	433 mm
Width	160 mm
Height	44 mm
Weight	2810 g
