Connection
Atlantic Technology Powered Subwoofers are simple to hook up, offering several
connection methods for maximum flexibility. Study the system diagrams starting on
page 8. Once you have found the example which most closely matches your system,
hook up your subwoofer(s) as shown in that diagram.
Low-Level Connection
For best performance, we suggest using the low-level (RCA style jacks) subwoofer line
out or preamp outputs if your receiver/amplifier has them. Simply connect your
subwoofer with high quality shielded cables as shown in the diagrams.
High-Level Connection
Alternately, you may use the high-level (speaker) inputs. Make sure to match the type
and gauge speaker wire used to connect your main speakers.
We recommend that you connect your subwoofer using high quality wire of 16 gauge
or larger for lengths up to 25 feet. There are many manufacturers who specialize in
speaker wire and interconnects suitable for your new system. We recommend that you
consult your local audio/video specialist for more specific information.
Warning: To prevent risk of electrical shock or damage to your equipment, always unplug all
component AC cords before proceeding with speaker and component connections.
You can connect your subwoofer by using spade lugs or “banana” connectors, or by
removing 1/2" of insulation from each wire end, twisting the strands of wire together,
placing the wire through one of the post holes and screwing down the nut tightly. Be
certain that no stray wire strands are touching across
the two terminals as this might damage your amplifier
when you turn it on.
It is important to observe polarity while making speaker
connections: red (+) terminals on the amplifier to red
(+) on the speaker, black (-) on the amplifier to black (-)
on the speaker. Look carefully at the wires you are using
and note that one of the wires in each pair is marked by
either a different color, printing, ridges, or a thread intertwined with the wire strands.
By convention, the marked wire is connected to the red (+) terminal.

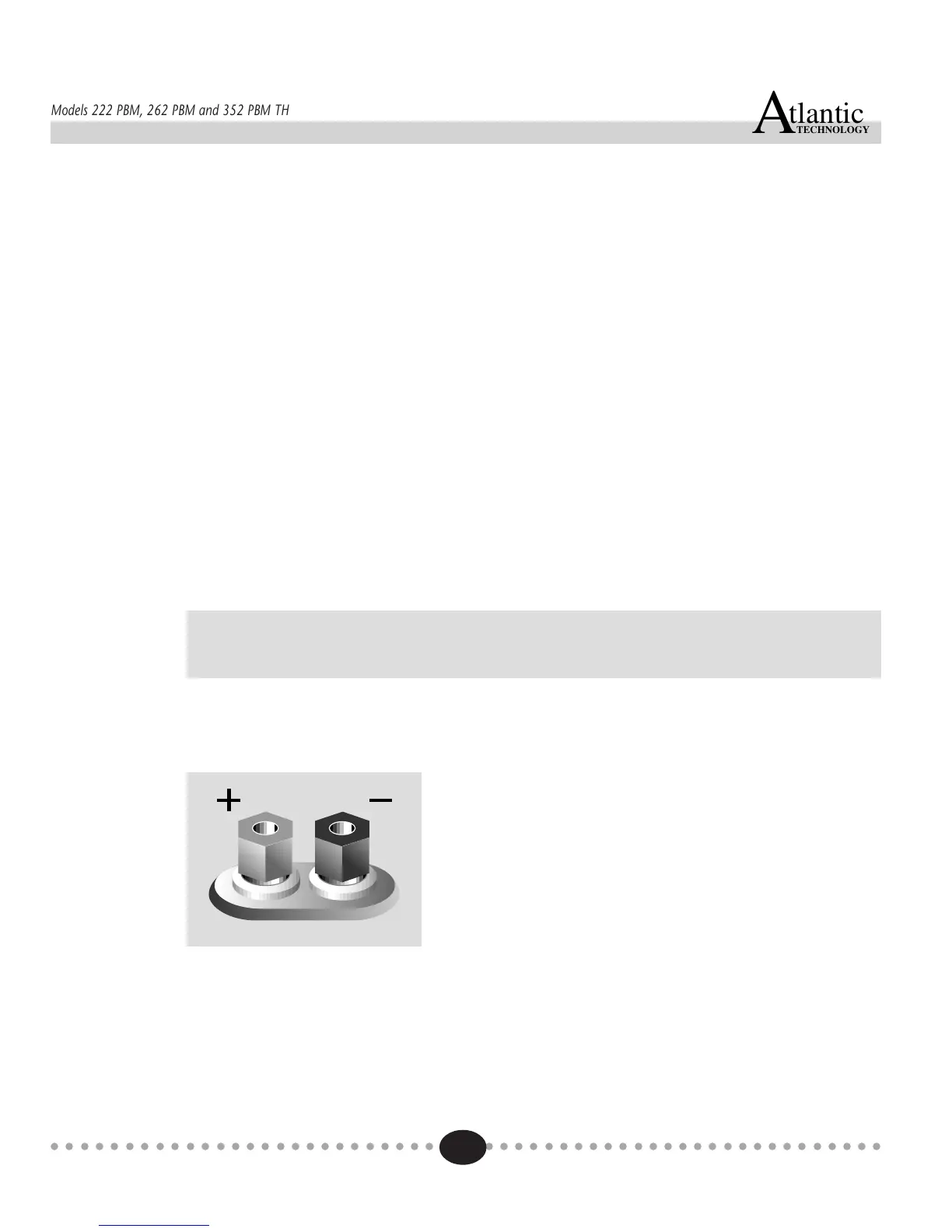

Figure 3:
Speaker Wiring
Terminals
