Models 222 PBM, 262 PBM and 352 PBM THX
10

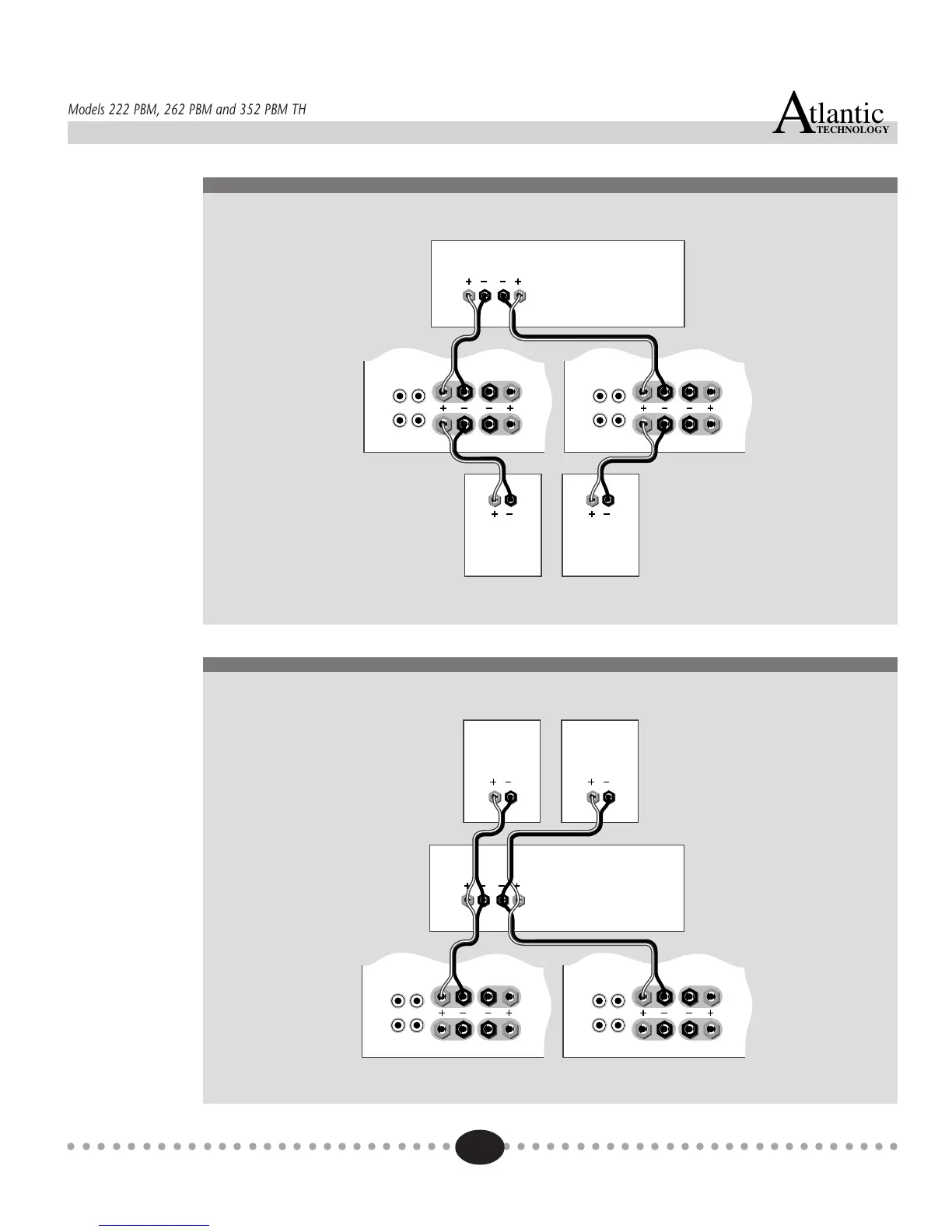

Example 5:
Speaker Out/
High Level In for
2 Subwoofers
Note that the
L/MONO High
Level input is used
on both left and
right subwoofers.
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
Left Right
L/MONO R
IN
THRU
IN
THRU
Main Speakers
Left Sub Woofer
Left Front Speaker Right Front Speaker
Receiver/Amplifier
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
L/MONO R
IN
THRU
IN
THRU
Right Sub Woofer
Example 6:
Speaker Out/
High Level In for
2 Subwoofers
This is an alternate
wiring method to
Example 5. By
connecting the
subwoofers and
main speakers in
this fashion, you
may be able to use
less speaker wire.
Again please note
that the L/MONO
High Level input is
used on both left
and right sub-
woofers.
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
Left Right
L/MONO R
IN
THRU
IN
THRU
Main
Speakers
Left Sub Woofer
Left Front Speaker Right Front Speaker
Receiver/
Amplifier
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
L/MONO R
IN
THRU
IN
THRU
Right Sub Woofer
