Models 222 PBM, 262 PBM and 352 PBM THX
9

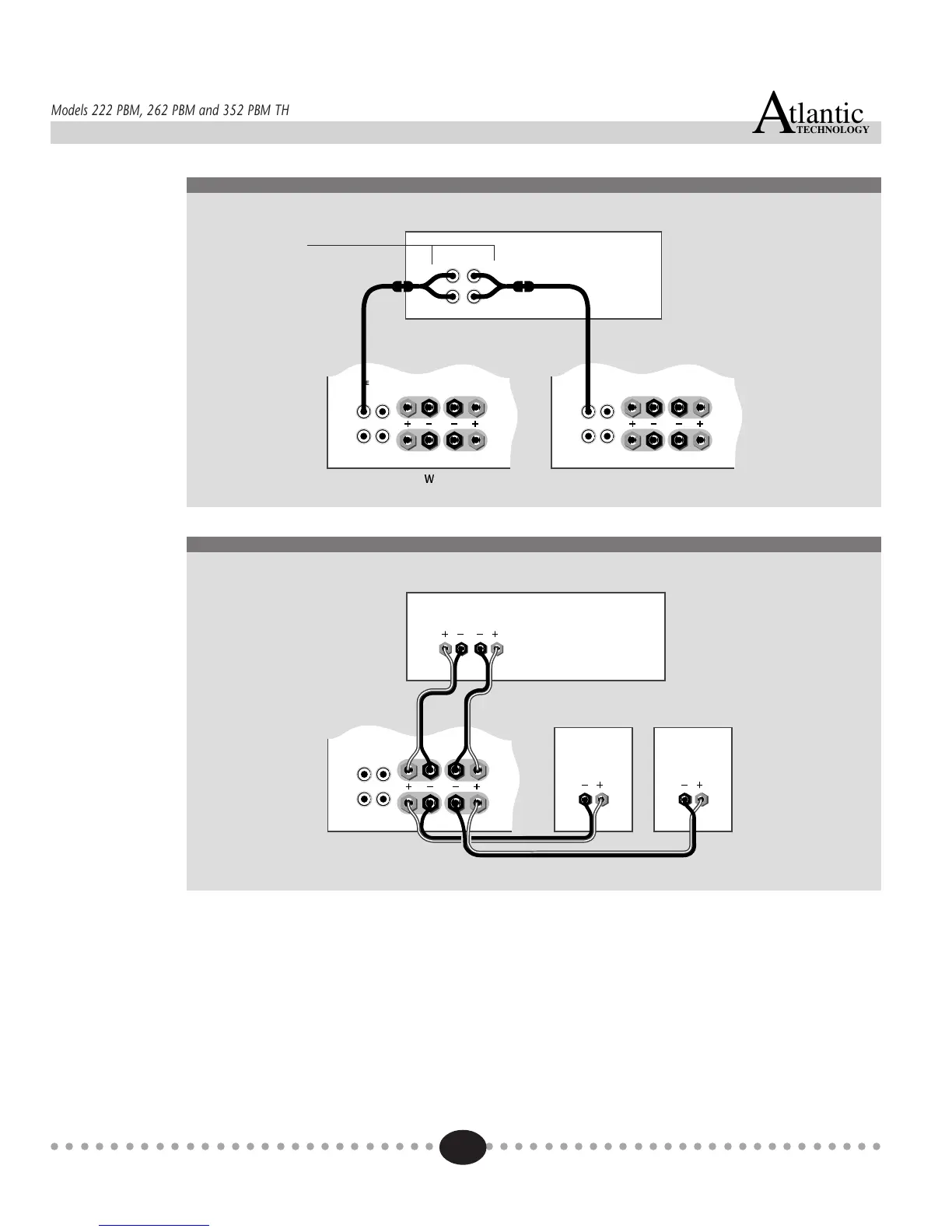

Example 3:
Preamp Line
Out/Low Level In
for 2 Subwoofers
Note that the
L/MONO input is
used on both left
and right sub-
woofers. Instead of
Y-adapters, you
may also use the
THRU outputs to
connect back to
the Main Inputs as
shown in Option 2
of Example 2.
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
L/MONO R
IN
THRU
IN
THRU
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
L/MONO R
IN
THRU
IN
THRU
Pre Out
Main In
LR
Left Sub Woofer Right Sub Woofer
Receiver/Amplifier
Example 4:
Speaker Out/
High Level In for
1 Subwoofer
This is the most
common method
for connecting a
subwoofer to a
system without a
dedicated sub-
woofer line out or
Preamp outputs.
L/MONO
HI LEVEL INPUTLOW LEVEL INPUT
R
Left Right
L/MONO R
IN
THRU
IN
THRU
Main Speakers
Sub Woofer
Left Front Speaker Right Front Speaker
Receiver/Amplifier
Y-adapters
