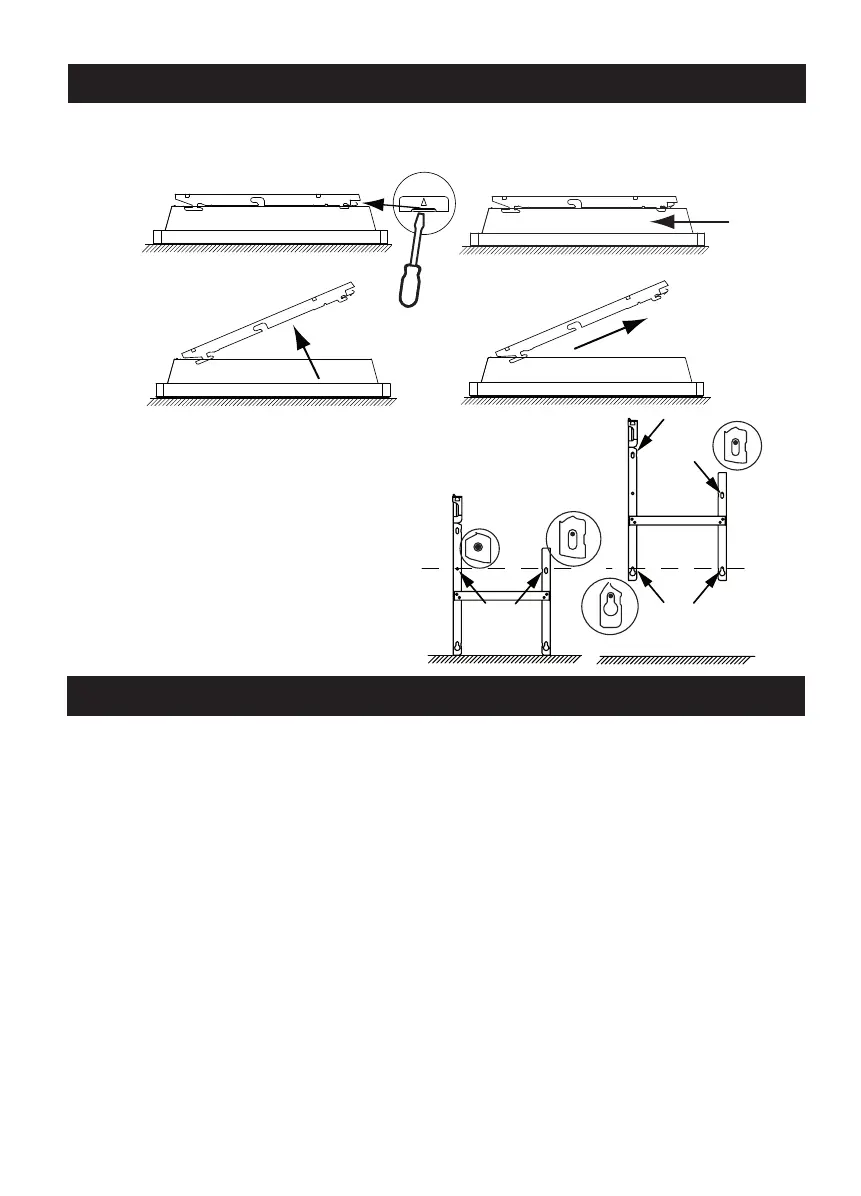

Release the device’s hook-on bracket
We recommend that you place the device at, face down.
Fix the hook-on bracket
INSTALLATION
ELECTRICAL CONNECTION OF THE DEVICE
Wiring rules
This device must be installed with a remotely controllable
programming system. This type of system can be connected
via the pilot wire of the device.
-The device must be powered with single phase 230 V 50 Hz.
-The power supply to the device must be directly connected to
the household power system after the circuit breaker and without
intermediate switch.
-The unit will connect to the household power system through its
power cable via a power socket.
-Connection to the earth is prohibited. Do not connect the
pilot wire (black wire) to the earth.
