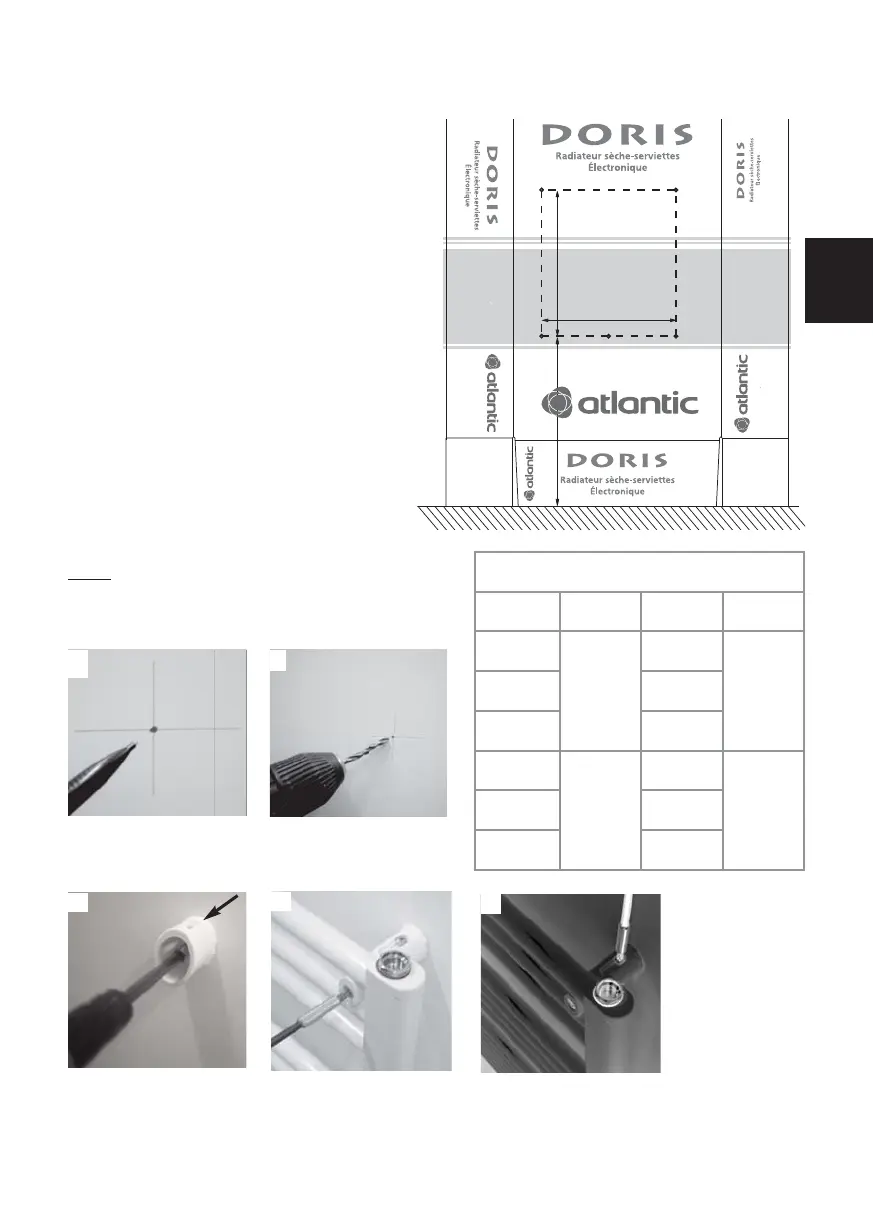

2) How to install the device
The installation template is printed on the packaging.
1/ Unfasten the carton’s flaps and place it
against the wall with the lower flap folded
back and resting flat on he floor. Prick out
the four drill holes though the packaging
(
without drilling
) and then remove the packa-
ging.
2/ Carefully mark the drilling points with a
pencil (
dr aw a cr o ss, 2 cm w ide
).
3/ Drill the holes.
4/ Screw on and orient the sleeve in place. Fit
the screws with the washers provided.
5/ Screw the pins on the tubes without locking
them. Check they are correctly positioned
by inserting them in the sleeves, with the
device. After finding the right position, tigh-
ten the screws on each pin.
6/ Place the device on the wall, in the sleeves.
Tighten all the locking screws. Fit the caps
on the ends of the pins.
Note: The pins supplied with the device are of the standard
type. In case of a particular stand, use appropriate pins.
200 mm200 mm
B
C
A
SOL
Measurement for fitting lugs (mm)
Power
A B C
500 W
320
mini
656
400750 W 1066
1000 W 1599
1500W
525
mini
451
3861750W 861
2000W 1394
2
4
5
3
6
GB
