5) Programming
The device can be controlled remotely if its pilot wire is connected to a device fitted with a program-
mer, a programming unit or an energy management unit.

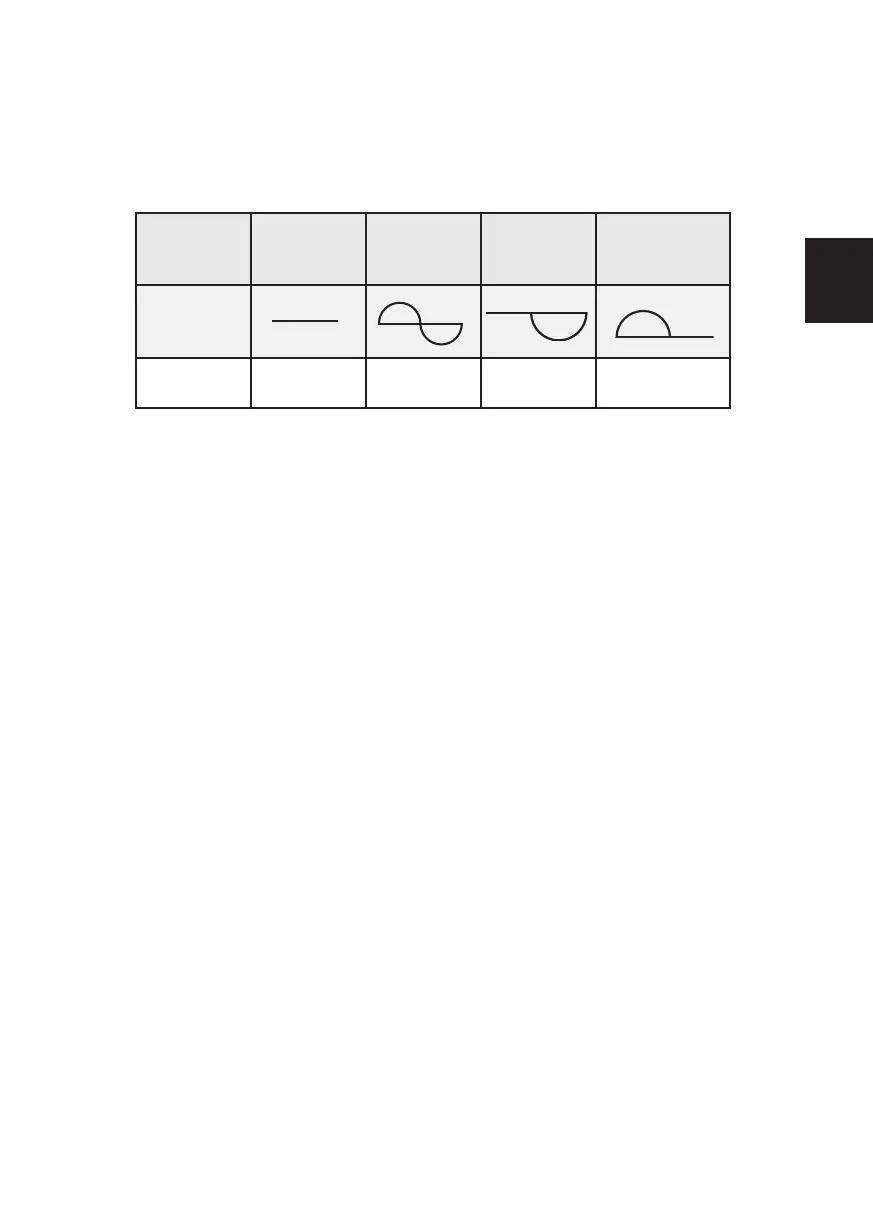

Chart indicating the orders the device can receive over its pilot wire
(
to be measur ed between the pilot wire and the neutral
).
Orders received Current absent Full wave 230V
Negative half
wave -115V
Positive half wave
+115V
Ref/neutral
oscilloscope
Mode achieved COMFORT ECO STANDBY
STOP HEATING
LOAD SHEDDING
