Atlantic WOYA 080 LFCA - Accessing the Hydraulic Units Refrigerant Connections

3.2.3 Accessing the hydraulic unit’s
refrigerant connections
- Remove the front panel (2 screws A).
- Remove the left-hand panel (2 screws B).
1
A
1
A
2

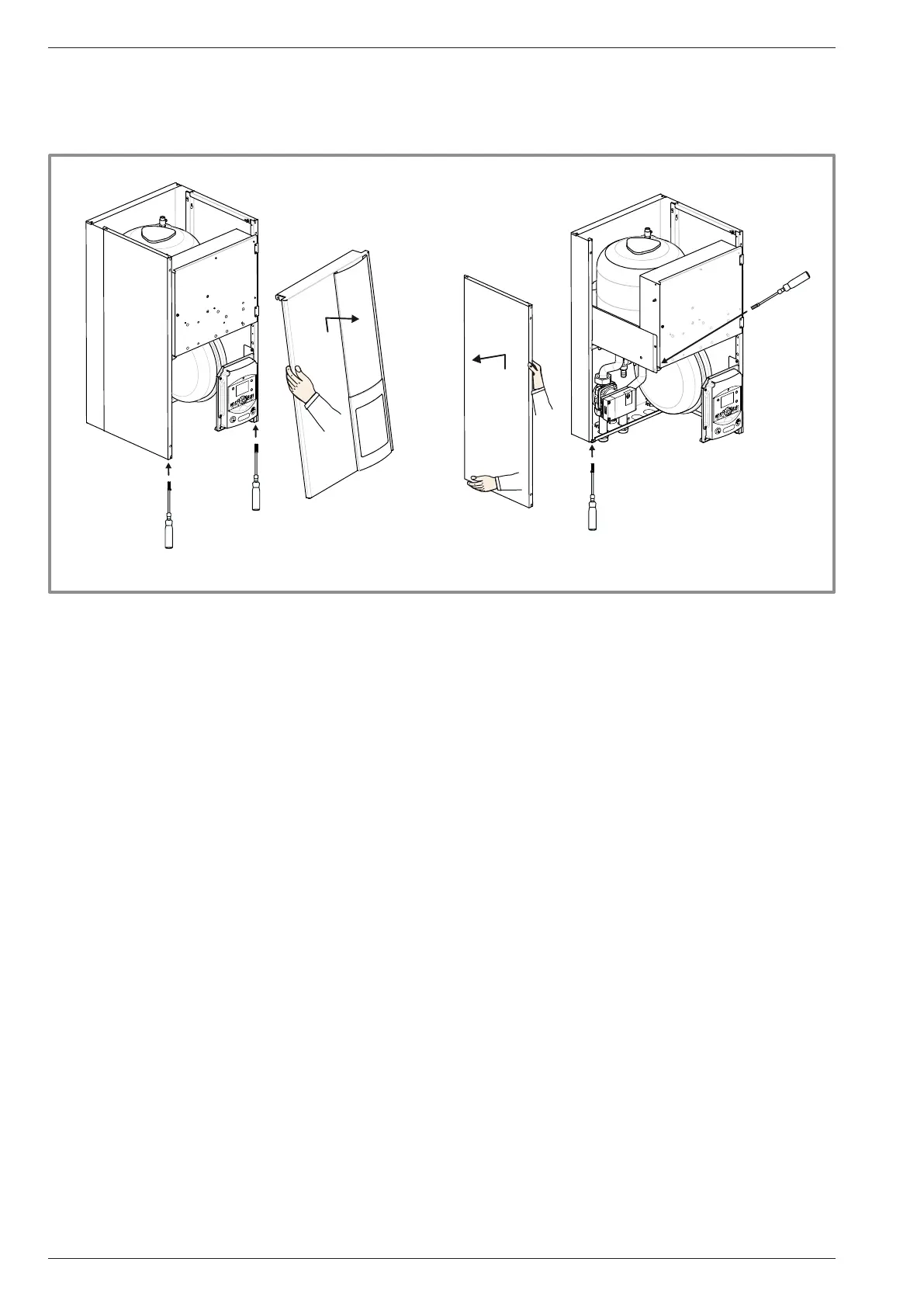

gure 20 - Removing the casing
4
3
B
3
B
Installation and operation manual "1734 - EN"
Heat pump air/water split 1 service alféa extensa +
- 20 -
