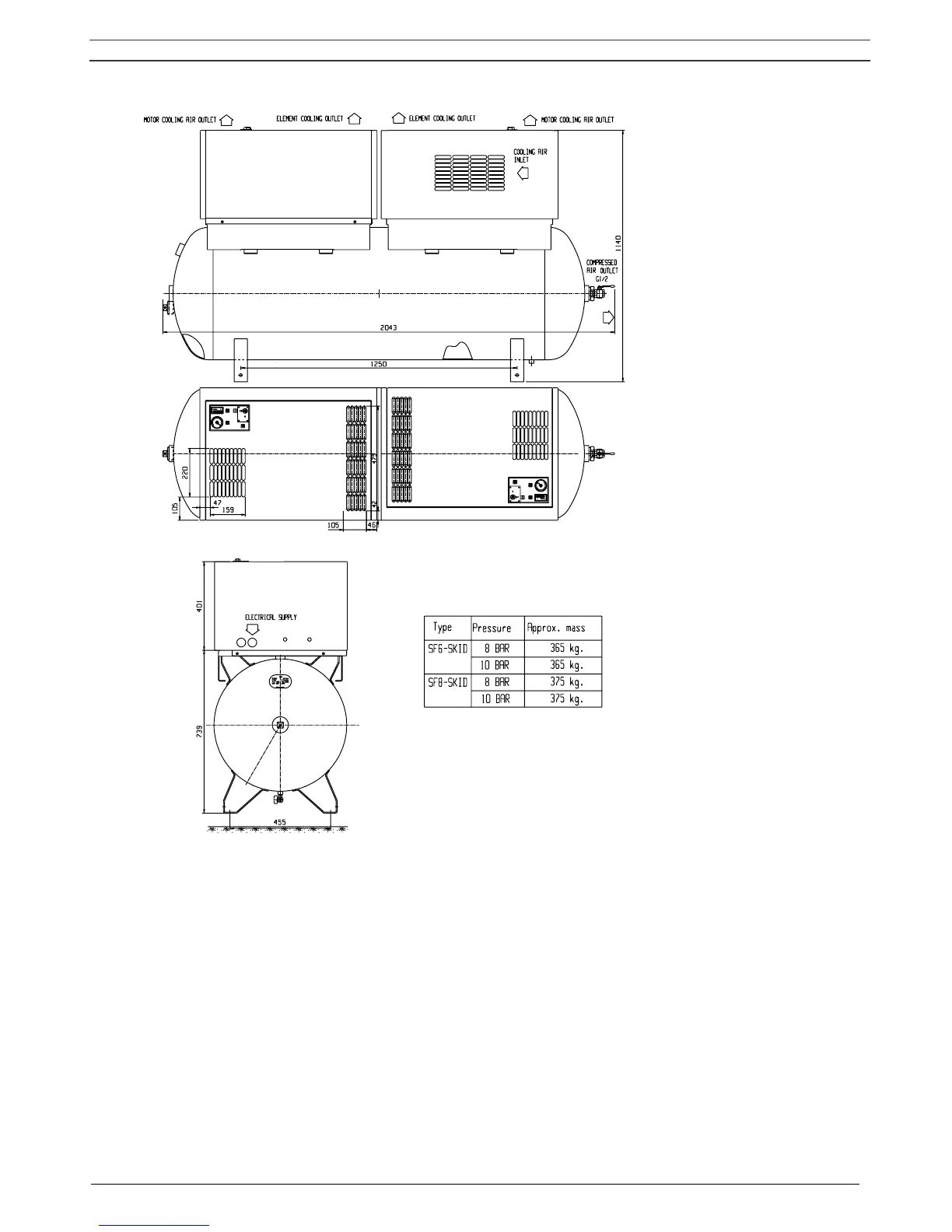

Fig. 2.3 Dimension drawing, SF 6-8 Twin
Text on Figs.2.1/2.3
1 Motor cooling air outlet 5 Electrical supply
2 Element cooling outlet 6 Type
3 Cooling air inlet 7 Pressure
4 Compressed air outlet 8 Mass, approx.
