Atlas Copco CR Series

2022 2096 26 9
Instruction book
2 General description
2.1 General description
Introduction
CR Range Compressors are air-cooled, two cylinder, single-stage and double-stage, lubricated piston
compressors, built for effective working pressures up to 145-175 psi.

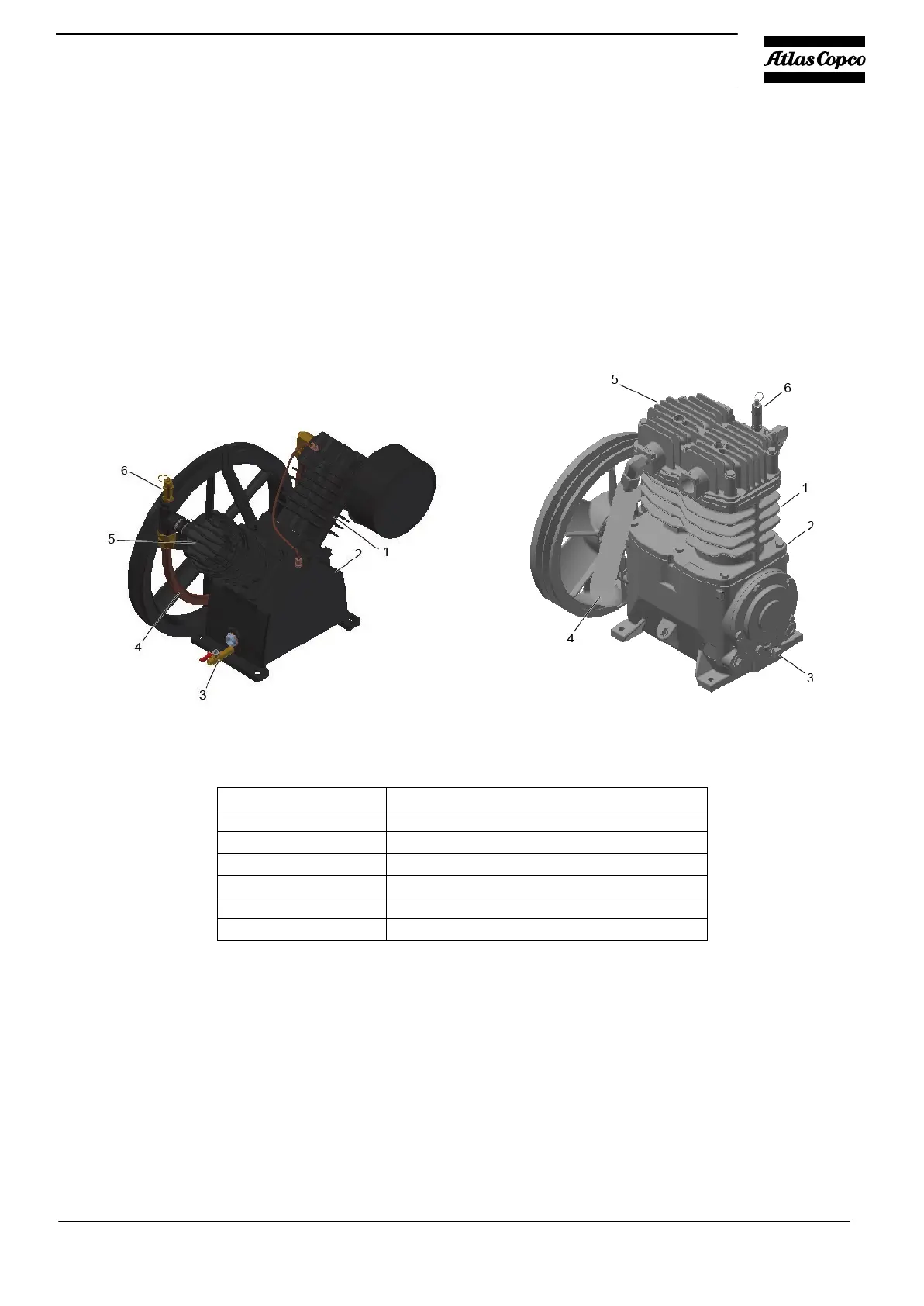

Compressor block
Compressor block
Reference
Description
1
Cylinder
2
Crankcase
3
Oil drain
4
Intercooler
5
Cylinder head
6
Pressure relief valve
