Instruction book

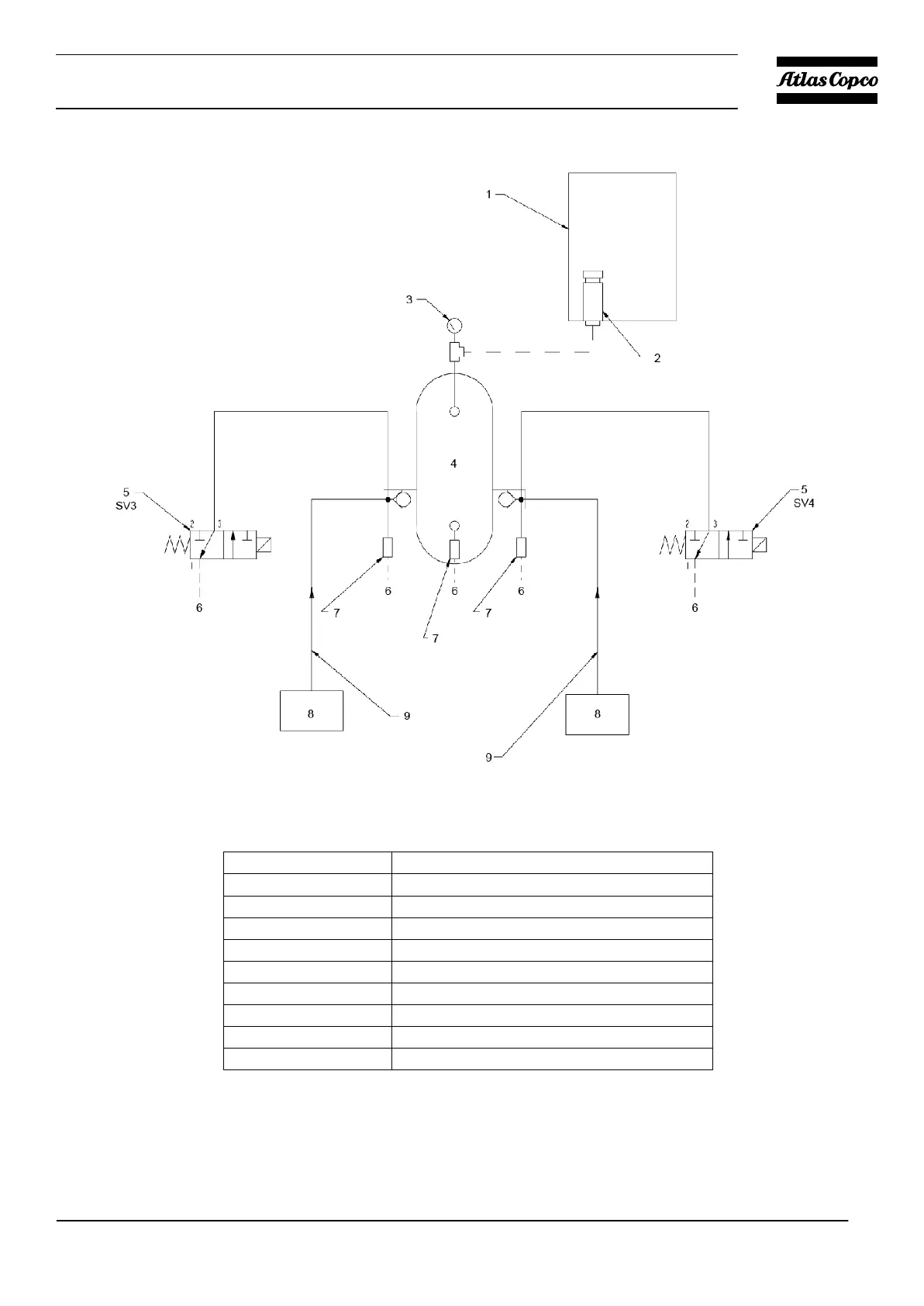

Control piping and regulating system, duplex tank mount with automatic start/stop
Reference
Description
1
Control panel
2
Pressure transducer
3
Pressure gauge
4
Air receiver
5
3-way normally-open solenoid valve
6
Vent
7
Pressure relief valve
8
Compressor
9
Discharge line
