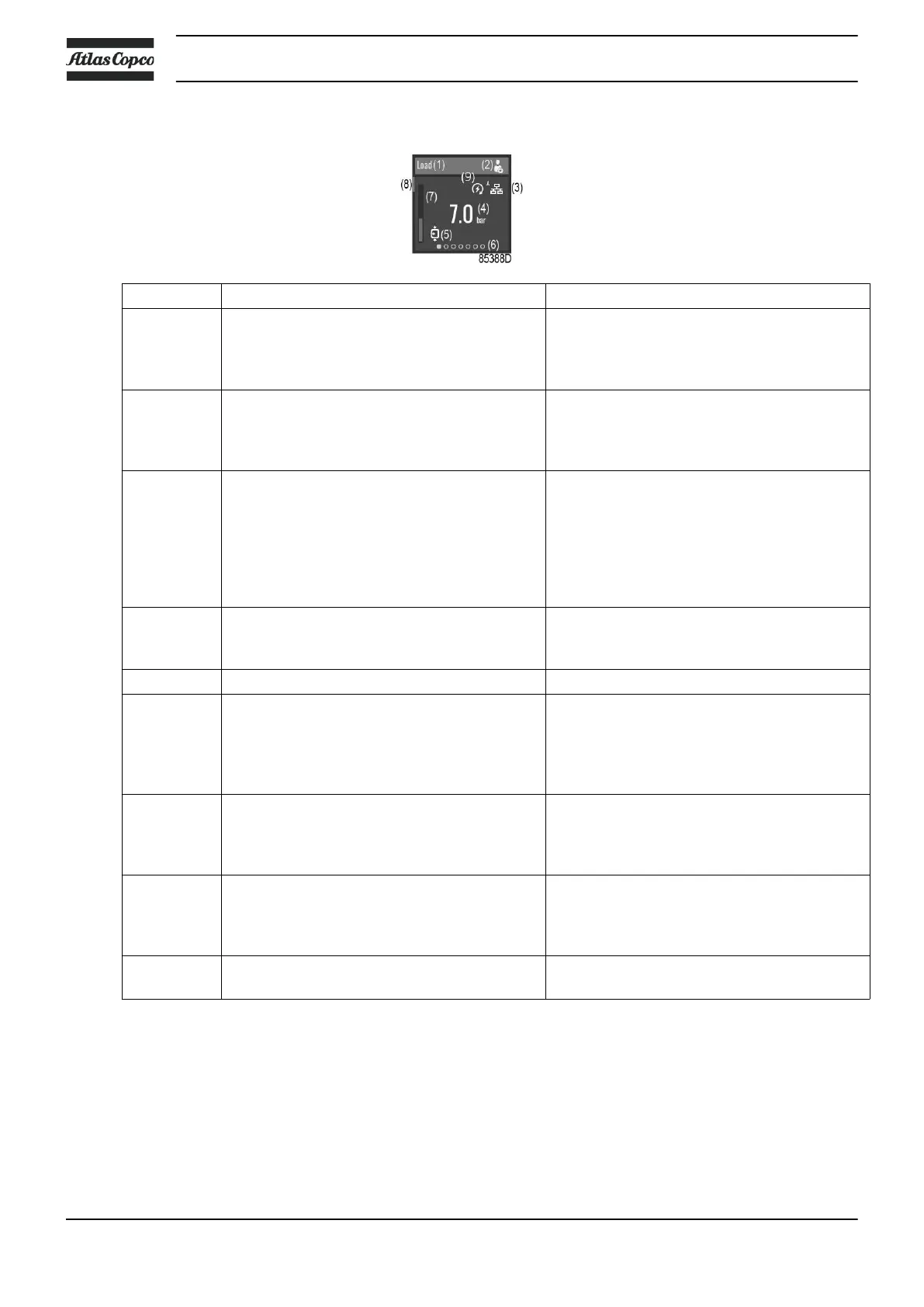

Description
Reference Designation Function
(1) Screen information On the main screen, the screen information
bar shows the current status of the machine.
When scrolling through menus, the name of
the current menu item is shown.
(2) Access level icon The access level icon shows the current
access level setting.
See Controller settings menu to switch
between User, Advanced or Service.
(3) Control mode icon The control mode icon shows the current
control mode setting.
• Local control via start/stop buttons
• Remote control via digital input(s)
• LAN control via the network.
When in Remote or LAN control, the start/
stop buttons on the controller will not work.
(4) Input value This field contains an input value, depending
on the type of the machine. In this case, the
current outlet pressure is shown.
(5) Status This icon shows the current status of the unit.
(6) Page indicator (Breadcrumbs) Indicates how many pages there are
available for a given menu item.
The page which is currently active is
indicated by a filled white circle.
Swipe left or right to go to another screen.
(7) Value bar This is an indicator for the input value, also
shown on the main screen. When the
regulation sensor is selected 2 extra load,
unload lines are shown.
(8) Scrollbar This is an indication of the vertical position in
the menu.
Swipe up or down to go to another menu
item.
(9) ARAVF icon The ARAFV icon is shown when the
Automatic Restart functionality is activated.
Parameters
Starting from the main screen, swipe left to scroll through predefined IO or counter data.
(optional)
