2.2 Air flow

Pack

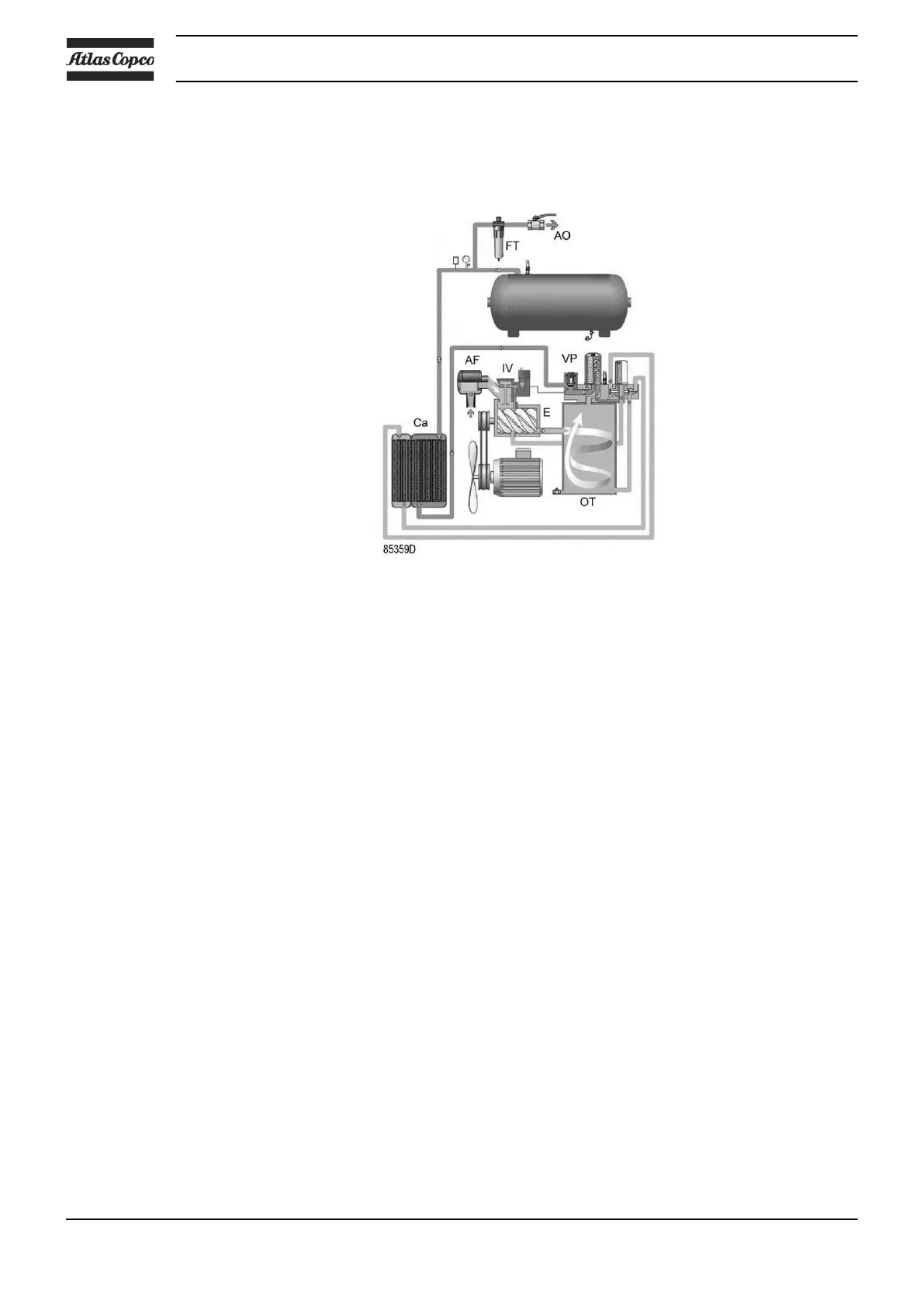

Air flow, G 15L, G 18 and G 22 Tank-mounted Pack

Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is

compressed. Compressed air and oil flow into oil separator/tank (OT). The air is discharged via

minimum pressure valve (Vp) and air cooler (Ca) towards the air outlet (AO).

Instruction book

14 2920 7119 21

Table of Contents4
Safety Precautions7
Safety Icons7
General Safety Precautions7
Safety Precautions During Installation8
Safety Precautions During Operation9
Safety Precautions During Maintenance or Repair10
Dismantling and Disposal12
General Description13
Introduction13
Air Flow16
Oil System18
Cooling System19
Regulating System20
Control Panel21
Electrical System22
Protection of the Compressor24
Air Dryer25
Controller26
Ontroller26
Control Panel27
Icons Used on the Display28
Main Screen29
Main Function30
Shutdown Warning32
Shutdown33
Service Warning36
Scrolling through All Screens38
Calling up Running Hours39
Calling up Motor Starts40
Calling up Module Hours40
Calling up Loading Hours41
Calling up Load Solenoid Valve41
Calling Up/Resetting the Service Timer42
Calling Up/Modifying Pressure Band Selection42
Calling Up/Modifying Pressure Band Settings43
Calling Up/Modifying the Unit of Temperature43
Calling Up/Modifying the Unit of Pressure43
Calling Up/Modifying Backlight Time44
Activating Automatic Restart after Voltage Failure44
Keyboard Lock45
Installation46
Installation Proposal46
Dimension Drawings48
Electrical Connections49
Pictographs52
Operating Instructions53
Initial Start-Up53
Starting55
Stopping57
Taking out of Operation58
Maintenance60
Preventive Maintenance Schedule60
Drive Motor61
Oil Specifications62
Oil, Filter and Separator Change64
PDX/DDX Filter Change (Option)66
Storage after Installation67
Service Kits67
Adjustments and Servicing Procedures68
Air Filter68
Coolers69
Safety Valve69
Belt Set Exchange and Tensioning70
Dryer Maintenance Instructions73
Problem Solving75
Technical Data78
Electric Cable Size78
Settings for Overload Relay and Fuses80
Reference Conditions and Limitations82
Compressor Data82
Instructions for Use84
Guidelines for Inspection85
