Full-Feature units

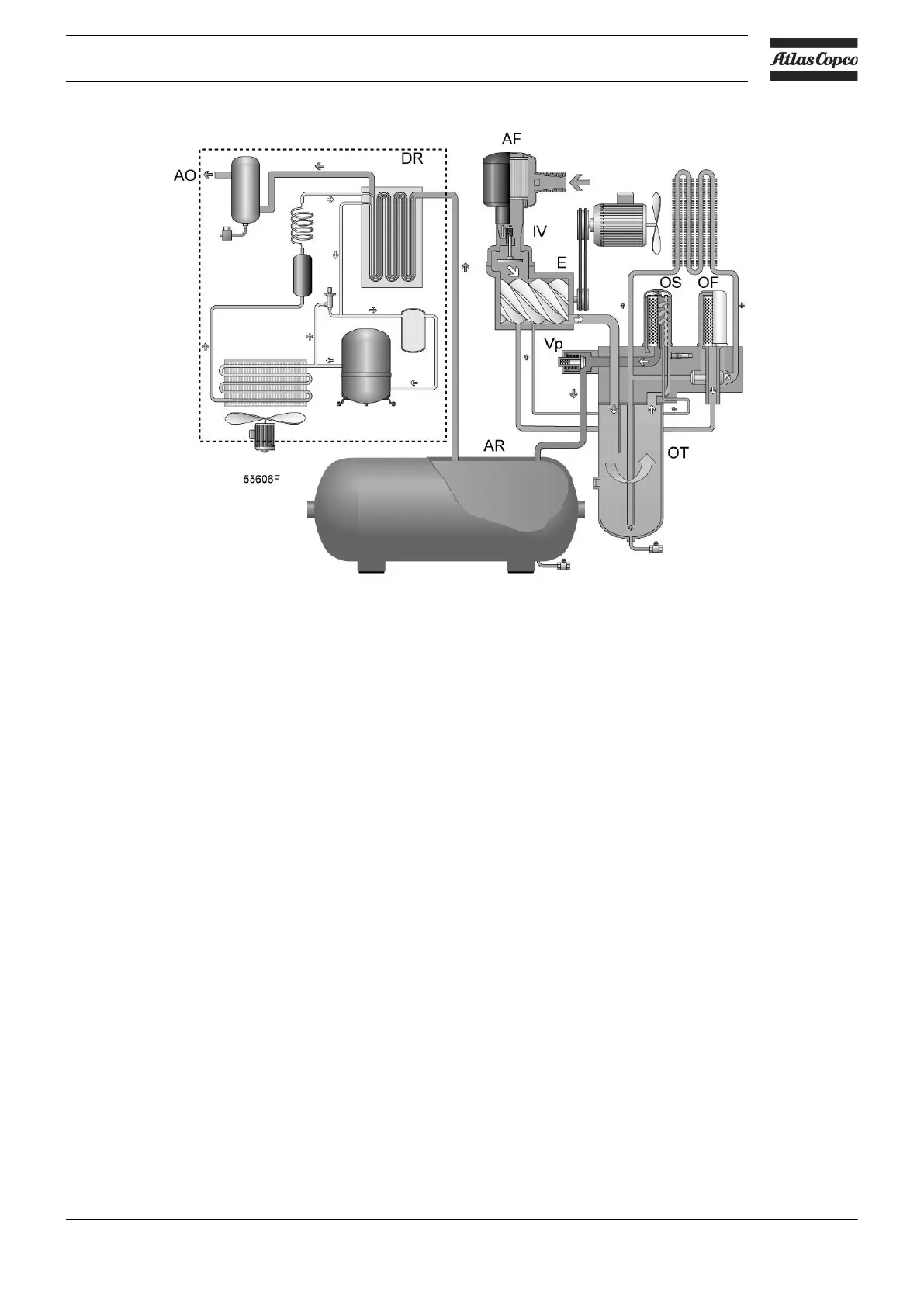

The cooling system of the Pack version comprises oil cooler (Co) and fan (FN). The fan, mounted
directly onto the motor shaft, generates the cooling air in order to cool the oil and the internal
parts of the compressor. On tank-mounted compressors, the air receiver is used as air cooler.
The condensate must be drained manually on a regular basis, see section Preventive
maintenance schedule.
The dryer (DR) of Full-Feature versions has a separate cooling fan and an automatic condensate
drain (see also section Air dryer).
