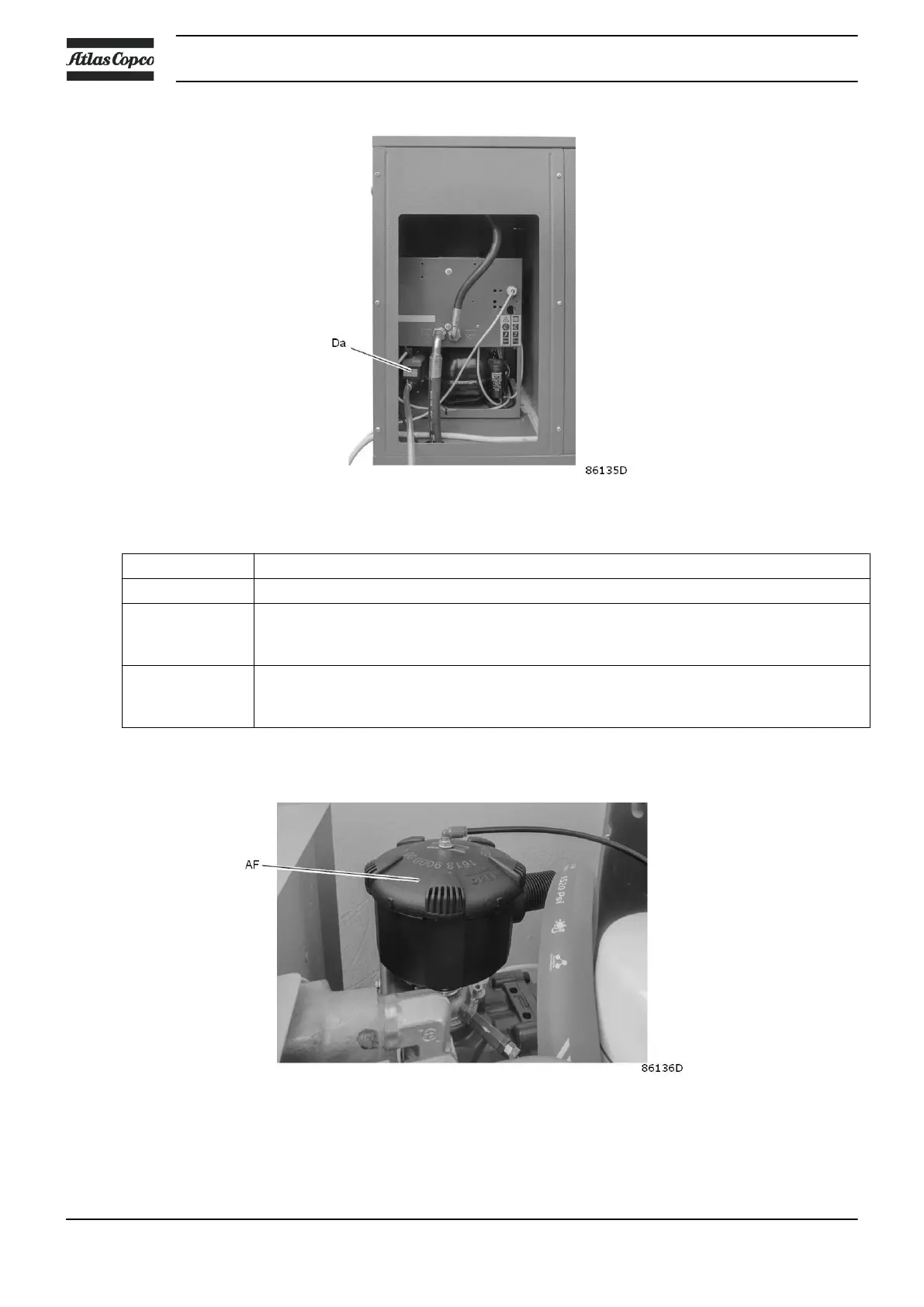

Automatic condensate drain
Step Action
1 Consult the installation instructions (see Installation).
2 Check that the electrical connections correspond to the local codes. The installation
must be earthed and protected against short circuits by fuses in all phases. An isolating
switch must be installed near the compressor.
3 Fit outlet valve (2), close it and connect the air net to the valve.
Connect condensate drain valve (4) of the air receiver and, if Full-Feature version, the
automatic drain outlet (Da) to a drain collector. Close the valve.
Oil system
Air filter
Instruction book
56 2920 7199 10
