2920 1462 00
6
Instruction book
1 Dryer
2 Air cooler
3 Fan
4 Oil cooler vent plug
5 Oil cooler
6 Unloader
7 Compressor element
8 Drive motor
9 Air filter
10 Air outlet
Y1 Loading solenoid valve

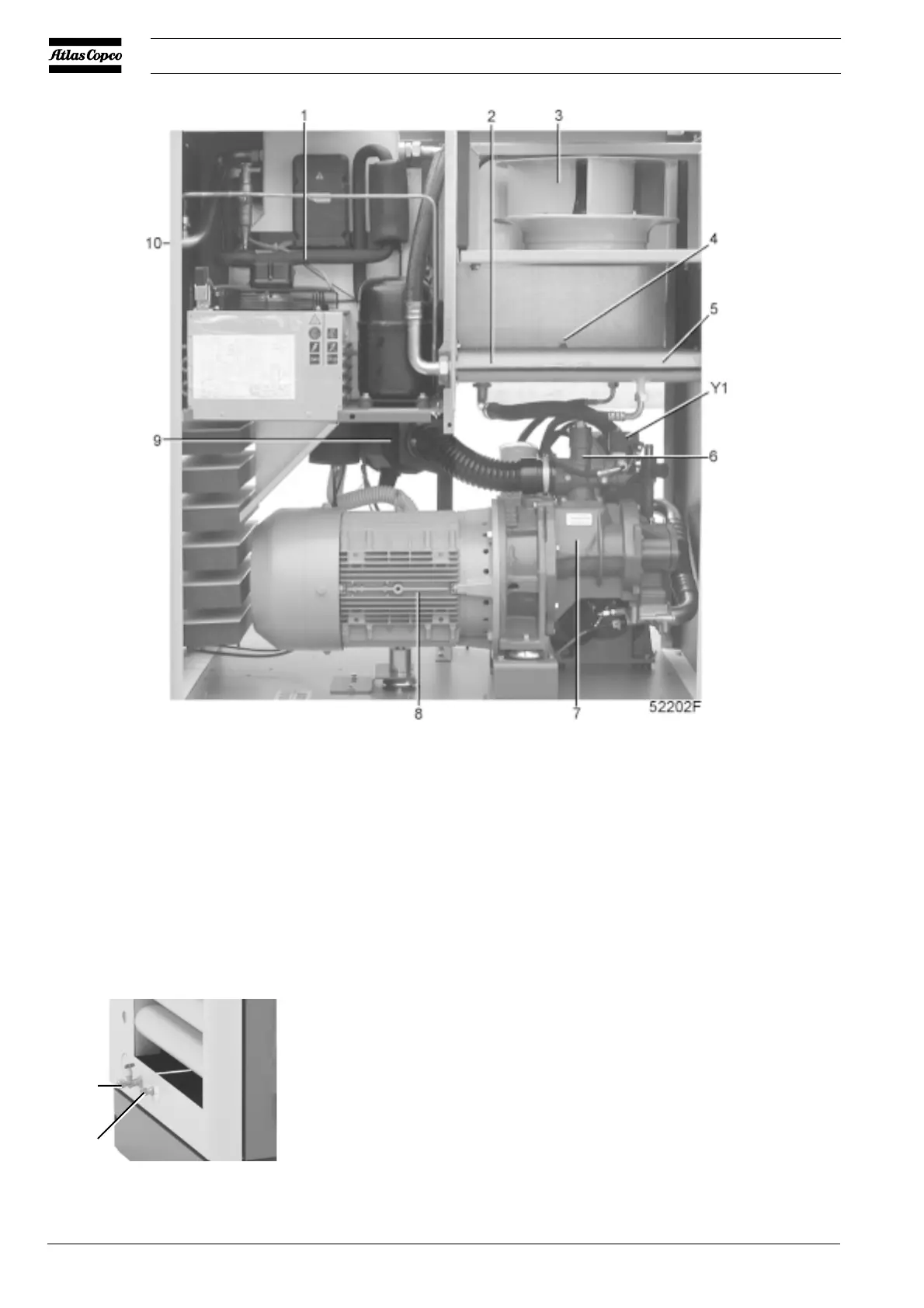

Fig. 1.5 GA22 Workplace Full-Feature
1 Condensate drain valve
2 Automatic condensate drain
Fig. 1.6 Condensate outlets
51100F
1
2
