Instruction book Industrial Air Division
2.3 Installation proposal (Figs. 11)
Ref. Description/recommendation
1 Install the compressor on a level floor suitable for taking
the weight of the compressor.
2 Compressed air outlet valve.
Ref. Description/recommendation
3 The maximum total pipe length (including
interconnecting piping between compressor and
receiver) can be calculated as follows:
∆P x d
5
x P
L=
_________________________
450 x Qc
1.85

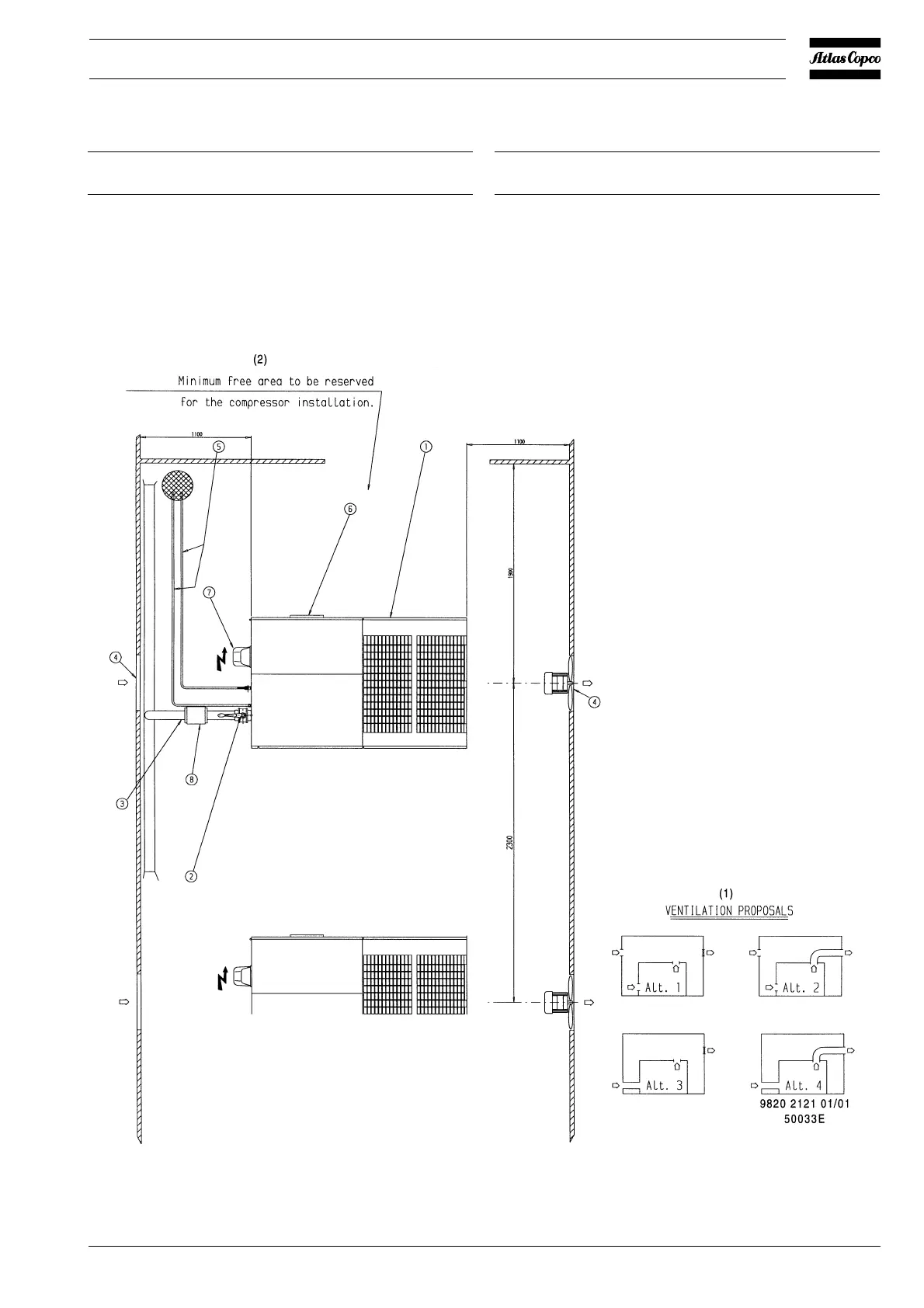

Fig. 11b. Installation proposal of GA90 VSD
