Industrial Air Division Instruction book
F1/F4. Fuses
K15. Contactor, fan motor
L1. Inductor
Q15. Circuit breaker, fan motor
Q16. Circuit breaker, invertor
S0. Isolator switch
T1. Transformer
T2. Transformer
U1. Invertor
1. Vibration damper
2. Nut (to be removed)
3. Cover

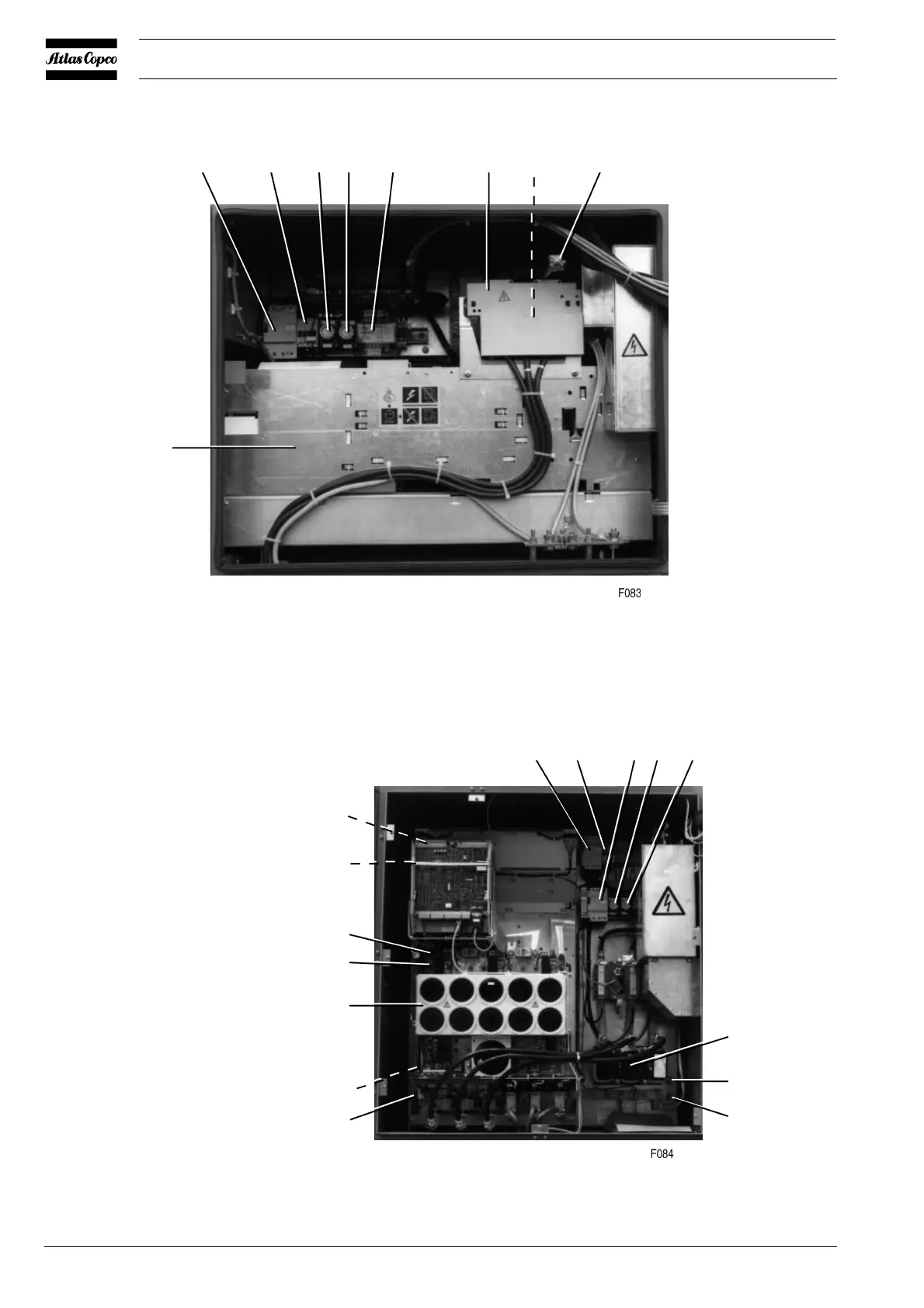

Figs. 8. Electric cabinets
Fig. 8a. Electric cabinet of GA50 VSD
Fig. 8b. Electric cabinet of GA90 (W) VSD
Q15
K15
F1
F2
T1
3
T2
SO
U1
Q15
K15
Q16
F1
F2
2
1
1
2
U1
1
2
L1
1
2
