Repair Instructions No.181.03/98
PHE 6 H / PHE 6 S

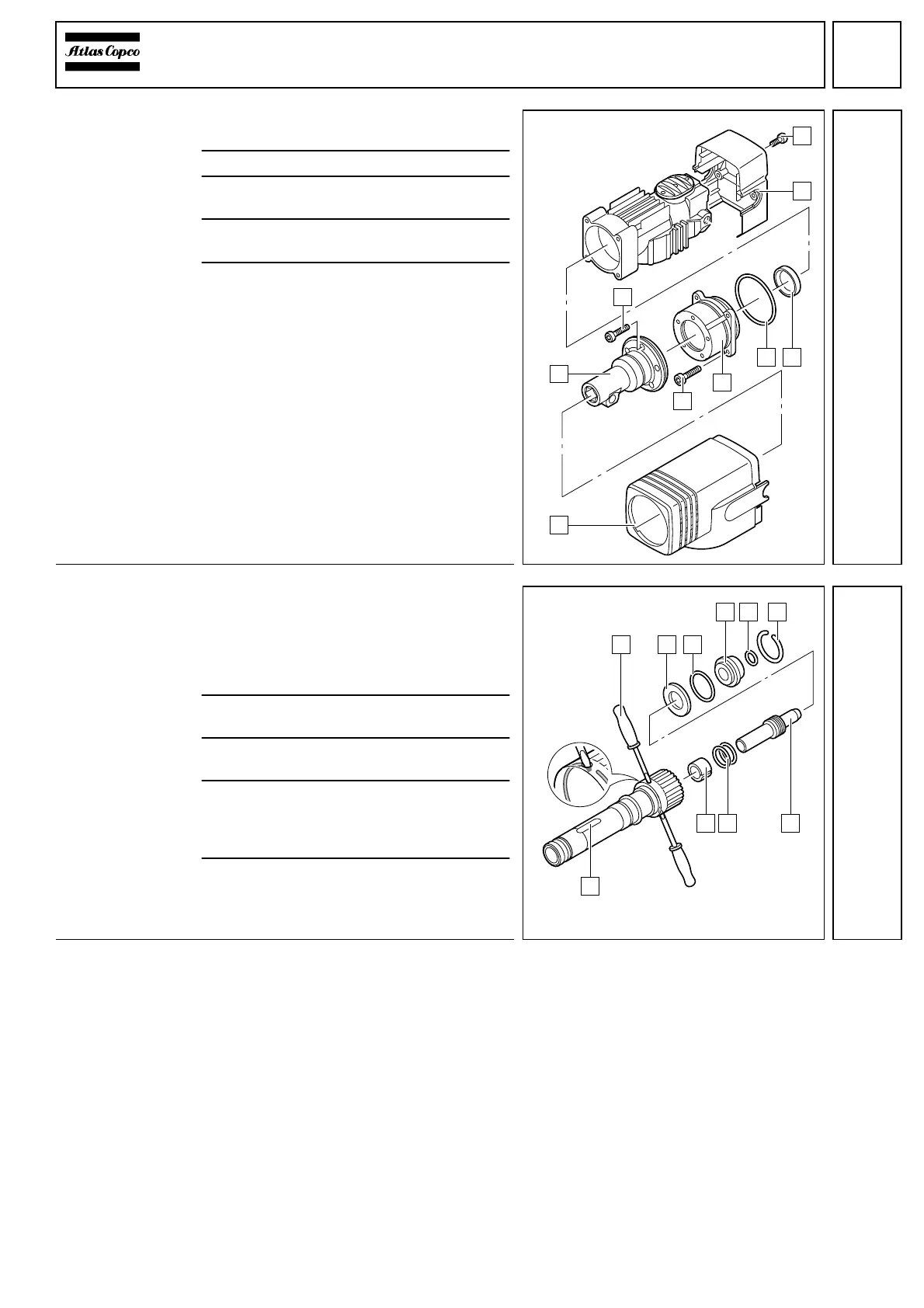

PHE 6 H:
Detaching the
bearing housing
1
Loosen both screws (4) and remove the
back part of the plastic housing (5).
2
Remove the plastic housing (1).
3
Loosen the screws (3) and remove the
nosepiece (2).
4
Loosen the screws (9) and remove the
bearing housing (8) with the O-ring (7).
5 Press the rotary shaft seal (6) from the
bearing housing (8).
PHE 6 S:
Dismantling the
spindle sleeve
1
Insert a screwdriver (1) into one of the four
service borings to lever off the round wire
ring (6). The screwdriver must remain in
the boring. Use a second screwdriver to
lever off the round wire ring through the
other service borings.
2
Take out the retainer (4) and remove the
O-ring (5).
3
Remove the recoil ring (2) and the rubber
ring (3).
4
Push out the anvil (7) with aid of a screw-
driver from the other side of the spindle
sleeve and remove the O-rings (8) from
the anvil.
5
Knock out the buffer (9) through the
grooves (A) in the spindle sleeve with aid
of a mandrel.
4
9
2
3
1
5
8
7 6
7
1
654
32
789
A
8
