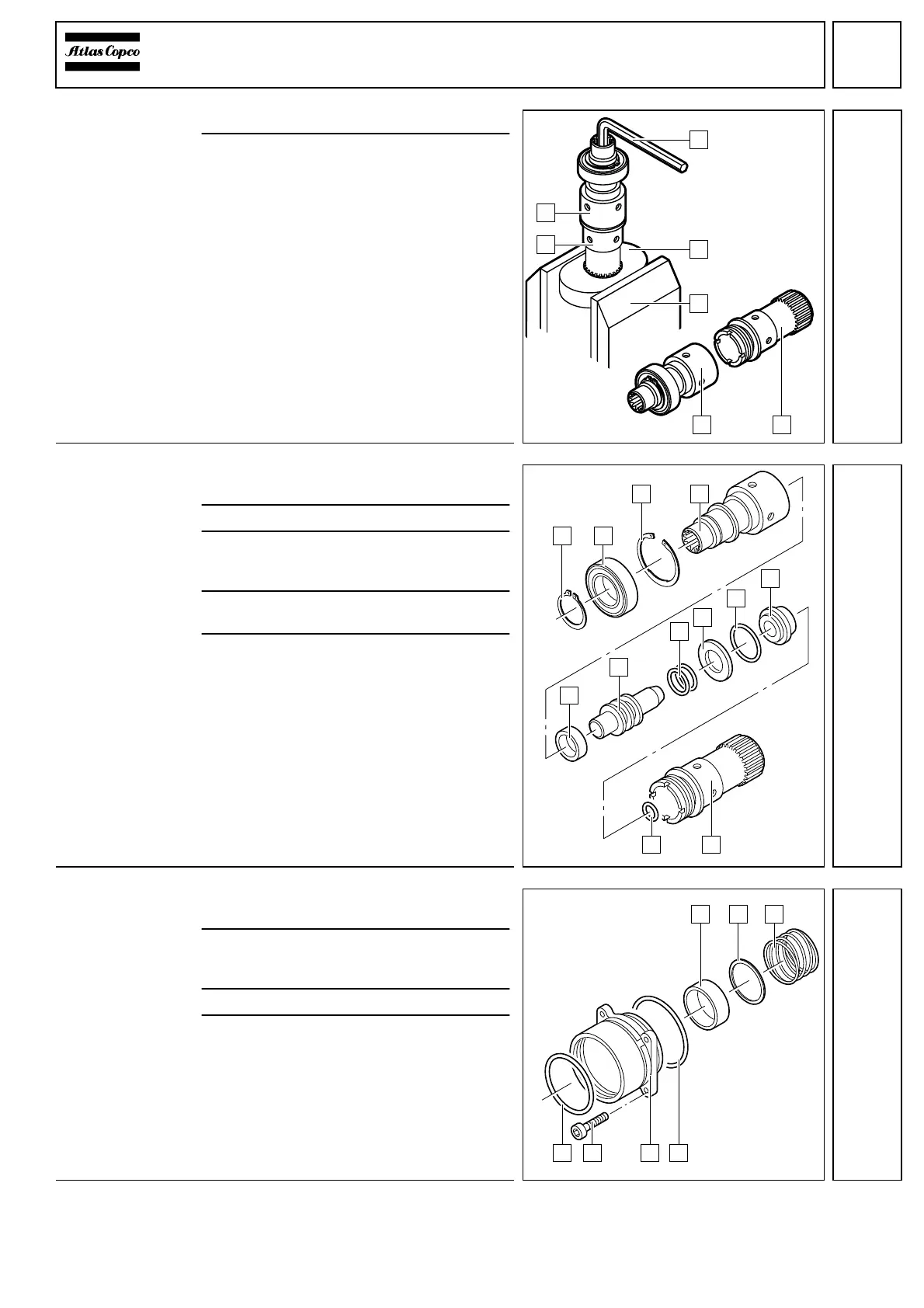

Repair Instructions No.181.03/98
PHE 6 H / PHE 6 S
PHE 6 H:
Separating the
driver from the
barrel
1 Fix the service tool (4) in a vice (5).
2 Insert the driver (2) with the barrel (1) into
the service tool (4) and unscrew the driv-
er (2) from the barrel (1) with aid of an Al-
len key (3).
PHE 6 H:
Dismantling the
spindle sleeve
1 Remove the spring ring (1) and press off
the ball bearing (2).
2 Remove the spring ring (3).
3 Fix the driver (4) in a vice with the anvil up
and knock out the tension ring (A) with aid
of a mandrel.
4 Remove the seal rings (8), the ring (7) and
the rubber ring (6) from the anvil (9).
5 Remove the retainer (5) and the O-ring (C)
from the barrel (B).
PHE 6 S:
Dismantling the
guide sleeve
1 Remove the disk (7). Loosen the four se-
cured screws (6).
2 Lever off the guide sleeve (5) from the ma-
chine. If necessary, hit the housing lightly
with a plastic hammer for support.
3 Remove the washer (4).
4 Remove the spring (3) and the disk (2)
and press out the ring (1).
1
5
4
2
3
2 1
9
1
7
6
5
4
2
8
9
A
BC
3
10
321
6 47 5
11
