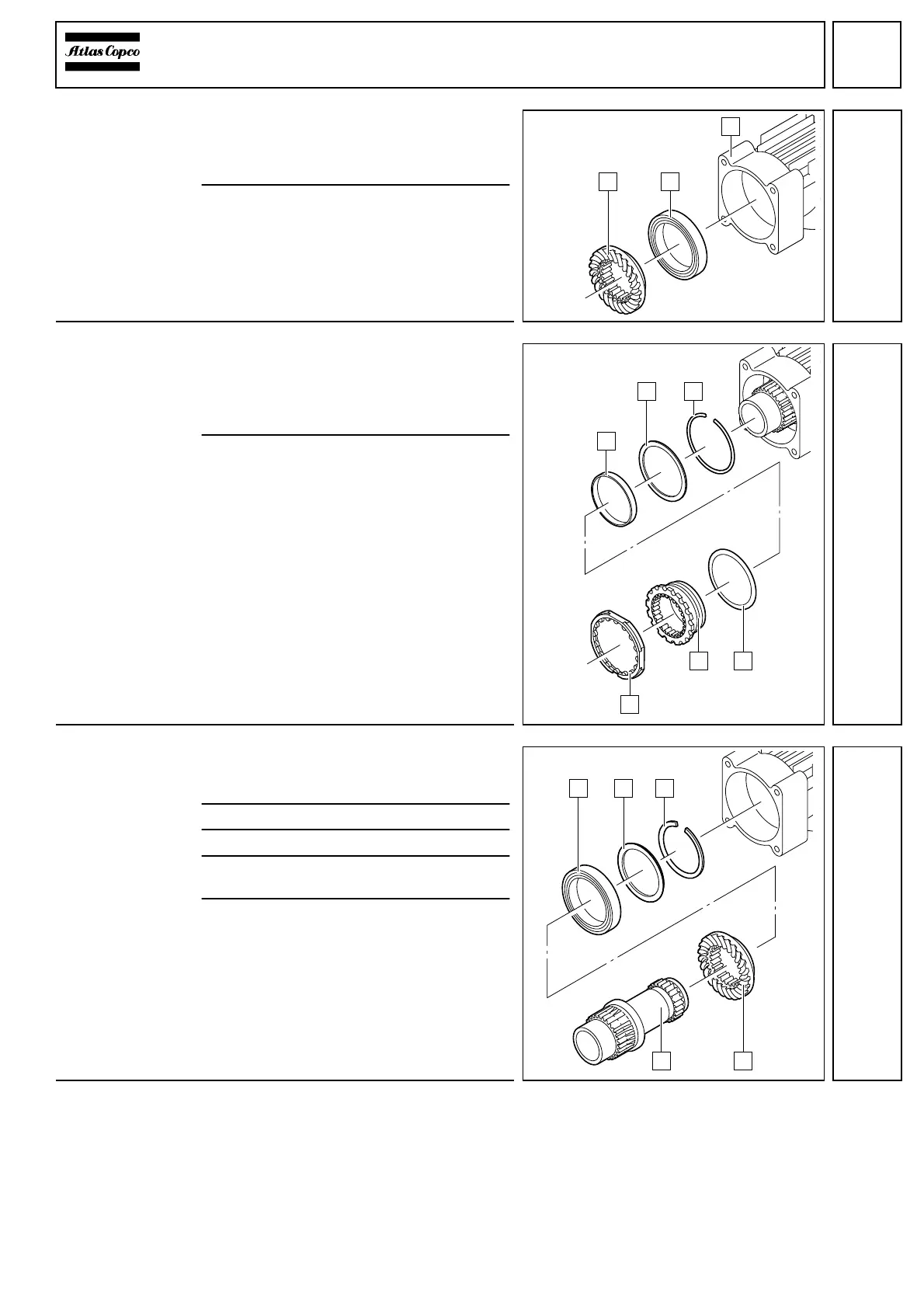

Repair Instructions No.181.03/98
PHE 6 H / PHE 6 S
PHE 6 H:
Detaching the
bevel gear
1 Knock the bevel gear (1) from the gear
housing (3) with aid of a mandrel (lead the
mandrel through the opening in the hous-
ing).
2 Remove the bearing (2) with aid of a pull-
ing-off device or knock the housing with
the opening against a wooden supporting
plate.
PHE 6 S:
Detaching the
rotary stop
1 Remove the following parts, hitting the
side of the machine lightly with a hammer
for support:
- locking ring (6) and
- sleeve (5)
2 Detach the spring ring (3) from the
sleeve (5) and remove the rings (2 and 4)
and the spacer (1).
PHE 6 S:
Detaching the
cylinder
1 Remove the cylinder (5) from the housing
by hitting the front part of the housing light-
ly with a plastic hammer.
2 Remove the spring ring (3).
3 Remove the spring washer (2).
4 Remove the bevel gear (4) with the bear-
ing (1).
5 Pull the bearing (1) from the bevel
gear (4).
1
3
2
12
1
6
5 4
32
13
1
5 4
32
14
