Atlas Copco XAHS 146 Dd S3B APP User Manual

- 36 -

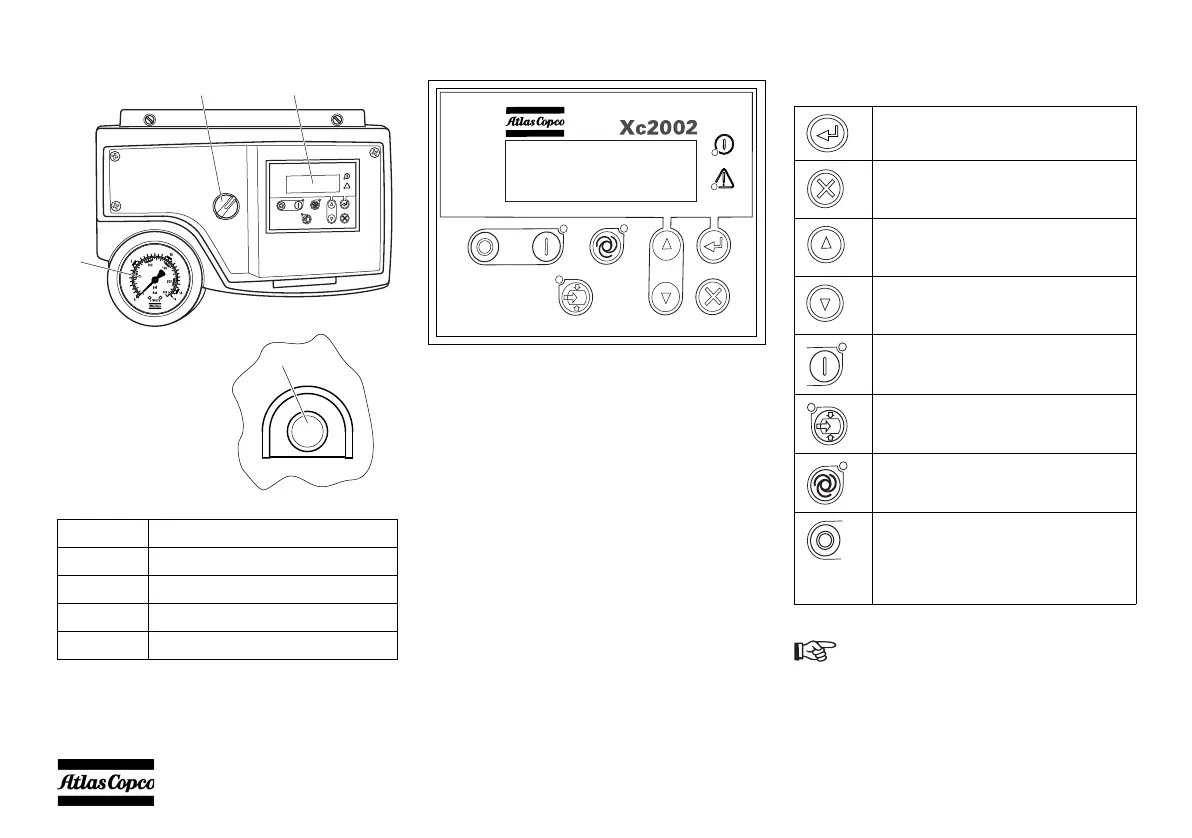

CONTROL PANEL XC2002™ MODULE
The Xc2002™ module is located inside the control
panel. This module will carry out all necessary tasks
to control and protect the compressors, regardless of
the use of the compressor.
This means that the Xc2002™ module can be used for
several applications.
Pushbutton and LED functions
Following pushbuttons are used on the Xc2002™
Reference Name
1 Emergency stop
2 Xc2002™ module
3 Pressure gauge
ON/OFF Power ON/OFF switch
(2)
(3)
(ON/OFF)
(1)
ENTER: Used to select and confirm
changed settings in the Parameters list.
BACK: Is used to leave the Alarm
pop-up window, to leave the Parameter
list and to leave menus without change.
UP: Is used to scroll through the
display information and to adjust
parameter values upwards.
DOWN: Is used to scroll through the
display information and to adjust
parameter values downwards.
START: Is used to start the unit in
Manual Mode.
LOAD: Is used to load the
compressor.
AUTO-Mode switch between Local
and Auto/REMOTE-MODE.
STOP: Is used to stop the unit in
Manual or Remote Load Mode. When
the unit is stopped with the stop button
in Remote Load Mode, it will
automatically go to Manual Mode.
To connect remote function, contact
Atlas Copco.
