Alarm Display (pop-up window)
In case an Alarm occurs, a pop-up window will
automatically be displayed for as long as the alarm is
active, no matter which view is active. The flashing
red alarm LED will light up. The alarm icons will be
shown together with an acknowledgement check-box.
Push the ENTER button to acknowledge the alarm.
When the alarm has been acknowledged, a V-
marking will appear in the check-box and the red
alarm LED will light up continuously.
An Alarm Display can always be left by pushing the
BACK button.
If more than one alarm occurs, it is possible to scroll
through the alarm messages with the UP and DOWN
pushbuttons. The most recent alarm will be placed on
the bottom of the list (meaning the older alarm stays
at the display when a new alarm comes up).

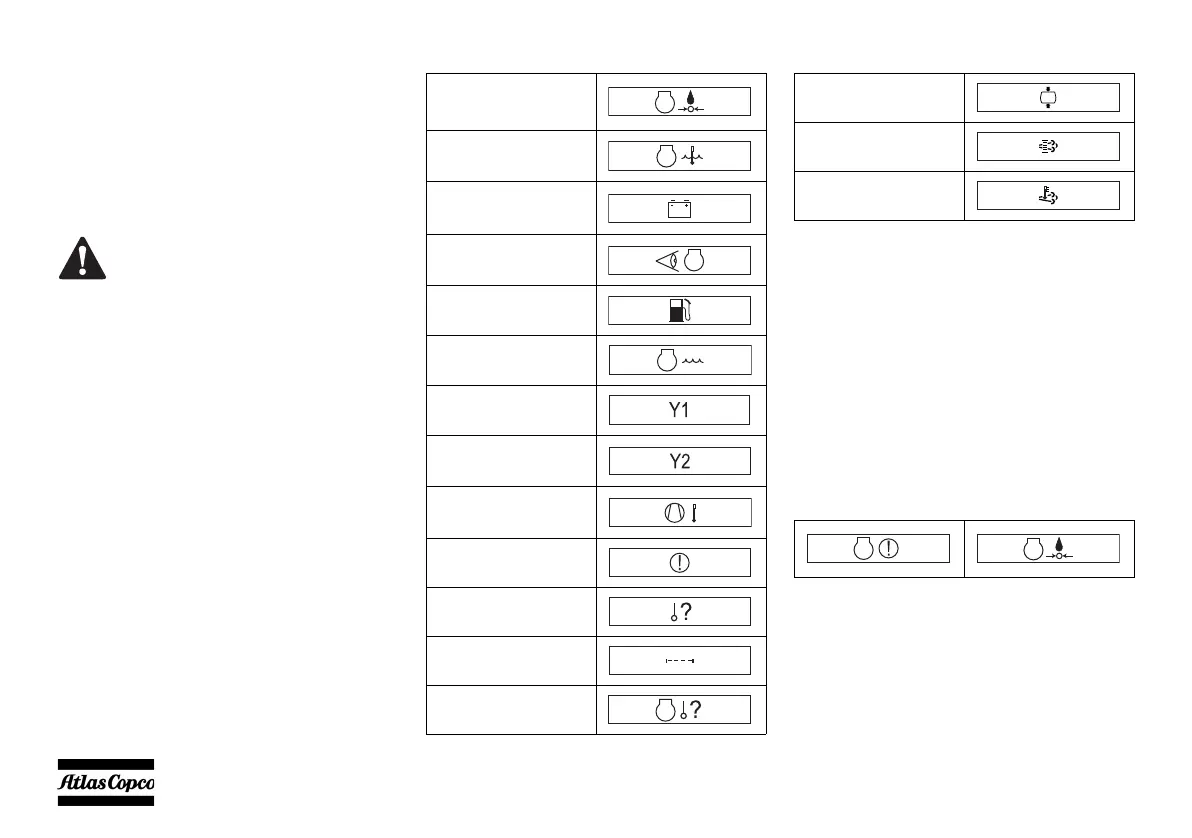

List of possible alarms:
If a shutdown comes up, the Shutdown Display is
shown.
In the event of an alarm as stated in the list below
• Engine Sensor failure
• Fuel Temperature high
• Fuel Pressure low
• Coolant Temperature high
• Injector failure
• Oil Pressure low
• Air Inlet temperature high
• Turbo boost pressure high
At least two pop-ups will appear, a general (1) and a
specific e.g. Oil Pressure Low (2).
In all other cases of an engine alarm only the general
alarm pop-up (…..) will appear.
In both cases the user can enter a special menu (DM1)
and scroll through to check the details concerning the
actual Warning/Shutdown.
An alarm should always be
acknowledged before solving the
problem that causes the alarm.
Low Oil Pressure
High Coolant
Temperature
Charging Alternator
XDEC
Low Fuel Level
Low Coolant Level
Service Timer 1
Service Timer 2
Element Temperature
Alarm
Sensor Failure
Airfilter
Engine Sensor Failure
Vessel Pressure
Need to start Stationary
Regeneration
Stationary Regeneration
in progress
(2)
To Next Page
