Atlas Copco XRVS 1050 CD4 C3 WUX User Manual

- 28 -

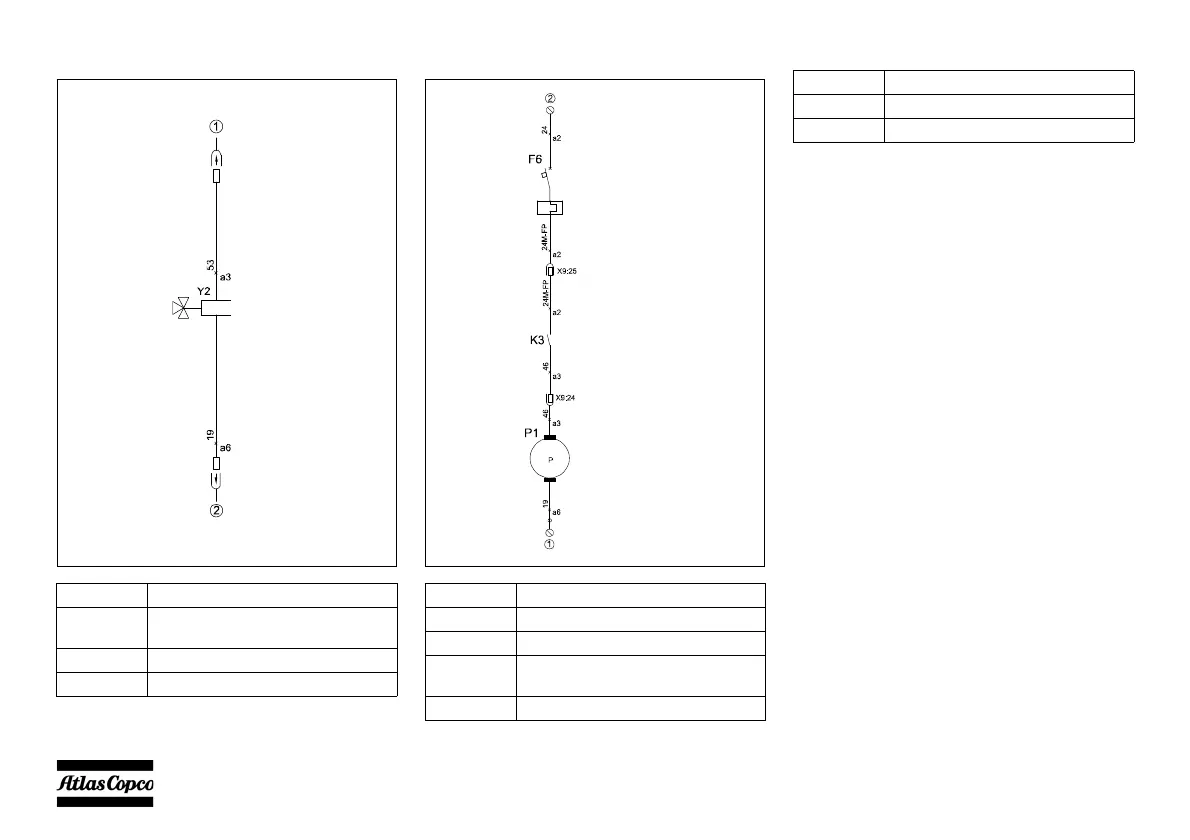

Bleeder valve Electrical fuel pump
Reference Name
1 Connect to digital high output in
cubicle default: H-OUT 07
2 Connect to 19 in cubicle
Y2 Bleeder Valve
Reference Name
1 Connect to 19 in cubicle
2 Connect to 24 in cubicle
3 Connect to H-OUT 06 in spare I/O
box
P1 Refueling Pump
Reference Name
K3 Relay, Refueling Pump
F6 Circuit breaker 10A
