Atlas Copco ZT-90 - Main Screen Menu

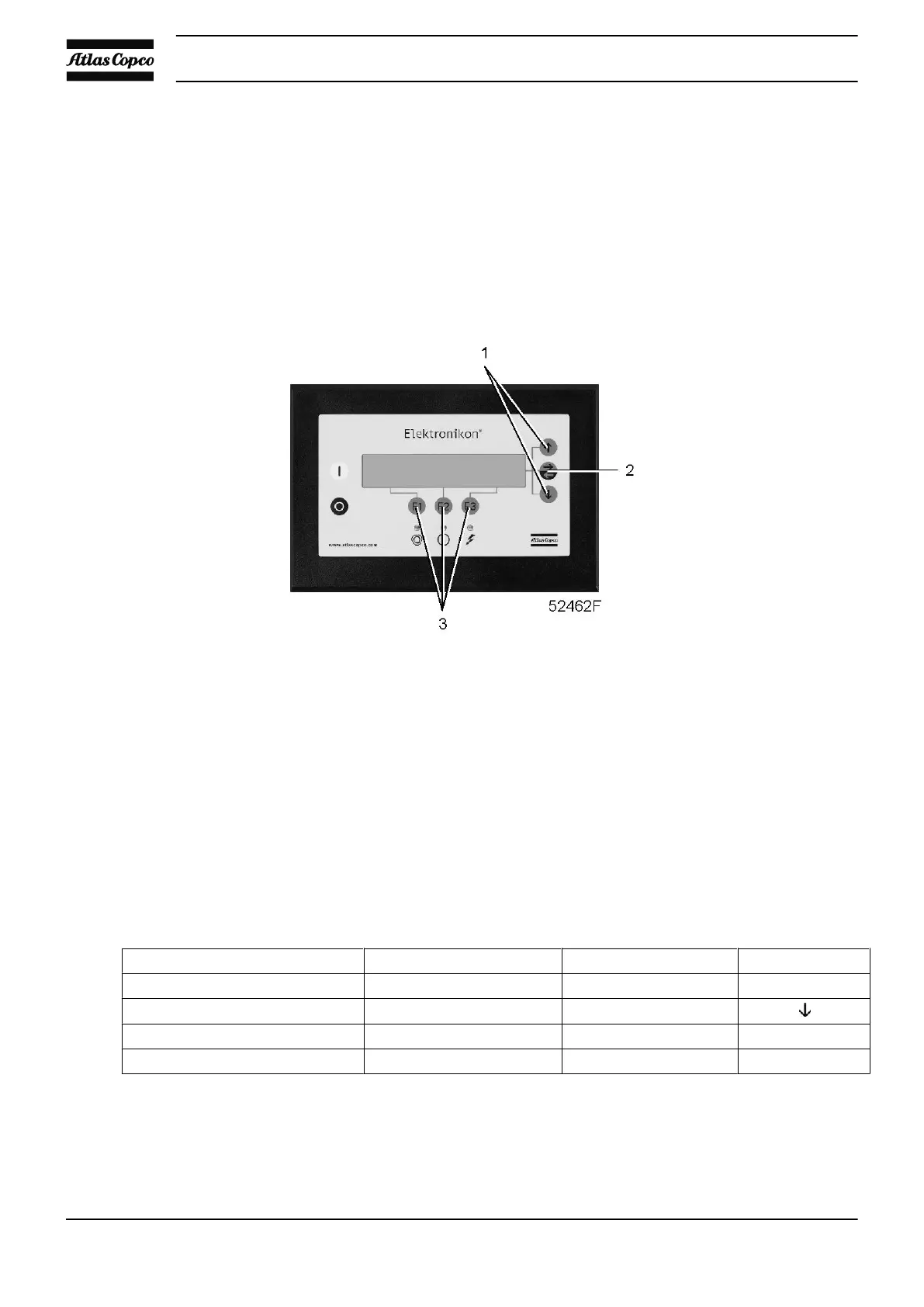

• Either press the tabulator key (2) to select this menu,
• or use the arrow down key (1) until the desired submenu is followed by a horizontal arrow and then press
the tabulator key (2) to select this menu.
The arrow down key (1) can be used for a quick look at the actual compressor status.
3.8 Main screen menu
Function
Control panel
The Main screen menu shows the status of the compressor operation and is the gateway to all functions
implemented in the regulator.
Procedure
The Main screen is shown automatically when the voltage is switched on.
If the function or arrow keys (1, 2 and 3) are not used for some minutes, the regulator will automatically return
to the Main screen.
Whenever displayed on a submenu screen, press the “Mainscreen” (F1) key to return to the Main screen.
Example of Main screen of ZR/ZT 55 up to ZR/ZT 90
“Compressor Outlet” 7.5 bar
.
“Automatically Loaded”
“Menu” “Unload”
F1 F2 F3
The display indicates:
• The name of the sensor and its actual reading
• Messages regarding the compressor operating condition
• Just above the function keys (3), the actual functions of these keys
