30.3.8 Pin Driver Strength

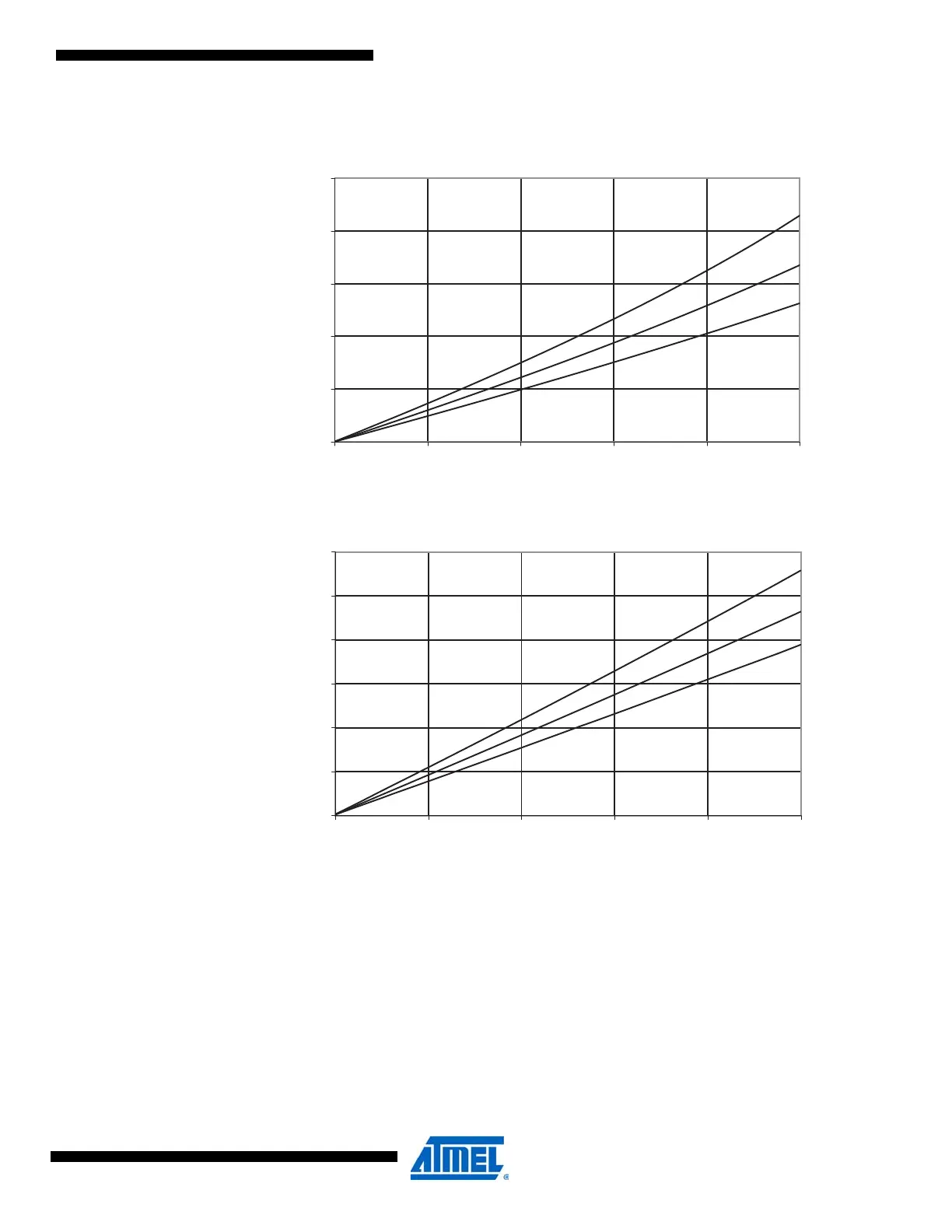

Figure 30-115.ATmega88A: I/O Pin Output Voltage vs. Sink Current (V
CC
= 3 V)
Figure 30-116.ATmega88A: I/O Pin Output Voltage vs. Sink Current (V
CC
= 5 V)
85 °C
25 °C
-40 °C
0
0.2
0.4
0.6
0.8
1
048 12 16 20
I
OL
(mA)
V
OL
(V)
85 °C
25 °C
-40 °C
0
0.1
0.2
0.3
0.4
0.5
0.6
048 12 16 20
I
OL
(mA)
V
OL
(V)
