30.3.10 BOD Threshold

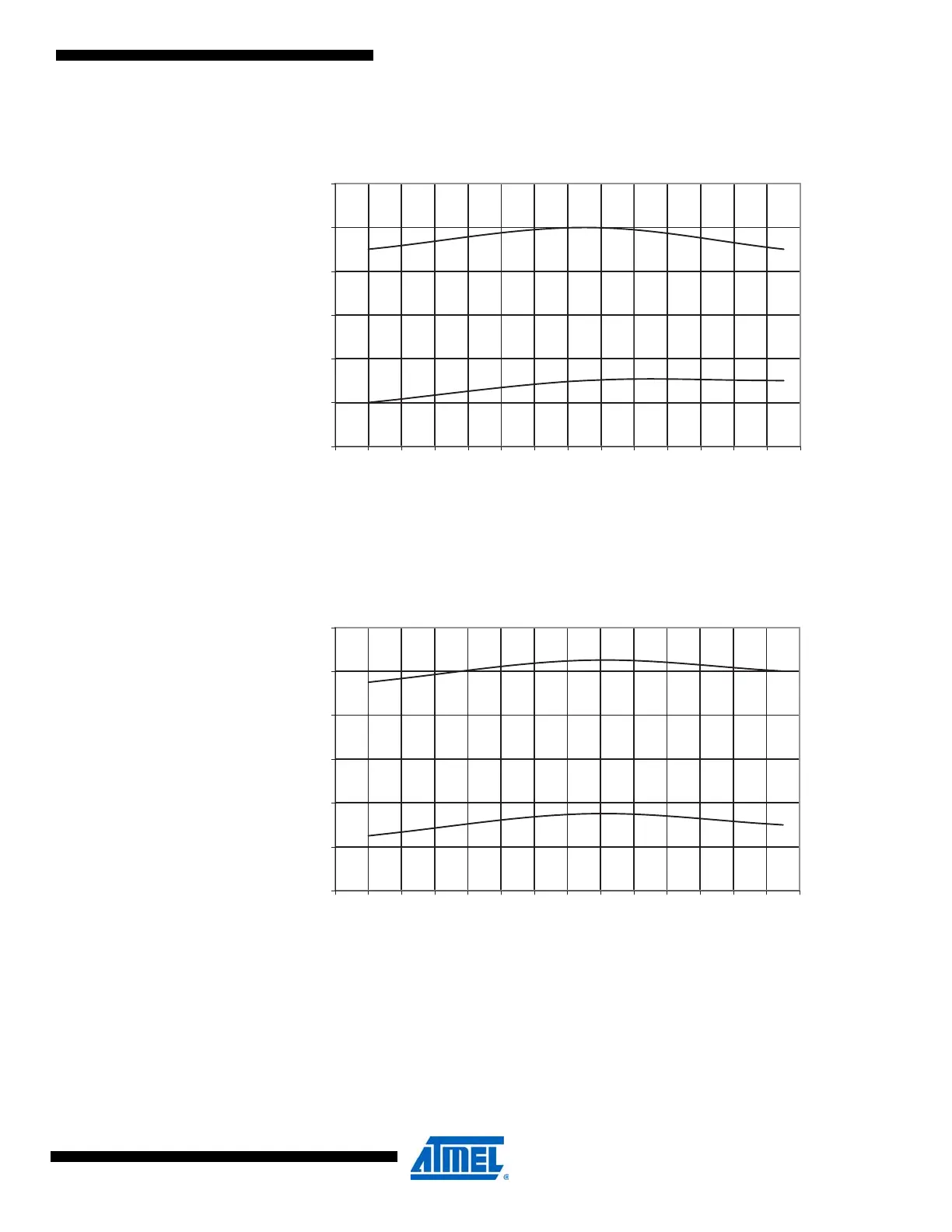

Figure 30-125.ATmega88A: BOD Thresholds vs. Temperature (BODLEVEL is 1.8 V)
Figure 30-126.ATmega88A: BOD Thresholds vs. Temperature (BODLEVEL is 2.7 V)
Rising Vcc
Falling Vcc
1.77
1.78
1.79
1.8
1.81
1.82
1.83
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 8090
Temperature (°C)
Threshold (V)
Rising Vcc
Falling Vcc
2.64
2.66
2.68
2.7
2.72
2.74
2.76
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 8090
Temperature (°C)
Threshold (V)
