ATmega48A/PA/88A/PA/168A/PA/328/P

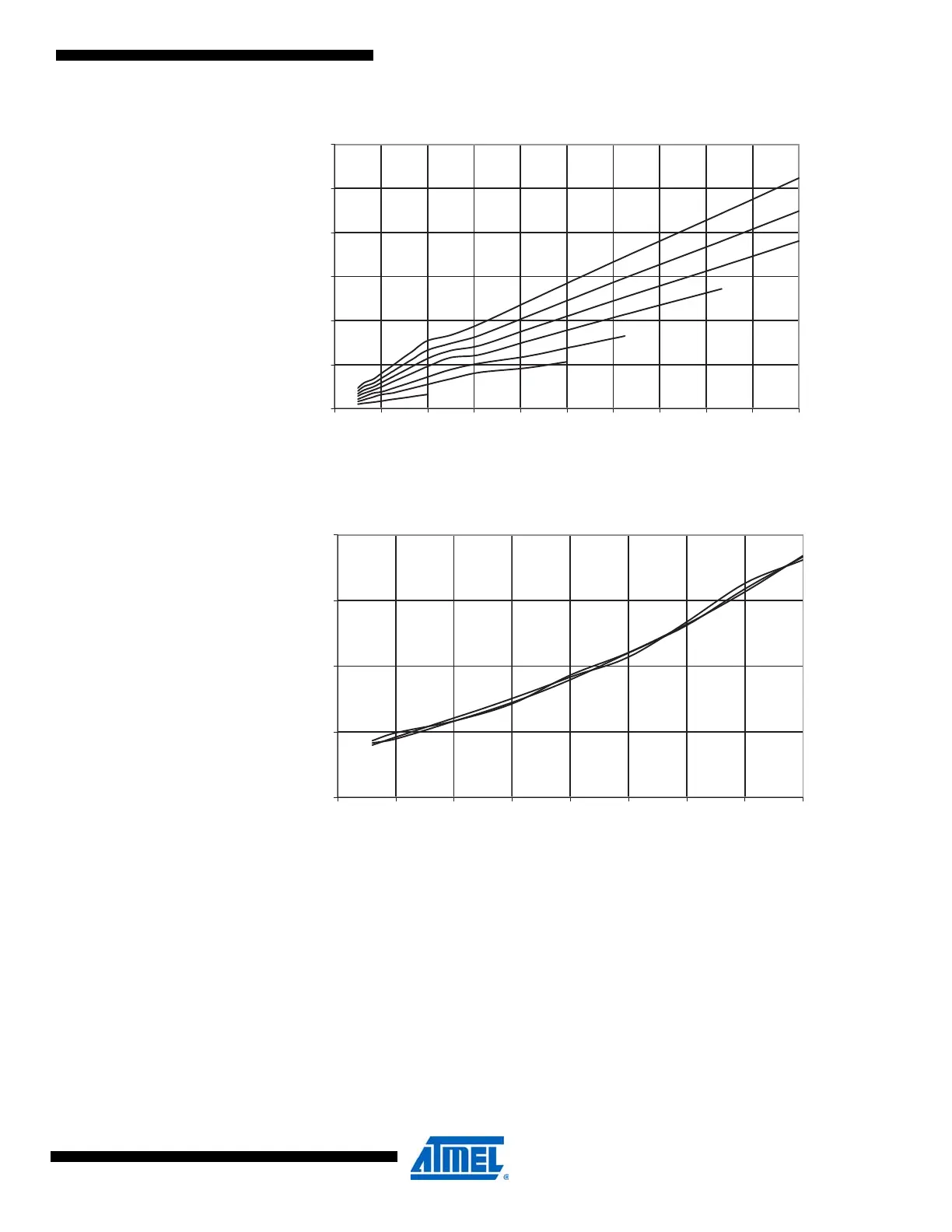

Figure 30-143.ATmega88PA: Active Supply Current vs. Frequency (1 - 20MHz)
Figure 30-144.ATmega88PA: Active Supply Current vs. V
CC
(Internal RC Oscillator, 128kHz)
5.5 V
5.0 V
4.5 V
0
2
4
6
8
10
12
02468 10 12 14 16 18 20
Frequency (MHz)
I
CC
(mA)
1.8 V
2.7 V
3.3 V
4.0 V
85 °C
25 °C
-40 °C
0
0.03
0.06
0.09
0.12
1.522.533.544.555.5
V
CC
(V)
I
CC
(mA)
