30.4.5 Power-save Supply Current

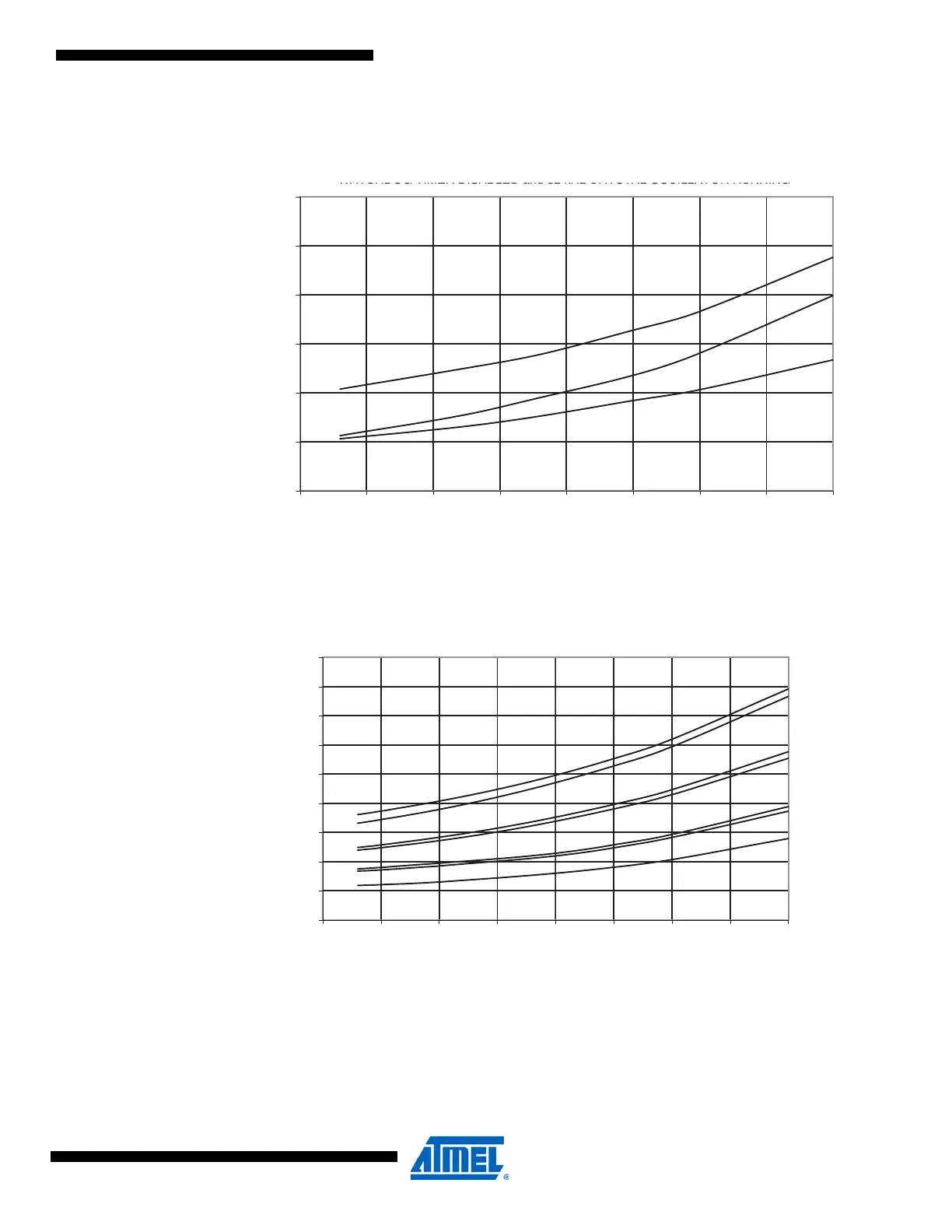

Figure 30-154.ATmega88PA: Power-Save Supply Current vs. V
CC
(Watchdog Timer Disabled
and 32kHz Crystal Oscillator Running)
30.4.6 Standby Supply Current
Figure 30-155.ATmega88PA: Standby Supply Current vs. Vcc (Watchdog Timer Disabled)
WATCHDOG TIMER DISABLED and 32 kHz CRYSTAL OSCILLATOR RUNNING
0
0.5
1
1.5
2
2.5
3
1.5 2 2.5 33.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
85 °C
25 °C
-40 °C
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
0.18
1.522.533.544.555.5
V
CC
(V)
I
CC
(mA)
6MHz_xtal
6MHz_res
4MHz_xtal
4MHz_res
450kHz_res
2MHz_xtal
2MHz_res
