30.7.5 Power-save Supply Current

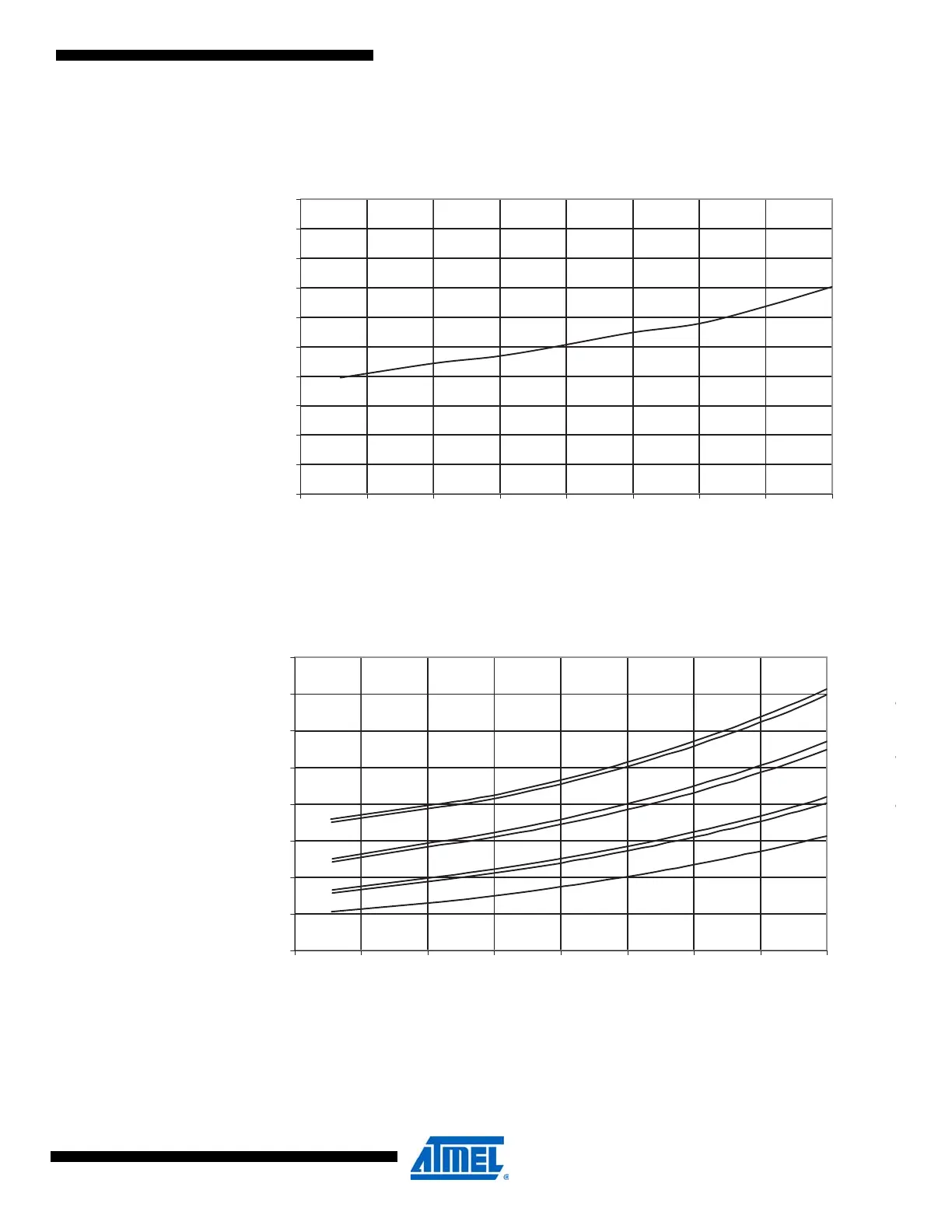

Figure 30-295.ATmega328: Power-Save Supply Current vs. V
CC
(Watchdog Timer Disabled
and 32kHz Crystal Oscillator Running)
30.7.6 Standby Supply Current
Figure 30-296.ATmega328: Standby Supply Current vs. Vcc (Watchdog Timer Disabled)
25 °C
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
6MHz_xta
6MHz_re
4MHz_xta
4MHz_re
2MHz_xta
2MHz_re
1MHz_re
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
