Atmel SAME70-XPLD User Manual

4.3.2.2. J501 Header
J501 is a 8-pin header with 2.54mm pitch. It is not populated by default and can be used to connect to
Arduino Shields. It allows power distribution (3.3V and 5V) to any Arduino Shield connected on the
SAME70-XPLD board.

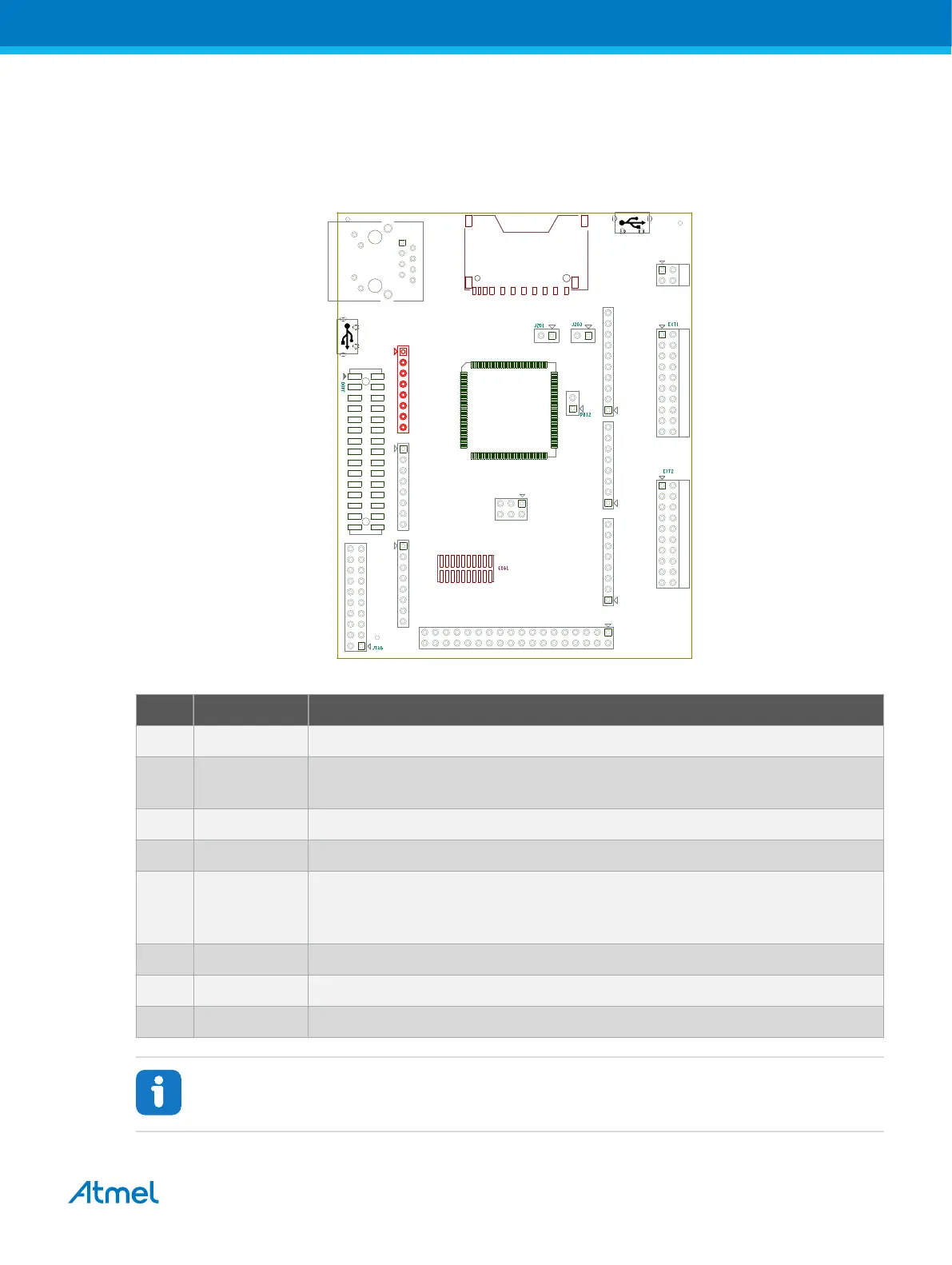

Figure 4-5 J501 Header
J406 - SAME70 De bu g (SWD)
J600 - SDCARD Socket
(Bottom Side )
J900
DEBUG USB
Co resight 20 - SWD + ETM
(Bottom Side )
VDDCORE VCC_MCU_3V3
J200 - ERASE
J700 - Ethern et RJ45
J302
Ta rget USB
CAMERA
INTERFACE
J501 - Powe r
OPTION
J502 - An alog Low
OPTION
J504 - An alog High
OPTION
J506 - SPI
OPTION
OPTION
J500 - Digital Hig h
OPTION
J503 - Digital Low
OPTION
J505 - Co mmunicat ion
OPTION
J507 - Digital Extra
OPTION
J402 - Exte nsion Heade r 2 J401 - Exte nsion Heade r 1 J101 - Powe r He ader
Table 4-4 J501 Header IOs
Pin PCB Marking Function
1 VBAT Not used on SAME70-XPLD board. Connected to testpoint TP910
2 IOREF ADVREF. Reference voltage for the analog inputs of the SAM E70
microcontroller. Actually connected to 3.3V.
3 RESET System reset
4 3V3 Main 3.3V supply - generated by the on-board regulator.
5 5V0 Main 5.0V supply (ouput or input). In case that pin is used as power supply
source, do check the recommendations given in Power Sources on page 8
section.
6 GND System ground
7 GND System ground
8 VIN Not connected by default. Optional 5Vcc supply for any Arduino Shield.
Info: Pin 8 is connected to the SAME70-XPLD board through an 0R serial resistor. It is
necessary to mount 0R resistor R623 to enable the functionality.
Atmel SAME70-XPLD [USER GUIDE]
Atmel-44050A-SAME70-XPLD_User Guide-12/2015
18
