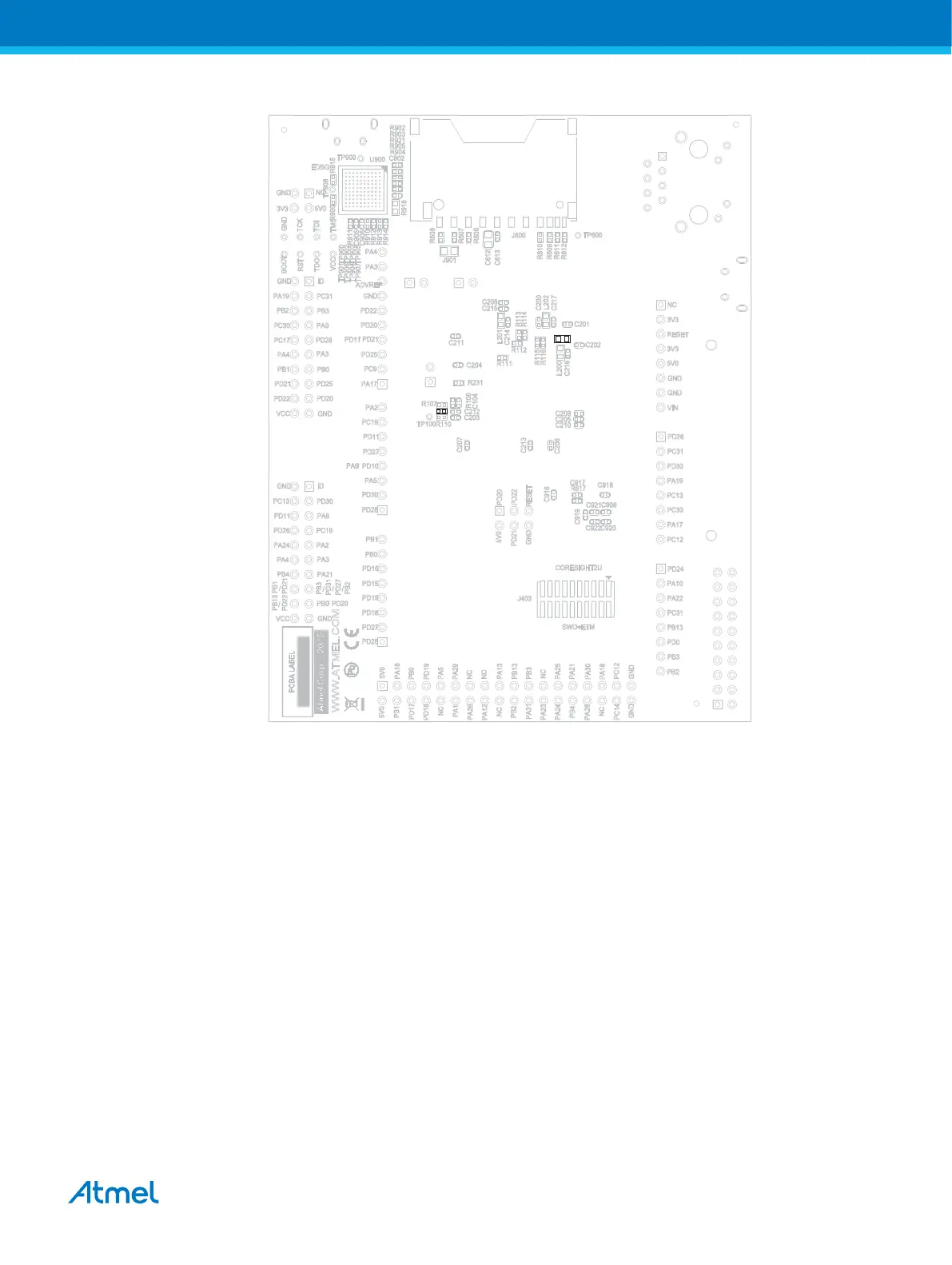

Figure 4-29 Zero Ohm Resistors Position – Bottom Side
R624
R122
4.6. Embedded Debugger Implementation
SAME70-XPLD contains an Embedded Debugger (EDBG) that can be used to program and debug the
ATSAME70Q21 using Serial Wire Debug (SWD). The EDBG also includes:
• a Virtual Com port interface over UART
• an Atmel Data Gateway Interface over SPI
• an I
2
C channel
• connections to four of the SAM E70 GPIOs
Atmel Studio can be used as a front end for the Embedded Debugger.
4.6.1. Serial Wire Debug
The Serial Wire Debug (SWD) uses two pins to communicate with the target. For further information on
how to use the programming and debugging capabilities of the EDBG, see Embedded Debugger on page
7.
Atmel SAME70-XPLD [USER GUIDE]
Atmel-44050A-SAME70-XPLD_User Guide-12/2015
41
