Atmor Thermo Pro2 Series - Page 6

6

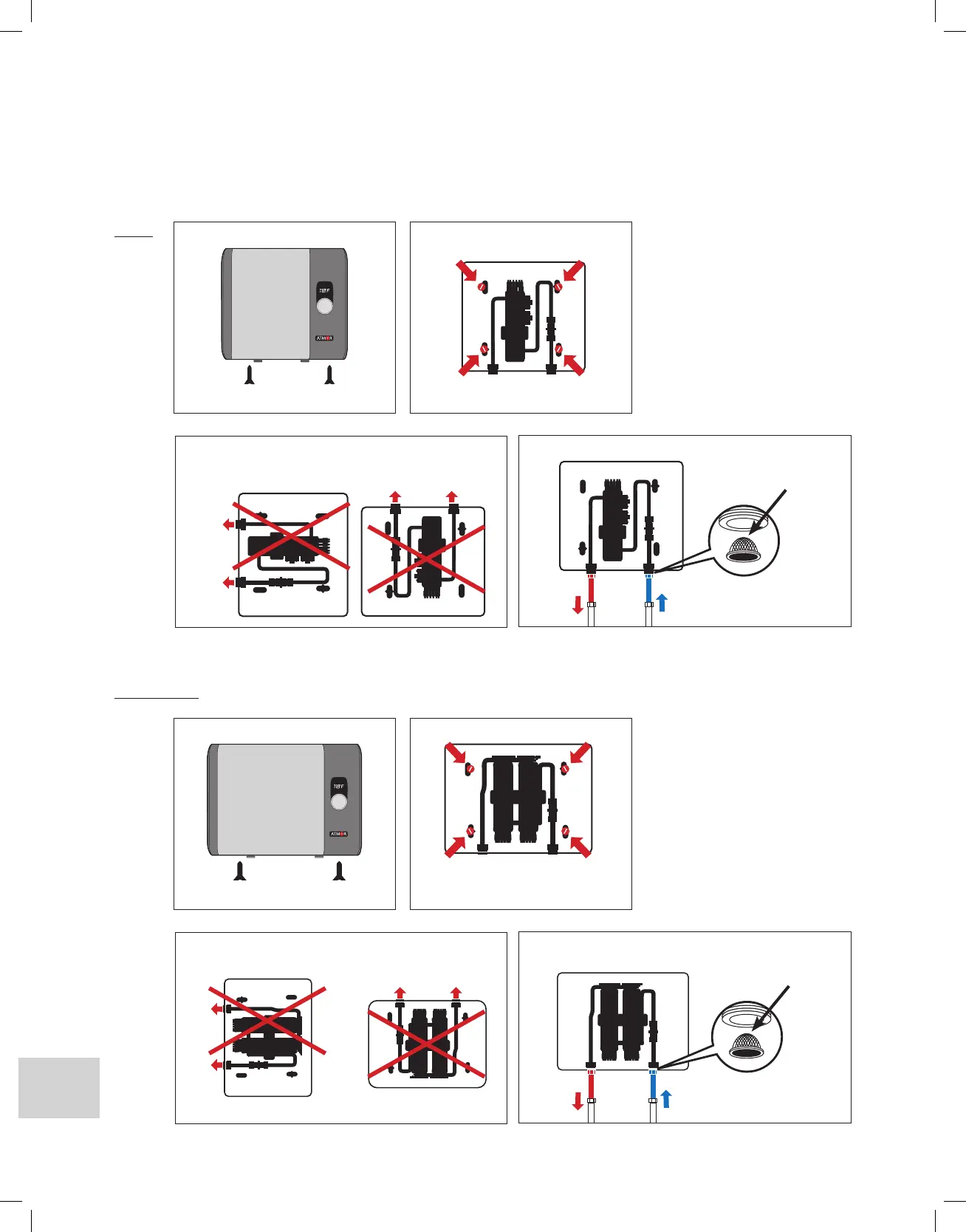

a. Remove the appliance cover. (Heater cover) (gure 3)
b. Mount the unit on the wall with 4 screws at the marked points (gure 4)
c. Make sure the unit is leveled horizontally, with water inlets and outlets at the bottom
(g.5)
24kW, 29kW
18kW
Fig. 3 Fig. 4
Fig. 5
Do not install upside down
or on its side
Fig. 6
Water Pre-
Filter
Fig. 3 Fig. 4
Fig. 5
Do not install upside down
or on its side
Fig. 6
Water Pre-
Filter
