11
TheAUTOMATICcuttingstroke--enddeviceaswellasthedoublecontrolpush--buttonwithsinglepotentiometer(SESeries)orthethreepush--button
cuttingpowerselectorwithdoublepotentiometer(S100Series)arethemainfeaturesoftheclickingpresseswithturningarmSESeriesandS100Series.
Thisclickingpresscanbeusedtocutnaturalorsyntheticleather/hide,cloth,cardboard,etc.Nometallicmaterialsormaterialshavingmetalsinside,
as well as materials which could be prejudicial to operator’s health (i.e. asbestos) should be cut.
The machine must not be used in an explosive environment or to cut materials with hazard of explosion.
Themachinemustbeused byA SINGLEOPERATOR ata time.Therefore delimita securityarea aroundthe machinewith YELLOWpaint,
inside which only the operator can work. To define this area refer to the page stating machine overall dimensions.
Any reproduction of this catalogue is absolutely prohibited.
ATOM S.p.A. expect you may utilize the product at the best with your full satisfaction.
For any doubt or further advice, do not hesitate to contact ATOM S.p.A.

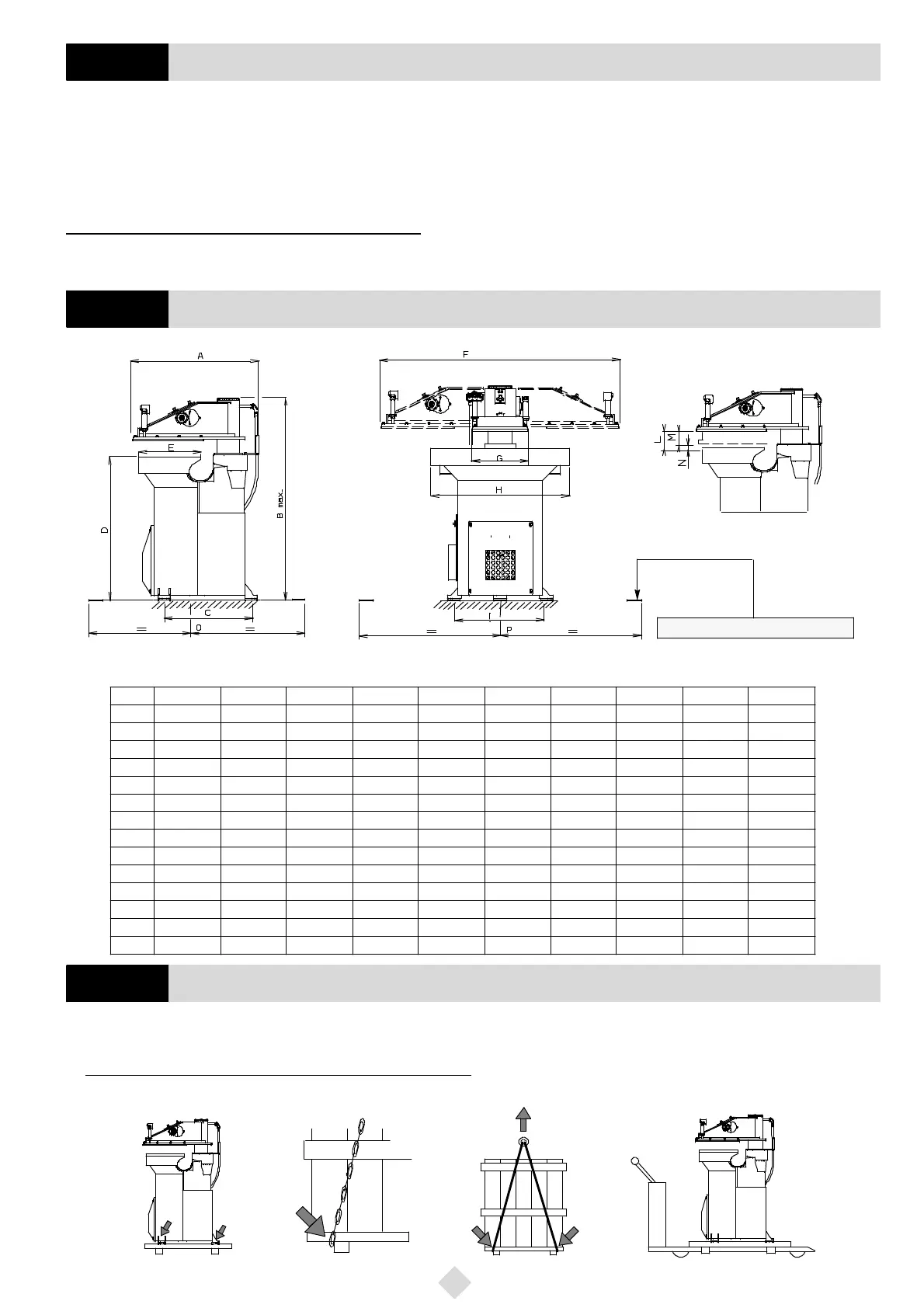

Fig. 1
Securityareaboundaries
S108 S116 S120C S120 S122 S124C S124 S125C S125 S125L
A 690 870 870 960 1030 960 1010 960 1030 1030
B 1330 1400 1400 1425 1425 1425 1425 1425 1425 1425
C 530 600 600 763 768 763 768 763 768 768
D 960 985 985 960 960 960 960 960 960 960
E 300 400 430 450 500 450 500 450 500 500
F 1100 1320 1320 1440 1580 1440 1550 1440 1580 1580
G 305 370 370 370 500 370 370 500 500 610
H 600 800 900 900 1200 900 1000 900 1000 1000
I 500 605 605 715 815 715 815 715 815 815
L 115(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5) 130(0/--5)
M 90 90 90 90 90 90 90 90 90 90
N 25 35 35 40 40 40 40 40 40 40
O 1100 1450 1450 1560 1600 1560 1560 1600 1600 1600
P 1500 1820 1820 2000 2200 2000 2000 2000 2150 2200
Themachinecanbedeliveredonpalletorpackedincrateorin seaworthycase.Onreceiptofmachine,provideforremovingtheeventualpacking
as well as the screws fixing it to the packing, as indicated in the picture (left Fig. 2).
Ifthemachineissuppliedpackedincrateorcase,useproperlifting systems(chains, ropes,etc.) andbridle thepacking (the weight is written
on) just in the points indicated in the picture (Fig. 2) to safely move.
It is also possible to use a fork lift truck, as shown below (right Fig. 2).
Fig. 2
122 Important notice
GB
123 Overall dimensions
GB
124 Machine transport and displacement
GB
