13

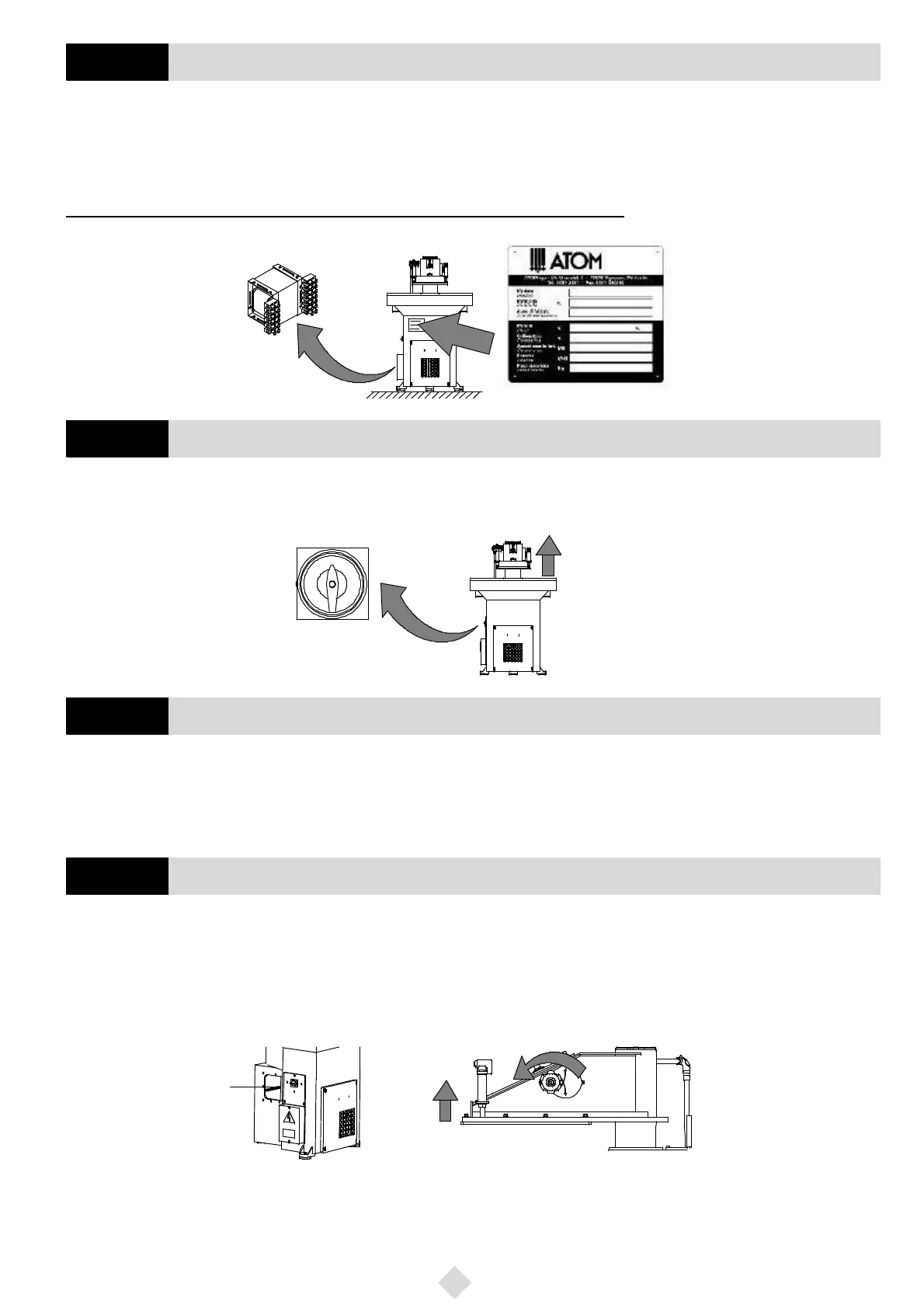

Forobviousreasonsofpossibleincompatibility,theconnectingplugisnotmountedonthemachineelectriccable.Thereforeitisnecessarytomount
the correct plug.
Beforeconnectingupthemachine,ensurethatthefactoryvoltagecorrespondstotheoneindicatedonthelabelfixedonthefrontpartofthemachine
base (Fig. 6).
If, for any reason, the voltage of the motor should be changed, it is imperative to adapt the transformer voltage to the desired one.
Carry out this operation with the machine completely disconnected from the electric network!
Fig. 6
The machine is usually delivered with the right quantity of oil and the motor connected to the requested voltage.
The rotation direction is correct if, when switching on the motor through the main switch, the arm moves upward (Fig. 7).
Fig. 7
WARNING: when the machine is equipped with a single phase motor it is VERY IMPORTANT that a
two--minutes break AT LEAST elapses between a switching on and the next one in order to avoid an
excessive winding overheating which may cause damages to the electric motor.
WARNING: in order to avoid serious damages to the winding of the electric motor WE SUGGEST YOU that
a three--seconds break AT LEAST elapses between a die cutting operation and the next one.
In this case, fill the tank through the suitable lateral opening, strictly following the below procedure:
-- Fill in the oil till reaching the maximum level red line (Fig. 8).
-- Switchonthemotorthroughthemainswitch,andimmediatelycheckthepumprotationdirection,asdescribedintheprevious paragraph.Turn
the arm adjusting handwheel counter clockwise, till it stops: in this way the arm will move upward to its limit (Fig. 8).
Fig. 8
oil level
--Placeawoodenpieceoranotherresistantspacer2cmthickbetweenthecuttingboardandtheturningarmandrunthemachineforafewminutes
bypressingsimultaneously thepush--buttonontherighthandleandoneofthethreepush--buttonsontheleft handle.Carry outthis operationin
ordertoexhaustalltheairfromthecylinderpipes.Removethespacerandbeingsurethatnothingisontheworkingsurface,slowlyturnthehand-
wheelclockwisetillthearmis1cmfromthecuttingtable(Fig. 9).Atthispointchecktheoillevelinthetankandifnecessaryre--fillit,tillreaching
the maximum level red line (right Fig. 9). Only in this way you will be sure that there is the exact quantity of oil in the tank.
128 Machine connection
GB
129 Machine setting up (filled with oil)
GB
130 SINGLE PHASE MOTOR
GB
131 Machine setting up (delivered without oil)
GB
