PARTS REQUIRED:
12 pcs - H4 Phillips Washer Head Screw 3 pcs - P5 Playfield
6 pcs - H5 Phillips Flat Head Screw Support Brace
STEP 3:
Center and attach P3 Playfield in the cabinet using pre-drilled pilot holes with H4 Screws as shown in FIGURE 3.
Place each P5 Playfield Support Brace and attach using pre-drilled pilot holes with H5 Screws as shown in
FIGURE 3.
Important Note: Please be sure to install H4 screws and H5 screws
exactly as per FIGURE 3. Screws must be screwed straight down.

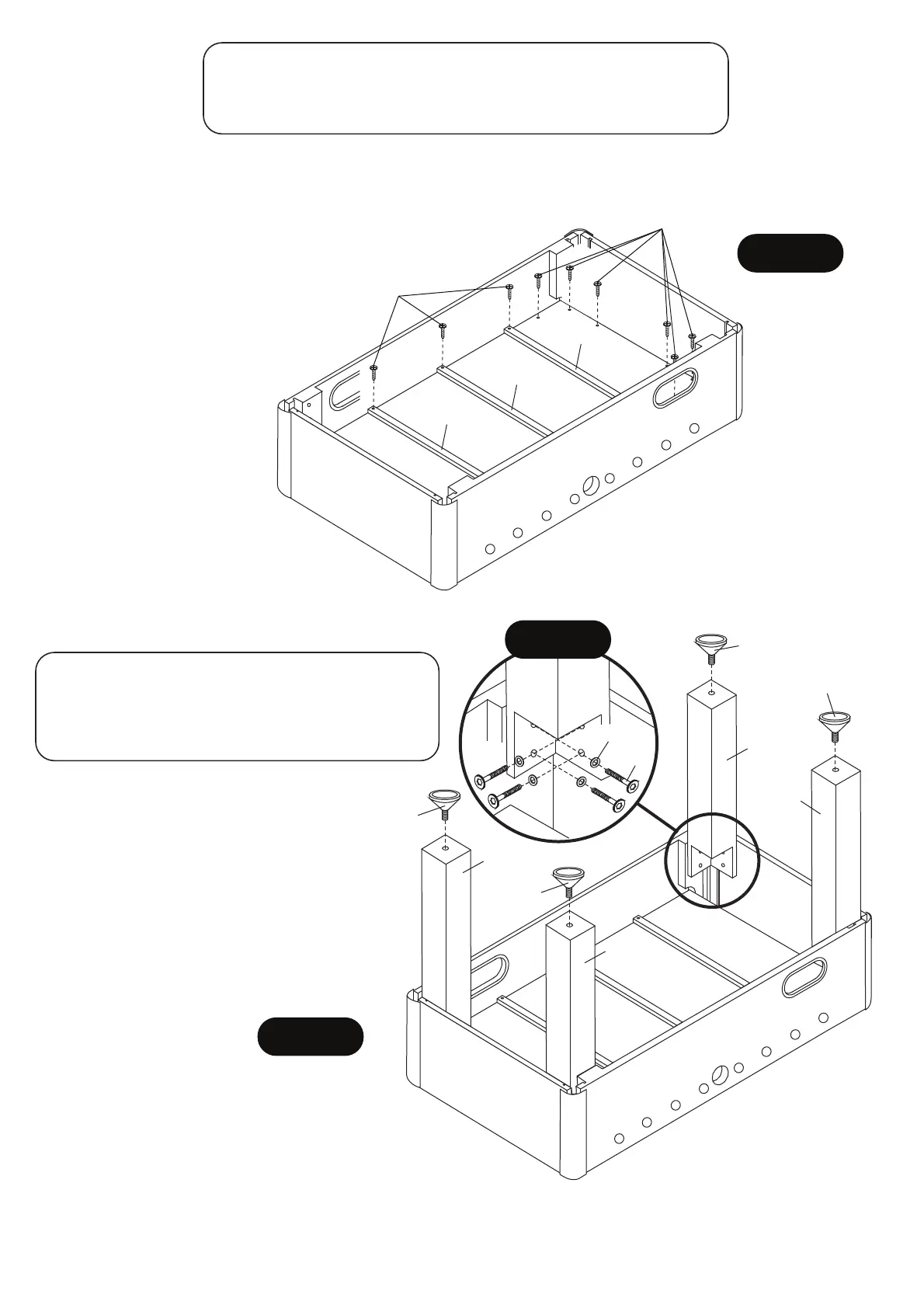

FIGURE 3
H5
H4
P5
P5
P5
PARTS REQUIRED:
16 pcs - H2 Allen Head Bolt 4 pcs - P4 Leg
16 pcs - H3 Flat Washer 4 pcs - P10 Leg Leveler
1 pc - T1 Allen Wrench
STEP 4:
Attach P4 Legs using H2 Allen Head
Bolts with H3 Flat Washers as shown
in FIGURE 4 & DETAIL B.
Use T1 Allen Wrench to tighten H1 Bolts.
Thread P10 Leg Levelers onto each P4 Leg
as shown in FIGURE 4.
FIGURE 4
P10
P10
P10
P10
P4
P4
P4
P4
DETAIL B
H2
H3
To Next Page
