Atomic G01889W - Installing Ball Return System; Step 5: Installing Goal Boxes and Ball Return Tubes

©
2012 Escalade Sports
For Customer Service Call 1-888-996-2729
7
All Rights Reserved.
PARTS REQUIRED:
12 pcs - H7 Phillips Round Head Screw 2 pcs - P7 Ball Catcher
2 pcs - P6 Goal Box 2 pcs - P8 Ball Return Tube
STEP 5:
Center P6 Goal Box over the opening in the end panel and attach using pre-drilled pilot holes with H7 Screws as
shown in FIGURE 5.
Center P7 Ball Catcher over the opening in the side panel and attach using pre-drilled pilot holes with H7 Screws
as shown in FIGURE 5.
Make sure the round opening for P8 Ball Return Tube is towards the floor (when table is turned upright).
Repeat for both ends of the table.
Attach P8 Ball Return Tubes between P6 Goal Box and P7 Ball Catcher as shown in FIGURE 5.

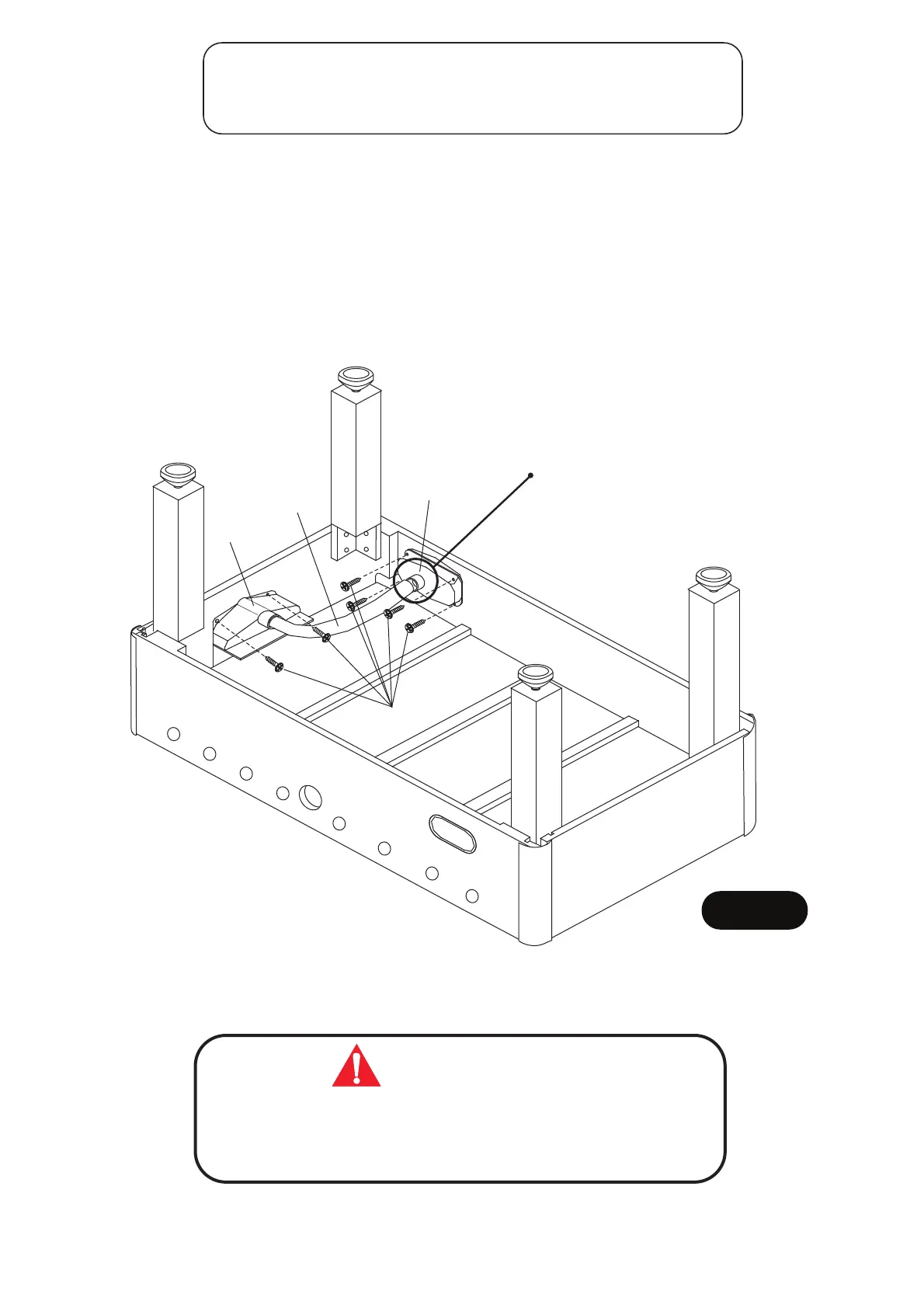

FIGURE 5
H7
NOTE: Make sure the round opening
for the ball return tube is towards the
floor (when table is turned upright)
P6
P7
P8
THIS STEP REQUIRES FOUR OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.
CAUTION:
