ring the Co-Pilot

The Co-Pilot has several connections that need to be made in order for it to function properly.

There are several wires which are optional but still included to give the Co-Pilot a more versatile

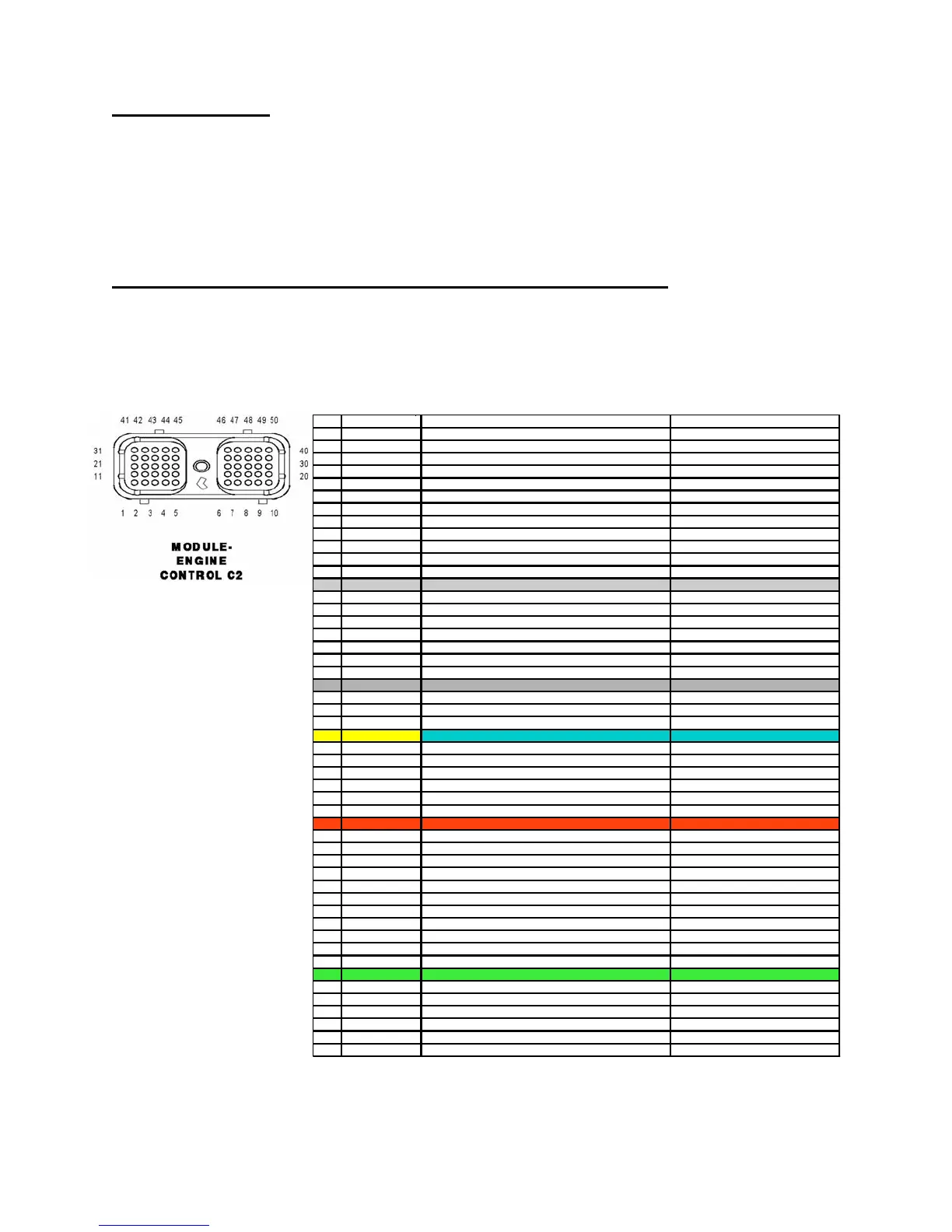

use depending on your trucks current setup. Use the diagram below as a reference when

installing your Co-Pilot to avoid any conflicts or confusion.

-Pink Wire- Throttle Position Sensor (TPS) – PIN #12 Recommended

Reason For use: This wire give the Co-Pilot the ability to lock the torque converter on

deceleration. This gives the vehicle an engine-braking effect. Recommended. OPTIONAL

Where to connect it:

CAV Circuit Function Co-Pilot Connection

1 - -

2 - - -

3 K615 18VT/WT INLET AIR TEMPERATURE SENSOR -

4 - - -

5 K176 18BR/OR INTAKE AIR HEATER NO.2 RELAY CONTROL -

6 K174 18BR/YL INTAKE AIR HEATER NO.1 RELAY CONTROL -

7 V32 18VT/YL SPEED CONTROL SUPPLY -

8 - - -

9 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH (T41) -

10 K161 18BR/LB FAN SPEED SENSOR -

11 B22 18DG/YL VEHICLE SPEED SIGNAL NO.1 -

12 G6 18 VT/GY OIL PRESSURE SENSOR -

13 T6 18DG TOW/HAUL OVER DRIVE CANCEL SWITCH Tap White Co-Pilot Wire Pin 5

14 T118 18 DG GOVERNER PRESSURE SOLENOID CONTROL -

15 T9 18DG/TN 3-4 SOLENOID CONTROL -

16 D21 18WT/BR SCI TRANSMIT(ECM) -

17 - - -

18 T38 18YL/BR GOVERNOR PRESSURE SENSOR SIGNAL -

19 D20 18WT/LG SCI RECIEVE(ECM) -

20 A209 16RD FUSED BATTERY(+)

21 Z902 16BK GROUND Tap Black Co-pilot Wire Pin 9

22 - - -

23 F856 18YL/PK 5 VOLT SUPPLY

24 K900 18DB/DG SENSOR GROUND -

25 T75 18YL/LB TORQUE CONVERTER CLUTCH SOLENOID Connect Co-Pilot Pin 10 and Pin 11

26 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL -

27 - - -

28 D25 18WT.VT PCI BUS -

29 T54 18DG/OR TRANSMISSION TEMERATURE SENSOR SIGNAL -

30 A209 16RD FUSED BATTERY(+) -

31 T55 18YL/DB TRANSMISSION CONTROL RELAY CONTROL -

32 F202 18PK/GY FUESED IGNITION SWITCH OUTPUT(RUN-START) Tap RED Co-Pilot Wire Pin 1

33 K854 5 VOLT SUPPLY -

34 V36 18VT/YL S/C VACUUM CONTROL -

35 K616 18BR/YL INLET AIR PRESSURE SENSE -

36 V32 18VT/YL SPEED CONTROL SUPPLY -

37 B29 18DG/WT BRAKE SWITCH SIGNAL -

38 - - -

39 - - -

40 A209 16RD FUSED BATTERY(+) -

41 C13 18LB/OR A/C CLUTCH RELAY CONTROL -

42 - - -

43 K160 18BR/OR PARK LOCKOUT SOLENOID -

44 T14 18DG/BR OUTPUT SPEED SENSOR Tap Green Co-Pilot Pin 17

45 T13 18DG/VT SPEED SENSOR GROUND -

46 V37 18VT S/C SWITCH NO.1 SIGNAL -

47 K25 18DB/VT BATTERY TEMP SIGNAL -

48 K400 18VR/VT APPS NO.2 RETURN -

49 Z902 16BK GROUND -

50 Z902 16BK GROUND -
