Fo
r 2004 models: Locate the APPS, it is under a black plastic cover, on the driver’s side
of the engine, in front of the intake manifold. Tap the Brown w/ White wire in the APPS
Plug wire loom.
APPS
PLUG

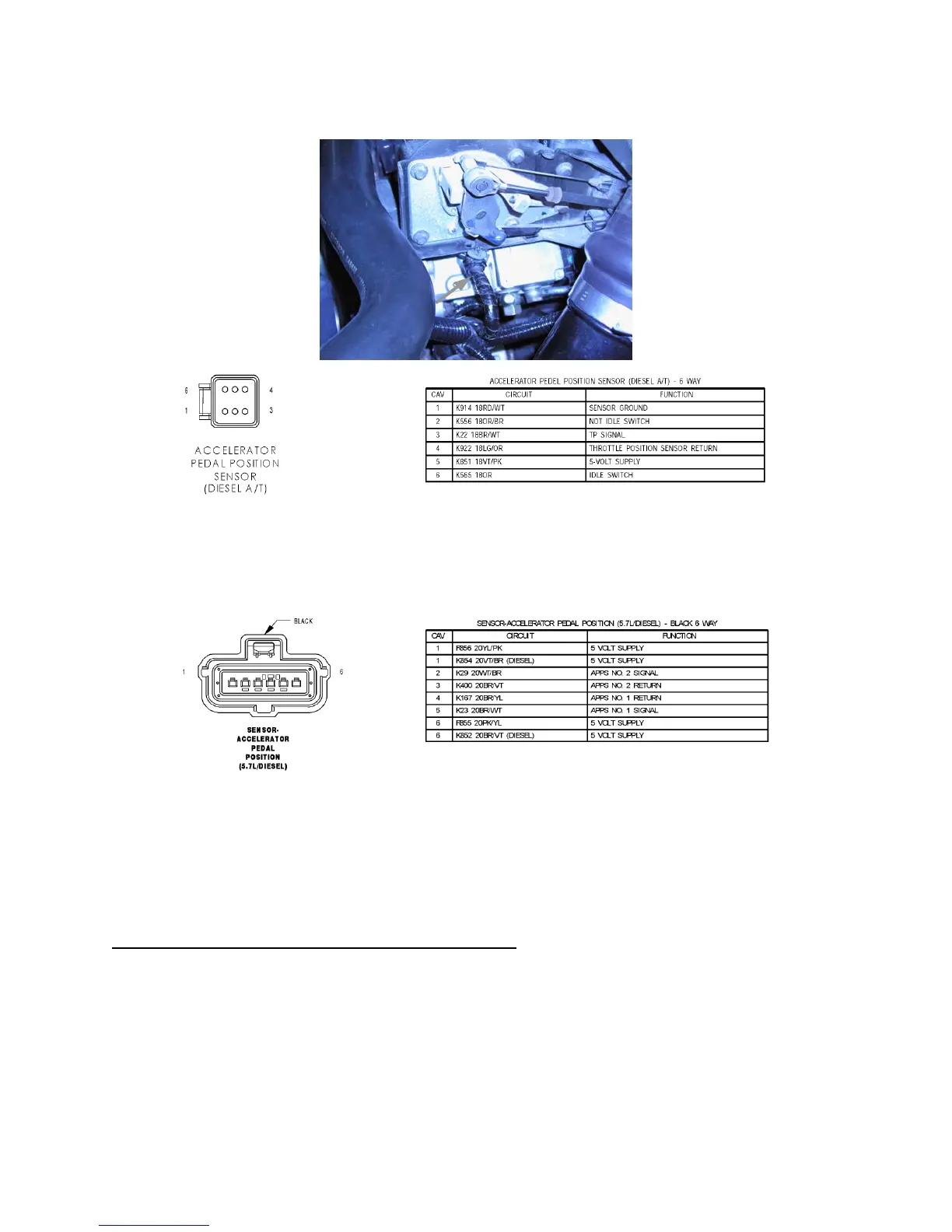

For 2005 models: Connect at the TPS connector located at the top of the accelerator
pedal arm. This is a six wire connector, in the fifth terminal there is a brown with white
tracer wire, tap this wire.
How to connect it: Strip back approximately ½” of the insulation from the brown with white
tracer wire and solder the Co-Pilot’s Pink wire to the Brown with white tracer wire.
Protect this connection.
-Red Wire- +12V Power - Co-Pilot Harness PIN #1
Reasons for use: The red wire supply’s key on power to the Co-Pilot so it can turn on and be
functional. NOT OPTIONAL
Where to connect it: On the C2 connector of the PCM which is located on the driver’s side of
the engine block. There are two connectors here, a 60-pin C1 and a 50-pin C2. The power (Pink
w/ gray) wire is on the connector that is closer to the firewall in pin 32.
