2.7. Aggregatmotor M1

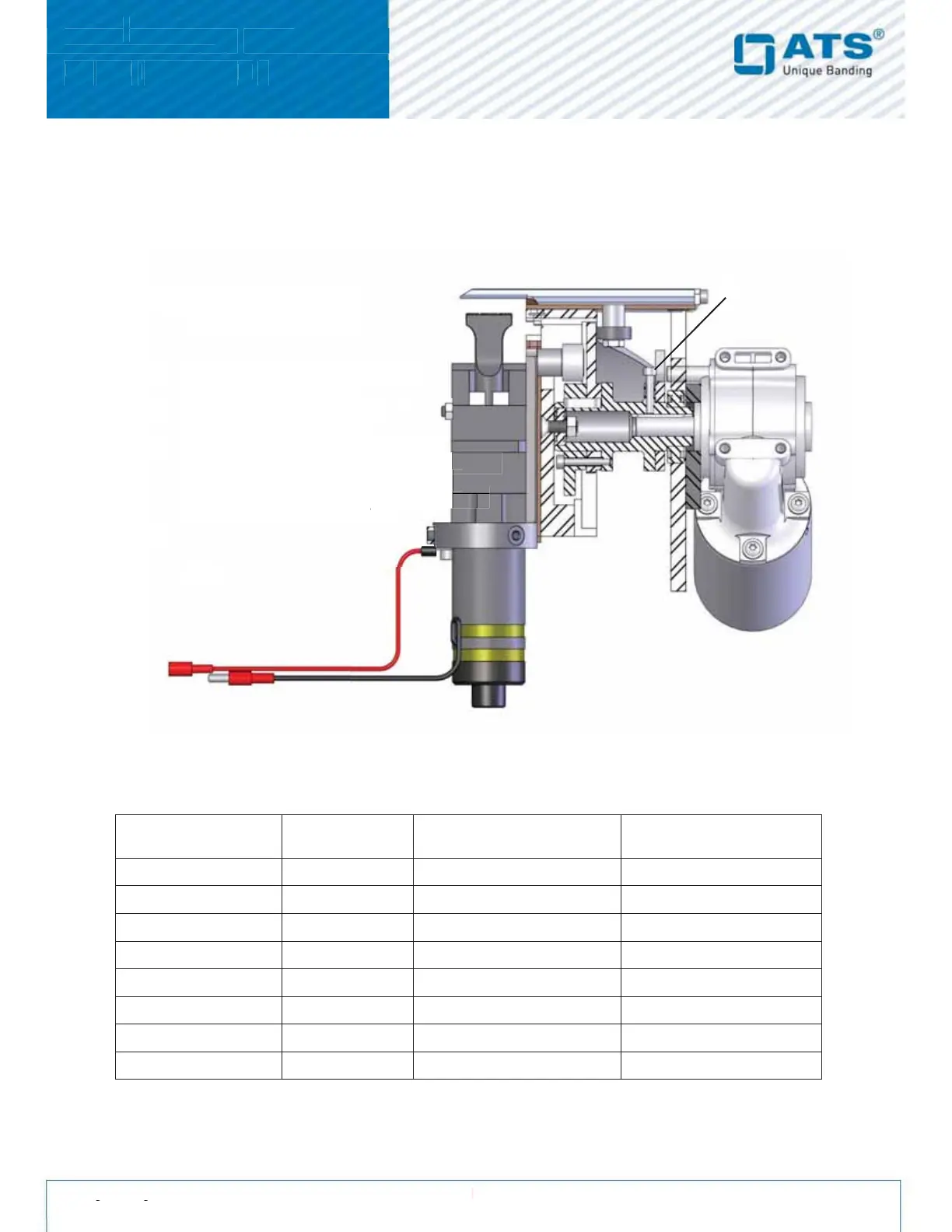

The motor M1 unit drives a shaft which activates the the cam discs and plates to bring the aggregate into the
different positions.
2.7.2. M1 gear ratio
Machine
Band width
Gear ratio
Replacment part
Number
US-2000 AD
15
i = 38:1
ATS-244064
US-2000 AD
20
i = 38:1
ATS-244064
US-2000 AD
30
i = 38:1
ATS-244064
US-2000 AD
50
i = 38:1
ATS-244064
US-2000 AD
60
i = 50:1
ATS-244164
US-2000 LD
20
i = 50:1
ATS-244164
US-2000 LD
30
i = 50:1
ATS-244164
US-2000 LD
50
i = 50:1
ATS-244164
2.7.1.
Replacing the
a
ggregatmotor
r
1.
R
emove the locking screw (1
)
on the
key of the motor axle.
2.
Remove the fixing screws on the
motor unit (motor plate).
3.
Pull the motor and
the key out of the
drive shaft. If the motor does not come
off the axle
easily, use the threads in
the motor plate, to push the motor off
the unit by using t
wo M5 screw
w
s.
4.
To mount the motor, follow the
same procedure but in reverse
order.
(1)
